System Map: Front, Left, Right & Rear Views (Model B)

Mini DisplayPorts
External displays can be config-
ured either using the Intel HD
Graphics Control Panel or by
the Project menu (press
or Fn + F7).
If you wish to configure an exter-
nal display connected to Mini Dis-
5
playPort 2 you must use
Project menu to control the dis-
play configuration.
USB 3.1 Gen 2
Note that when a single USB de-
vice is plugged in to a USB 3.1
Gen 2 port the data transfer
speed will be 10Gbps, however
when two devices are plugged in
to both USB 3.1 Gen 2 port ports,
this bandwidth will be shared be-
tween the ports.
Overheating
To prevent your computer from
overheating make sure nothing
blocks any vent while the comput-
er is in use.
1
+ P
12
11
10

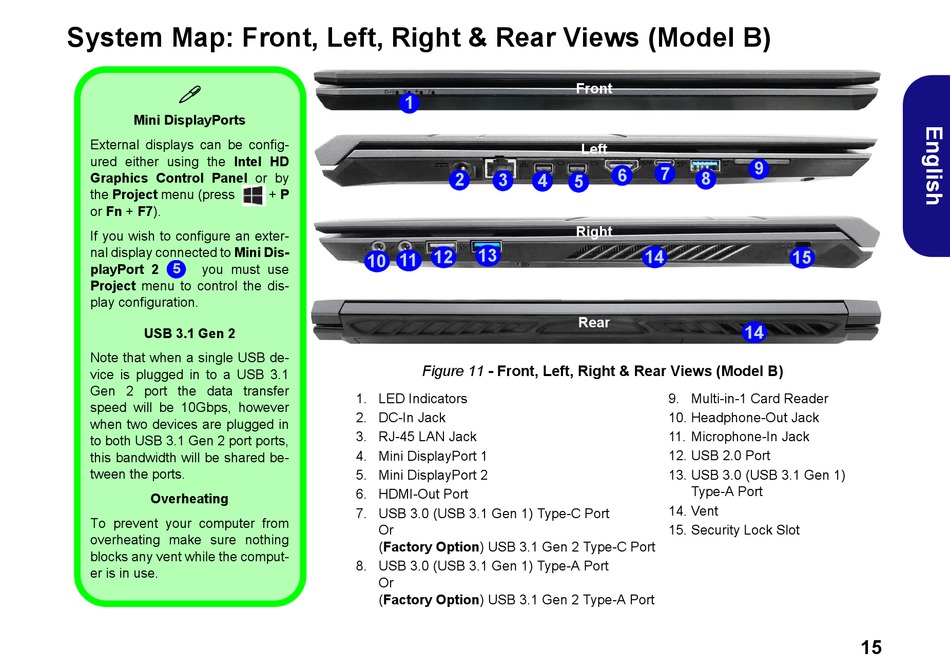

Figure 11 - Front, Left, Right & Rear Views (Model B)
1. LED Indicators
2. DC-In Jack
3. RJ-45 LAN Jack
4. Mini DisplayPort 1
5. Mini DisplayPort 2
6. HDMI-Out Port
7. USB 3.0 (USB 3.1 Gen 1) Type-C Port
Or
(Factory Option) USB 3.1 Gen 2 Type-C Port
8. USB 3.0 (USB 3.1 Gen 1) Type-A Port
Or
(Factory Option) USB 3.1 Gen 2 Type-A Port
Front
Left
6
2 3
4
5
Right
13
Rear
9
7
8
14
15
14
9. Multi-in-1 Card Reader
10. Headphone-Out Jack
11. Microphone-In Jack
12. USB 2.0 Port
13. USB 3.0 (USB 3.1 Gen 1)
Type-A Port
14. Vent
15. Security Lock Slot
