System Map: Front, Left, Right, Rear & Bottom Views - Clevo W840SN Ausführliches Benutzerhandbuch

System Map: Front, Left, Right, Rear & Bottom Views
1
2
4
3
5
13
14
12
Front
Left
5
Right
6
8
7
7
9
Rear
11
11
5
5
12
5
5
9
10
The CPU is not a user serviceable part. Accessing
the CPU in any way may violate your warranty.
To prevent your computer from overheating make
14
sure nothing blocks any vent while the computer is
in use.

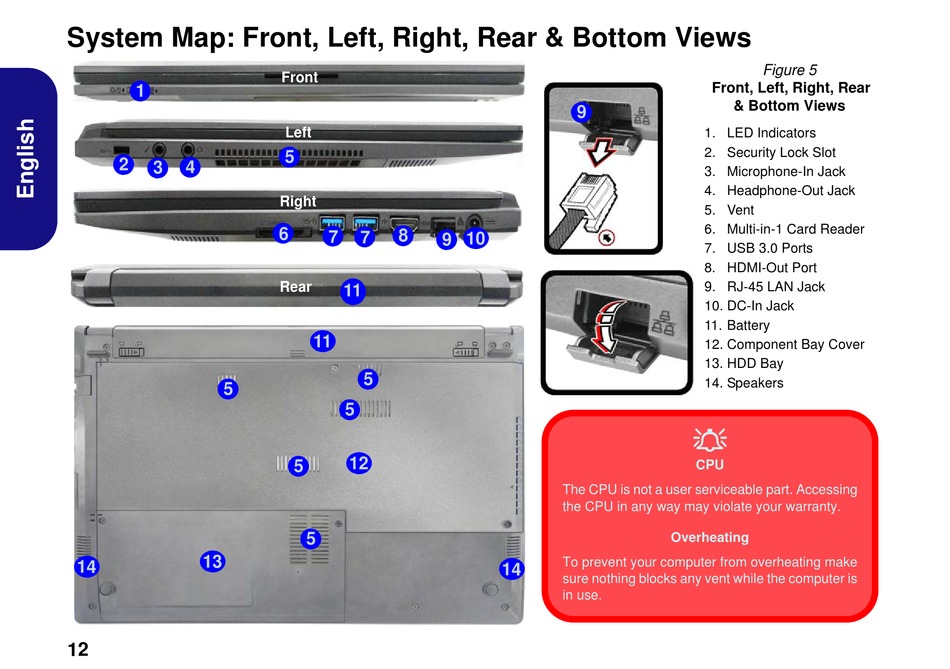

Figure 5
Front, Left, Right, Rear
& Bottom Views
1. LED Indicators
2. Security Lock Slot
3. Microphone-In Jack
4. Headphone-Out Jack
5. Vent
6. Multi-in-1 Card Reader
7. USB 3.0 Ports
8. HDMI-Out Port
9. RJ-45 LAN Jack
10. DC-In Jack
11. Battery
12. Component Bay Cover
13. HDD Bay
14. Speakers

CPU
Overheating
