Venjakob sentino Montagehinweis Seite 3

Assembly information for hanging cabinets
Define the position of the unit on the wall. Mark the top and side edge.
1.

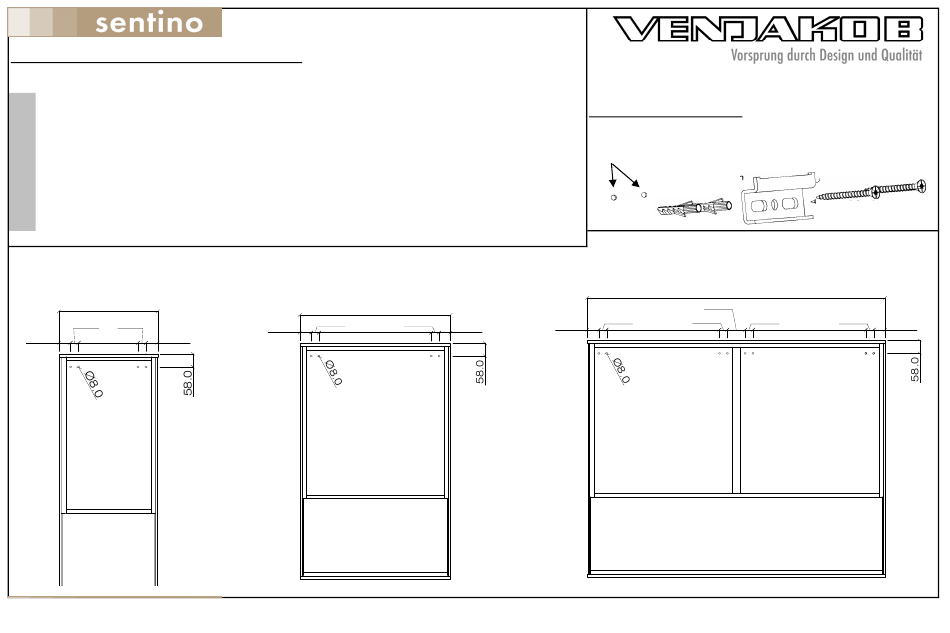

Mark the drilling holes as shown in the below drawing. Drill the holes with a 8mm drilling bit.
2.
Insert the anchor bolts (8x40) and screw on the bearing plates with 2 screws (5x60).
3.
4. Hang up the cabinet on the bearing plates. If necessary adjust with the adjusting screws on the
hanging fitting.
5. Close the holes in the back with the plastic covers.
39 cm wide hanging cabinet
top edge hanging cabinet
395.0
32.0 32.0
47.0 237.0 47.0
max. load
30 kg
62 cm wide hanging cabinet
top edge hanging cabinet
619.0
32.0 32.0
47.0 461.0
Belastbarkeit
max. load
max. 40 kg
30 kg
Fixing of the bearing plates
2 drilling holes
Ø 8 mm
122 cm wide hanging cabinet
32.0
47.0
47.0
1 piece
bearing plate
2 piece
anchor bolt 8 x 40
top edge hanging cabinet
1217.0
73.0
32.0 32.0
461.0 461.0
max. load
60 kg
2 piece
screws 5 x 60
32.0
47.0
