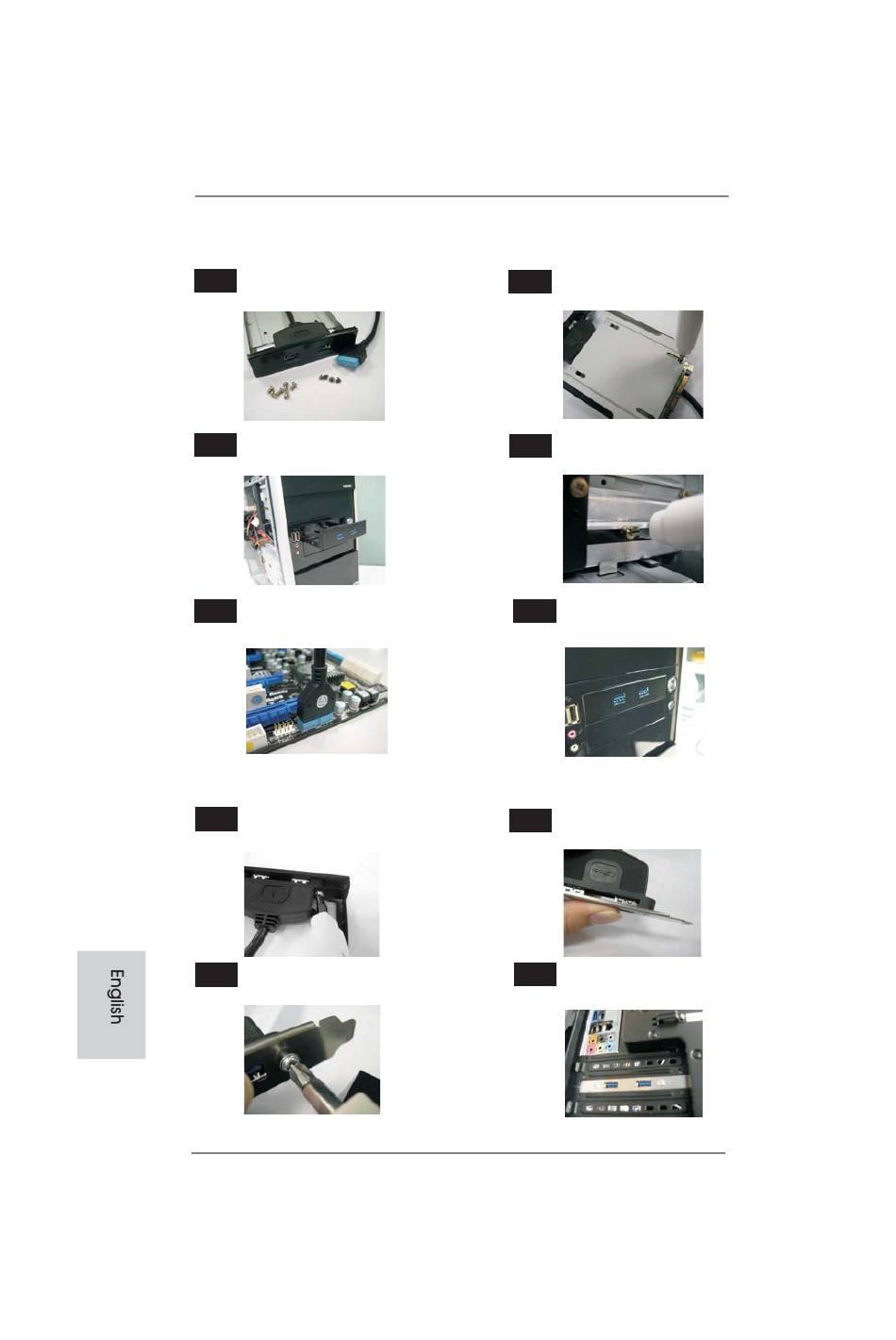

The Installation Guide of Front USB 3.0 Panel
Step 1
Prepare the bundled Front USB 3.0 Panel, four
HDD screws, and six chassis screws.
Step 3
Intall the Front USB 3.0 Panel into the 2.5"
drive bay of the chassis.
Step 5
Plug the Front USB 3.0 cable into the USB 3.0
header (USB3_5_6) on the motherboard.
The Installation Guide of Rear USB 3.0 Bracket
Step 1
Unscrew the two screws from the Front USB 3.0
Panel.
Step 3
Screw the two screws into the rear USB 3.0
bracket.
44
ASRock Z68 Extreme7 Gen3 Motherboard
Screw the 2.5" HDD/SSD to the Front
Step 2
USB 3.0 Panel with four HDD screws.
Screw the Front USB 3.0 Panel to the
Step 4
drive bay with six chassis screws.
Step 6
The Front USB 3.0 Panel is ready to use.
Step 2
Put the USB 3.0 cable and the rear
USB 3.0 bracket together.
Step 4
Put the rear USB 3.0 bracket into the
chassis.
