Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documentation
by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identifi ca-
tion or explanation and to the owners' benefi t, without intent to infringe.
Disclaimer:
Specifi cations and information contained in this guide are furnished for informational use
only and subject to change without notice, and should not be constructed as a commit-
ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may
appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or condi-
tions of merchantability or fi tness for a particular purpose. In no event shall ASRock, its
directors, offi cers, employees, or agents be liable for any indirect, special, incidental, or
consequential damages (including damages for loss of profi ts, loss of business, loss of
data, interruption of business and the like), even if ASRock has been advised of the pos-
sibility of such damages arising from any defect or error in the guide or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate"
The terms HDMI™ and HDMI High-Defi nition Multimedia Interface, and the HDMI logo
are trademarks or registered trademarks of HDMI Licensing LLC in the United States and
other countries.
1

Werbung

Kapitel

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für ASROCK Z68 Pro3-M

  • Seite 1 ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or condi- tions of merchantability or fi...

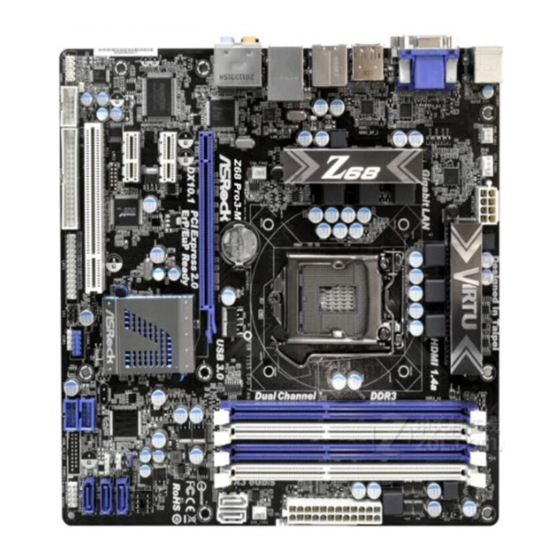

  • Seite 2: Motherboard-Layout

    SATA2 Connector (SATA2_3, Blue) PCI Express 2.0 x1 Slot (PCIE2, White) SATA2 Connector (SATA2_4, Blue) PCI Express 2.0 x16 Slot (PCIE1, Blue) System Panel Header (PANEL1, White) Chassis Fan Connector (CHA_FAN2) Chassis Speaker Header (SPEAKER 1, White) ASRock Z68 Pro3-M Motherboard...
  • Seite 3 See the table below for connection details in accordance with the type of speaker you use. TABLE for Audio Output Connection Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or (No. 10) (No. 7) (No. 6) Side Speaker (No. 9) ASRock Z68 Pro3-M Motherboard...
  • Seite 4 “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. ASRock Z68 Pro3-M Motherboard...
  • Seite 5: Package Contents

    In case any modifi cations of this manual occur, the updated version will be available on ASRock website without further notice. You may fi nd the latest VGA cards and CPU support lists on ASRock website as well.
  • Seite 6 (Compliant HDMI monitor is required) (see CAUTION 7) - Supports Blu-ray Stereoscopic 3D with HDMI 1.4a - Supports HDCP function with DVI, HDMI and DisplayPort ports - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI, HDMI and DisplayPort ports ASRock Z68 Pro3-M Motherboard...
  • Seite 7 - 1 x CIR header - 1 x Print port header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x Power LED header - CPU/Chassis/Power FAN connector - 24 pin ATX power connector ASRock Z68 Pro3-M Motherboard...
  • Seite 8 / Vista 64-bit / XP / XP 64-bit compliant Certifi cations - FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required) (see CAUTION 18) * For detailed product information, please visit our website: http://www.asrock.com ASRock Z68 Pro3-M Motherboard...
  • Seite 9 6-channel, and 8-channel modes. Please check the table on page 3 for proper connection. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to fi ne-tune different system functions in a user-friendly interface, which is including Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system.
  • Seite 10 Please visit our website for the operation procedures of ASRock Extreme Tuning Utility (AXTU). ASRock website: http://www.asrock.com 10. ASRock Instant Flash is a BIOS fl ash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS ®...
  • Seite 11 Intel’s suggestion, the EuP ready power supply must meet the standard of 5v standby power effi ciency is higher than 50% under 100 mA current consumption. For EuP ready power supply selection, we recommend you checking with the power supply manufacturer for more details. ASRock Z68 Pro3-M Motherboard...
  • Seite 12: Cpu Installation

    CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found. Other- wise, the CPU will be seriously damaged. ASRock Z68 Pro3-M Motherboard...
  • Seite 13 Pin1 Pin1 alignment key 1155-Pin Socket orientation key notch 1155-Pin CPU For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket. ASRock Z68 Pro3-M Motherboard...
  • Seite 14 Please be noticed that this motherboard supports Combo Cooler Option (C.C.O.), which provides the fl exible option to adopt three dif- ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156. The white throughholes are for Socket LGA 1155/1156 CPU fan. ASRock Z68 Pro3-M Motherboard...
  • Seite 15 It is not allowed to install a DDR or DDR2 memory module into DDR3 slot; otherwise, this motherboard and DIMM may be dam- aged. Some DDR3 1GB double-sided DIMMs with 16 chips may not work on this motherboard. It is not recommended to install them on this motherboard. ASRock Z68 Pro3-M Motherboard...
  • Seite 16: Installing A Dimm

    DIMM if you force the DIMM into the slot at incorrect orientation. Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated. ASRock Z68 Pro3-M Motherboard...
  • Seite 17: Installing An Expansion Card

    Align the card connector with the slot and press fi rmly until the card is completely seated on the slot. Step 5. Fasten the card to the chassis with screws. Step 6. Replace the system cover. ASRock Z68 Pro3-M Motherboard...
  • Seite 18 If you haven’t installed onboard VGA driver yet, please install onboard VGA driver from our support CD to your system and restart your computer. D-Sub, DVI-D, HDMI and DisplayPort monitors cannot be enabled at the same time. You can only choose two of them. ASRock Z68 Pro3-M Motherboard...
  • Seite 19: For Windows

    F. Set the “Screen Resolution” and “Color Quality” as appropriate for the second monitor. Click “Apply” or “OK” to apply these new values. G. Repeat steps C through E for the diaplay icon identifi ed by the number one, two, three and four. ASRock Z68 Pro3-M Motherboard...
  • Seite 20 HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV or LCD monitor you purchase is compatible. ASRock Z68 Pro3-M Motherboard...
  • Seite 21 2.6 ASRock Smart Remote Installation Guide ASRock Smart Remote is only used for ASRock motherboard with CIR header. Please refer to below procedures for the quick installation and usage of ASRock Smart Remote. Step1. Find the CIR header located next to the USB 2.0 header on ASRock...
  • Seite 22 The Multi-Angle CIR Receiver does not support Hot-Plug function. Please install it before you boot the system. * ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to ASRock website for the motherboard support list: http://www.asrock.com...
  • Seite 23 fi rst, and then shut it down before you do the clear-CMOS ac- tion. Please be noted that the password, date, time, user default profi le, 1394 GUID and MAC address will be cleared only if the CMOS battery is removed. ASRock Z68 Pro3-M Motherboard...
  • Seite 24 Serial ATA (SATA) Either end of the SATA data Data Cable cable can be connected to the SATA / SATAII / SATA3 hard (Optional) disk or the SATAII / SATA3 connector on this motherboard. ASRock Z68 Pro3-M Motherboard...
  • Seite 25 This is an interface for print AFD# ERROR# port cable that allows (25-pin LPT1) PINIT# SLIN# convenient connection of printer (see p.2 No. 25) SPD7 devices. SPD6 ACK# SPD5 BUSY SPD4 SPD3 SLCT SPD2 SPD1 SPD0 STB# ASRock Z68 Pro3-M Motherboard...
  • Seite 26 The LED keeps blinking when the sys- tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5). ASRock Z68 Pro3-M Motherboard...
  • Seite 27 CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3. Pin 1-3 Connected 3-Pin Fan Installation ASRock Z68 Pro3-M Motherboard...
  • Seite 28 SPDIF audio output to HDMI (2-pin HDMI_SPDIF1) VGA card, allows the system to (see p.2 No. 29) SPDIFOUT connect HDMI Digital TV/ projector/LCD devices. Please connect the HDMI_SPDIF connector of HDMI VGA card to this header. ASRock Z68 Pro3-M Motherboard...
  • Seite 29: Installing Windows

    STEP 1: Set up UEFI. A. Enter UEFI SETUP UTILITY Advanced screen SATA Confi guration. B. Set the option “SATA Mode” to [IDE]. ® STEP 2: Install Windows XP / XP 64-bit OS on your system. ASRock Z68 Pro3-M Motherboard...
  • Seite 30 A. Enter UEFI SETUP UTILITY Advanced screen SATA Confi guration. B. Set the option “SATA Mode” to [AHCI]. ® STEP 2: Install Windows 7 / 7 64-bit / Vista / Vista 64-bit OS on your system. ASRock Z68 Pro3-M Motherboard...
  • Seite 31 It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the fi le “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus. ASRock Z68 Pro3-M Motherboard...
  • Seite 32: Einführung

    1. Einführung Wir danken Ihnen für den Kauf des ASRock Z68 Pro3-M Motherboard, ein zuver- lässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der Verpflichtung von ASRock zu Qualität und Halbarkeit. Diese Schnel- linstallationsanleitung führt in das Motherboard und die schrittweise Installation...
  • Seite 33: Spezifikationen

    - Unterstützt DisplayPort mit einer maximalen Aufl ösung von 2560 x 1600 bei 60 Hz - Unterstützt Auto Lip Sync, Deep Color (12bpc), xvYCC und HBR (High Bit Rate-Audio) mit HDMI (kompatibler HDMI- Bildschirm erforderlich) (siehe VORSICHT 7) ASRock Z68 Pro3-M Motherboard...
  • Seite 34: Rückseite

    (RAID 0, RAID 1, RAID 10, RAID 5, Intel Rapid Storage und Intel Smart Response-Technologie), NCQ-, AHCI-und „Hot Plug“ (Hot-Plugging)-Funktionen - 2 x SATA3 6,0 GB/s-Anschlüsse - 1 x FDD-Anschlüsse - 1 x Infrarot-Modul-Header - 1 x Consumer Infrared-Modul-Header ASRock Z68 Pro3-M Motherboard...
  • Seite 35 (Testversion), ASRock Software Suite (CyberLink DVD Suite und Creative Sound Blaster X-Fi MB) (OEM- und Testversion) Einzigartige - ASRock Extreme Tuning Utility (AXTU) (siehe VORSICHT 9) Eigenschaft - Sofortstart - ASRock Instant Flash (siehe VORSICHT 10) - ASRock APP Charger (siehe VORSICHT 11)
  • Seite 36: Zertifizierungen

    7 64-Bit / 7 unter- stützt. Der Deep Color-Modus wird nur aktiviert, wenn der Bildschirm ® 12bpc in EDID unterstützt. HBR wird unter Windows 7 64 Bit / 7 / Vista 64 Bit / Vista unterstützt. ASRock Z68 Pro3-M Motherboard...
  • Seite 37 Installieren Sie einfach den ASRock APP Charger-Treiber; dadurch lädt sich Ihr iPhone wesentlich schneller über einen Computer auf – genaugenommen bis zu 40 % schneller als zuvor. Der ASRock APP Charger ermöglicht Ihnen die schnelle Aufl adung mehrerer Apple-Geräte gleichzeitig;...
  • Seite 38 -Betriebssystemen 7 / 7, 64 Bit / Vista / Vista 64 Bit und dem Internet Explorer ab Version 8 nutzen. ASRock-Website: http:// www.asrock.com/Feature/SmartView/index.asp 13. ASRocks XFast USB dient der Steigerung der Leistungsfähigkeit Ihrer USB-Speichergeräte. Die Leistung kann je nach Eigenschaften des Gerätes variieren.
  • Seite 39: Sicherheitshinweise Vor Der Montage

    Bevor Sie die 1155-Pin CPU in den Sockel sitzen, prüfen Sie bitte, ob die CPU-Oberfl äche sauber ist und keine der Kontakte verbogen sind. Setzen Sie die CPU nicht mit Gewalt in den Sockel, dies kann die CPU schwer beschädigen. ASRock Z68 Pro3-M Motherboard...
  • Seite 40 Schritt 3-2. Halten Sie das Teil mit dem IHS (Integrated Heat Sink – integ- rierter Kühlkörper) nach oben. Suchen Sie Pin 1 und die zwei Orientierungseinkerbungen. Ausrichtungsmarkierung Orientierungskerbe Pin1 Pin1 Ausrichtungsmarkierung Orientierungskerbe 1155-Pin Sockel 1155-Pin CPU ASRock Z68 Pro3-M Motherboard...
  • Seite 41 Schritt 4. Sockel schließen: Schritt 4-1. Drehen Sie die Ladeplatte auf den Kühlkörper (IHS). Schritt 4-2. Drücken Sie leicht auf die Lade- platte und schließen Sie den Ladehebel. Schritt 4-3. Sichern Sie Ladehebel und Ladeplatte mithilfe des Hebelver- schlusses. ASRock Z68 Pro3-M Motherboard...
  • Seite 42: Installation Des Cpu-Lüfters Und Kühlkörpers

    Beachten Sie bitte, dass dieses Motherboard die Combo-Kühlerop- tion unterstützt, die eine fl exible Möglichkeit zur Aufnahme von drei verschiedenen CPU-Kühlertypen, Socket LGA 775, LGA 1155 und LGA 1156, bietet. Das weiße Durchgangsloch ist für den CPU-Lüfter im Socket LGA 1155/1156 vorgesehen. ASRock Z68 Pro3-M Motherboard...
  • Seite 43: Installation Der Speichermodule (Dimm)

    2.3 Installation der Speichermodule (DIMM) Die Motherboards Z68 Pro3-M bieten vier 240-pol. DDR3 (Double Data Rate 3) DIMM-Steckplätze und unterstützen die Dual-Kanal-Speichertechnologie. Für die Dual-Kanalkonfi guration dürfen Sie nur identische (gleiche Marke, Geschwindigkeit, Größe und gleicher Chiptyp) DDR3 DIMM-Paare in den Steckplätzen gleicher Farbe installieren.
  • Seite 44: Einsetzen Eines Dimm-Moduls

    Steckplätze zu zwingen, führt dies zu dauerhaften Schäden am Mainboard und am DIMM-Modul. Schritt 3: Drücken Sie die DIMM-Module fest in die Steckplätze, so dass die Halteklammern an beiden Enden des Moduls einschnappen und das DIMM-Modul fest an Ort und Stelle sitzt. ASRock Z68 Pro3-M Motherboard...
  • Seite 45: Einbau Einer Erweiterungskarte

    Erweiterungssteckplätze (PCI-Steckplätze und PCI Express-Steckplätze) Es gibt einen 1 PCI-Steckplätze und 3 PCI Express-Steckplätze am Z68 Pro3-M Motherboard. PCI-Slots: PCI-Slots werden zur Installation von Erweiterungskarten mit dem 32bit PCI-Interface genutzt. PCI Express-Slots: PCIE2 / PCIE3 (PCIE x1-Steckplatz; Weiß) wird für PCI Express-Karten mit x1 Lane-Breite-Karten verwendet, z.B.
  • Seite 46: Einstellung Der Jumper

    Sie zuerst das System hoch. Fahren Sie es dann vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Uhrzeit, benutzerdefi niertes Profi l, 1394 GUID und MAC-Adresse nur gelöscht werden, wenn die CMOS-Batterie entfernt wird. ASRock Z68 Pro3-M Motherboard...
  • Seite 47: Integrierte Header Und Anschlüsse

    Datenübertragungsrate bis 6,0 Gb/s. Serial ATA- (SATA-) SJedes Ende des SATA Datenkabel Datenkabels kann an die SATA / SATAII / SATA3 Festplatte (Option) oder das SATAII / SATA3 Verbindungsstück auf dieser Hauptplatine angeschlossen werden. ASRock Z68 Pro3-M Motherboard...
  • Seite 48 Dieses Interface zu einem PRESENCE# der Gehäusevorderseite Audio-Panel auf der Vorder MIC_RET OUT_RET seite Ihres Gehäuses, (9-Pin HD_AUDIO1) ermöglicht Ihnen eine bequeme (siehe S.2 - No. 28) OUT2_L Anschlussmöglichkeit und J_SENSE OUT2_R Kontrolle über Audio-Geräte. MIC2_R MIC2_L ASRock Z68 Pro3-M Motherboard...
  • Seite 49 Gehäuses. Die LED leuchtet, wenn das System in Betrieb ist. Die LED blinkt, wenn sich das System im Ruhezustand S1 befi ndet. Die LED schaltet sich aus, wenn sich das System in den Modi S3/S4 befi ndet oder ausgeschaltet ist (S5). ASRock Z68 Pro3-M Motherboard...
  • Seite 50: Gehäuselautsprecher-Header

    (siehe S.2 - No. 1) CPU-Lüfteranschluss Verbinden Sie das CPU - FAN_SPEED_CONTROL Lüfterkabel mit diesem (4-pin CPU_FAN1) CPU_FAN_SPEED +12V Anschluss und passen Sie den (siehe S.2 - No. 2) schwarzen Draht dem 1 2 3 4 Erdungsstift an. ASRock Z68 Pro3-M Motherboard...
  • Seite 51: Com-Anschluss-Header

    Sie bitte Ihre Energieversorgung zusammen mit dem Pin 1 und Pin 5 ein. Installation der 4-Pin ATX 12V Energieversorgung COM-Anschluss-Header Dieser COM-Anschluss- Header wird verwendet, um (9-pin COM1) ein COM-Anschlussmodul zu (siehe S.2 - No. 27) unterstützen. ASRock Z68 Pro3-M Motherboard...
  • Seite 52: Treiberinstallation

    7 / 7 64-Bit / Vista / Vista 64-Bit / XP / XP 64-Bit ohne RAID-Funktionalität auf Ihren SATA / SATAII / SATA3-Festplatten installieren, dann folgen Sie bitte je nach dem zu installierenden Betriebssystem den folgenden Schrit- ten. ASRock Z68 Pro3-M Motherboard...
  • Seite 53: Windows ® Xp / Xp 64-Bit Ohne Raid-Funktionalität

    A. Rufen Sie das UEFI SETUP UTILITY auf, wählen Sie den „Advanced“- Bildschirm (Erweitert), dann „SATA Confi guration“. B. Stellen Sie “SATA Mode” auf [AHCI]. ® SCHRITT 2: Installieren Sie Windows 7 / 7 64-Bit / Vista / Vista 64-Bit in Ihrem System. ASRock Z68 Pro3-M Motherboard...
  • Seite 54 ASSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menüges- teuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert. ASRock Z68 Pro3-M Motherboard...
  • Seite 55: Contenu Du Paquet

    1. Introduction Merci pour votre achat d’une carte mère ASRock Z68 Pro3-M, une carte mère très fi able produite selon les critères de qualité rigoureux de ASRock. Elle offre des per- formances excellentes et une conception robuste conformément à l’engagement d’ASRock sur la qualité...
  • Seite 56 - Prend en charge le DVI avec une résolution maximale jusqu’à 1920x1200 @ 60Hz - Prend en charge le D-Sub avec une résolution maximale jusqu’à 2048x1536 @ 75Hz - Prend en charge le DisplayPort avec une résolution maximale jusqu’à 2560x1600 @ 60Hz ASRock Z68 Pro3-M Motherboard...
  • Seite 57: Panneau Arrière

    - 2 x ports USB3.0 à l’arrière par Etron EJ168A, prennent en charge USB 1.0/2.0/3.0 jusqu’à 5 Gb/s Connecteurs - 3 x connecteurs SATA2, prennent en charge un taux de transfert de données pouvant aller jusqu’à 3.0Go/s, ASRock Z68 Pro3-M Motherboard...
  • Seite 58 - CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Tension Multi-ajustement CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (version d’évaluation), suite logicielle ASRock (CyberLink DVD Suite et Creative Sound Blaster X-Fi MB) (Version OEM et d’essai) Caractéristique - Utilitaire ASRock Extreme Tuning (AXTU)
  • Seite 59 OS avec CPU 64 bits, il n’y a pas ce genre de limitation. La dimension maximum du memoire partage est defi nie par le vendeur ® de jeu de puces et est sujet de changer. Veuillez verifi er la Intel website pour les informations recentes SVP. ASRock Z68 Pro3-M Motherboard...
  • Seite 60 ASRock Extreme Tuning Utility (AXTU). Site Web de ASRock : http://www.asrock.com 10. O ASRock Instant Flash é um utilitário de fl ash do BIOS incorporado na memória Flash ROM. Esta prática ferramenta de actualização do BIOS permite-lhe actualizar o BIOS do sistema sem necessitar de entrar nos ®...
  • Seite 61 Facebook et l’actualité en temps réel, le tout sur une vue optimisée pour une expérience de l’Internet encore plus personnelle. Les cartes mères ASRock sont équipées en ex- clusivité de l’utilitaire SmartView, ce qui vous permet de garder le contact avec vos amis itinérants.
  • Seite 62 Si c’est le cas, ne forcez pas pour insérer le processeur dans le socket. Sinon, le processeur sera gravement endommagé. ASRock Z68 Pro3-M Motherboard...
  • Seite 63 Etape 3-2. Orientez le paquet avec le dissipa- teur thermique intégré (IHS) vers le haut. Repérez la broche 1 et les deux encoches d’orientation. Encoche d’orientation Détrompeur broche 1 broche 1 Détrompeur Socket 1155 broches Encoche d’orientation Processeur 1155 broches ASRock Z68 Pro3-M Motherboard...
  • Seite 64 L’exemple ci-dessous illustre l’installation du dissipateur thermique pour un proces- seur 1155 broches. Etape 1. Appliquez le matériau d’interface thermique (Appliquez le matériau au centre de IHS sur la surface du socket. d’interface thermique) Apply Thermal Interface Material ASRock Z68 Pro3-M Motherboard...
  • Seite 65 Cooler Option (C.C.O.), qui offre un choix fl exible pour adopter trois types différents de refroidisseurs de CPU, les sockets LGA 775, LGA 1155 et LGA 1156. Les trous traversant blancs sont pour le ventila- teur de CPU au socket LGA 1155/1156. ASRock Z68 Pro3-M Motherboard...
  • Seite 66 2.3 Installation des modules m émoire [DIMM] La carte mère Z68 Pro3-M dispose de quatre emplacements DIMM DDR3 (Double Data Rate 3) de 240-broches, et supporte la Technologie de Mémoire à Canal Double. Pour effectuer une confi guration à canal double, vous devez toujours instal- ler des paires de DIMM DDR3 identiques (de la même marque, de la même vitesse,...
  • Seite 67 DIMM. Etape 3. Insérez fermement le module DIMM dans son emplacement jusqu’à ce que les clips de maintien situés aux deux extrémités se ferment complètement et que le module DIMM soit inséré correctement. ASRock Z68 Pro3-M Motherboard...
  • Seite 68 Slot d’extension (Slots PCI et Slots PCI Express) Il y a 1 ports PCI et 3 ports PCI Express sur la carte mère Z68 Pro3-M. Slots PCI: Les slots PCI sont utilisés pour installer des cartes d’extension dotées d’une interface PCI 32 bits.
  • Seite 69 CMOS. Veuillez noter que le mot de passe, la date, l’heure, le profi l par défaut de l’utilisateur, 1394 GUID et l’adresse MAC seront effacés seulement si la batterie du CMOS est enlevée. ASRock Z68 Pro3-M Motherboard...
  • Seite 70 Câble de données Toute cote du cable de data Série ATA (SATA) SATA peut etre connecte au disque dur SATA / SATAII / (en option) SATA3 ou au connecteur SATAII / SATA3 sur la carte mere. ASRock Z68 Pro3-M Motherboard...
  • Seite 71 C’est une interface pour PRESENCE# un câble avant audio en façade MIC_RET (HD_AUDIO1 br. 9) OUT_RET qui permet le branchement et (voir p.2 No. 28) le contrôle commodes de OUT2_L périphériques audio. J_SENSE OUT2_R MIC2_R MIC2_L ASRock Z68 Pro3-M Motherboard...
  • Seite 72 Ce voyant DEL est allumé lorsque le système est en marche. Le voyant DEL clignote lorsque le système est en mode veille S1. Le voyant DEL est éteint lorsque le système est en mode veille S3/ S4 ou lorsqu’il est éteint (S5). ASRock Z68 Pro3-M Motherboard...
  • Seite 73 Veuillez connecter le câble de FAN_SPEED_CONTROL CPU_FAN_SPEED de l’UC ventilateur d’UC sur ce +12V connecteur et brancher le fi l (CPU_FAN1 br. 4) noir sur la broche de terre. (voir p.2 No. 2) 1 2 3 4 ASRock Z68 Pro3-M Motherboard...
  • Seite 74 5. 4-Installation d’alimentation à 4 broches ATX 12V En-tête de port COM Cette en-tête de port COM est utilisée pour prendre en charge (COM1 br.9) un module de port COM. (voir p.2 No. 27) ASRock Z68 Pro3-M Motherboard...
  • Seite 75 7 / 7 64-bit / Vista / Vista 64-bits / XP / XP 64- bit sur vos disques durs SATA / SATAII / SATA3 sans les fonctions RAID, veuillez suivre les procédures ci-dessous, en fonction de l’OS que vous installez. ASRock Z68 Pro3-M Motherboard...
  • Seite 76 A. Accédez à UEFI SETUP UTILITY (Utilitaire de confi guration UEFI) → écran Avancé → Confi guration SATA. B. Réglez «SATA Mode « sur [AHCI]. ® ETAPE 2: Installer le système d’exploitation Windows 7 / 7 64-bit / Vista / Vista 64-bit sur votre système. ASRock Z68 Pro3-M Motherboard...
  • Seite 77 CD-ROM. Le Menu principal s’affi che automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, locali- sez dans le CD technique le fi chier “ASSETUP.EXE” dans le dossier BIN et double- cliquez dessus pour affi cher les menus. ASRock Z68 Pro3-M Motherboard...
  • Seite 78: Contenuto Della Confezione

    1. Introduzione Grazie per aver scelto una scheda madre ASRock Z68 Pro3-M, una scheda madre affi dabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni eccel- lenti e il design robusto si conformano all’impegno di ASRock nella ricerca della qualità...
  • Seite 79 HBR (High Bit Rate Audio) con HDMI (è necessario un monitor compatibile HDMI) (vedi ATTENZIONE 7) - Supporta Blu-ray Stereoscopico in 3D con HDMI 1.4a - Supporto della funzione HDCP con le porte DVI, HDMI e DisplayPort ASRock Z68 Pro3-M Motherboard...
  • Seite 80 - 1 x Collettore modulo infrarossi - 1 x Connettore modulo infrarosso consumer - 1 x Collettore porta stampante - 1 x collettore porta COM - 1 x connettore HDMI_SPDIF - 1 x LED di accensione - Connettore CPU/Chassis/Alimentazione ventola ASRock Z68 Pro3-M Motherboard...
  • Seite 81 Software ASRock (Suite CyberLink DVD e Creative Sound Blaster X-Fi MB) (OEM e Versione demo) Caratteristica - ASRock Extreme Tuning Utility (AXTU) (vedi ATTENZIONE 9) speciale - Instant Boot - ASRock Instant Flash (vedi ATTENZIONE 10) - Caricatore ASRock APP Charger (vedi ATTENZIONE 11)
  • Seite 82 - Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP) (vedi ATTENZIONE 18) * Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com AVVISO Si prega di prendere atto che la procedura di overclocking implica dei rischi, come anche la regolazione delle impostazioni del BIOS, l’applicazione della tecnologia...
  • Seite 83 AXTU (ASRock Extreme Tuning Utility). Sito ASRock: http://www.asrock.com 10. ASRock Instant Flash è una utilità Flash BIOS integrata nella Flash ROM. Questo comodo strumento d’aggiornamento del BIOS permette di aggior- nare il sistema BIOS senza accedere a sistemi operativi come MS-DOS ®...
  • Seite 84 5 v è più alta del 50% con un consumo di corren- te di 100 mA. Per la scelta di un’alimentatore predisposto EuP consiglia- mo di verifi care ulteriori dettagli con il produttore. ASRock Z68 Pro3-M Motherboard...
  • Seite 85 CPU sia pulita e che non ci siano pin piegati nel socket. Non forzare l’inserimento della CPU nel socket se ci sono pin piegati. In caso contrario la CPU potrebbe essere seriamente danneggiata. ASRock Z68 Pro3-M Motherboard...
  • Seite 86 (Integrated Heat Sink: dispersore di calore integrato) verso l’alto. Individuare il Pin1 ed i due dentelli chiave d’orientamento. Dente di orientamento Tacca di allineamento Pin1 Pin1 Tacca di allineamento Dente di orientamento Socket da 1155-Pin CPU da 1155-Pin ASRock Z68 Pro3-M Motherboard...
  • Seite 87 Fase 4-2. Bloccare la leva di carico mentre si preme leggermente sulla piastra di carico. Fase 4-3. Fissare la leva di carico con la linguetta della piastra di carico che si trova sulla parte inferiore della linguetta di ritenzione della leva di carico. ASRock Z68 Pro3-M Motherboard...
  • Seite 88 Cooler Option), che fornisce la fl essibilità di impiegare tre tipi diversi di dispersori di calore CPU, Socket LGA 775, LGA 1155 e LGA 1156. I fori di colore bianco sono per la ventola CPU Socket LGA 1155/1156. ASRock Z68 Pro3-M Motherboard...
  • Seite 89 2.3 Installazione dei moduli di memoria (DIMM) La scheda madre Z68 Pro3-M fornisce quattro alloggiamenti DIMM DDR3 (Dou- ble Data Rate 3) a 240 pin, e supporta la tecnologia Dual Channel Memory. Per la confi gurazione a due canali, è necessario installare sempre coppie identiche (stessa marca, velocità, dimensioni e tipo di chip) di DIMM DDR3 negli alloggiamenti dello...
  • Seite 90 DIMM stessa. Step 3. Inserire saldamente la DIMM nello slot fi no a far scattare completamente in posizione i fermagli di ritegno alle due estremità e fi no ad installare correttamente la DIMM nella sua sede. ASRock Z68 Pro3-M Motherboard...
  • Seite 91 Slot di espansione (Slot PCI ed Slot PCI Express) Sulla scheda madre Z68 Pro3-M c’è 1 slot PCI ed 3 slot PCI Express. Slot PCI: Sono utilizzati per installare schede di espansione con Interfaccia PCI a 32-bit. Slot PCI Express: L’alloggio PCIE2 / PCIE3 (PCIE x1; bianco) è usato per le schede PCI Express x1 lane, come schede Gigabit LAN e SATA2.
  • Seite 92 CMOS. No- tare che password, data, ore, profi lo utente predefi nito, 1394 GUID e indirizzo MAC saranno cancellati solo se è rimossa la batteria della CMOS. ASRock Z68 Pro3-M Motherboard...
  • Seite 93 Cavi dati Serial ATA (SATA) Una o altra estremità del cavo di dati SATA può essere (Opzionale) collegata al disco rigido SATA / SATAII / SATA3 o al connettore di SATAII / SATA3 su questa cartolina base. ASRock Z68 Pro3-M Motherboard...
  • Seite 94 Connettore audio sul È un’interfaccia per il cavo del PRESENCE# MIC_RET pannello frontale pannello audio. Che consente OUT_RET connessione facile e controllo (9-pin HD_AUDIO1) dei dispositivi audio. (vedi p.2 Nr. 28) OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L ASRock Z68 Pro3-M Motherboard...
  • Seite 95 Il LED è acceso quando il sistema è operativo. Il LED continua a lampeggiare quando il sistema è in stato di standby S1. Il LED è spento quando il sistema è in stato di sospensione /ibernazione S3/S4 oppure spento (S5). ASRock Z68 Pro3-M Motherboard...
  • Seite 96 Se si intende collegare la ventola CPU a 3 piedini al connettore della ventola CPU su questa scheda madre, collegarla ai piedini 1-3. Piedini 1-3 collegati Installazione della ventola a 3 piedini ASRock Z68 Pro3-M Motherboard...
  • Seite 97 SPDIF su scheda (2-pin HDMI_SPDIF1) SPDIFOUT HDMI VGA, consente al (vedi p.2 Nr. 29) sistema di collegare dispositivi per TV digitale HDMI/proiettori/ LCD . Collegare il connettore HDMI_SPDIF della scheda VGA HDMI a questo header. ASRock Z68 Pro3-M Motherboard...
  • Seite 98 A. Entrare in UEFI SETUP UTILITY (UTILITÀ DI CONFIGURAZIONE DEL UEFI) → Advanced screen (Avanzate) → SATA Confi guration. B. Impostare “SATA Mode” su [IDE]. ® Passo 2: Installazione di Windows XP / XP 64-bit sul sistema. ASRock Z68 Pro3-M Motherboard...
  • Seite 99 A. Entrare in UEFI SETUP UTILITY (UTILITÀ DI CONFIGURAZIONE DEL UEFI) → Advanced screen (Avanzate) → SATA Confi guration. B. Impostare “SATA Mode” su [AHCI]. ® Passo 2: Installazione di Windows 7 / 7 64-bit / Vista / Vista 64-bit sul sistema. ASRock Z68 Pro3-M Motherboard...
  • Seite 100 Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul fi le “ASSETUP.EXE” nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù. ASRock Z68 Pro3-M Motherboard...
  • Seite 101: Contenido De La Caja

    1. Introducción Gracias por su compra de ASRock Z68 Pro3-M placa madre, una placa de confi an- za producida bajo el control de calidad estricto y persistente. La placa madre provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock.
  • Seite 102 - Admite Sincronización automática entre audio y vídeo, Deep Color (12 bpc), xvYCC y HBR (audio de alta tasa de bits) con HDMI (se necesita un monitor compatible con HDMI) (ver ATENCIÓN 7) - Admite la función 3D estereoscópica Blu-ray con HDMI 1.4a ASRock Z68 Pro3-M Motherboard...
  • Seite 103 Intel Smart Response), NCQ, AHCI y “Conexión en caliente” - 2 x conexiones SATA3, admiten una velocidad de transferencia de datos de hasta 6,0Gb/s - 1 x puerto Floppy - 1 x Cabezal de Módulo Infrarrojos ASRock Z68 Pro3-M Motherboard...
  • Seite 104 - Controladores, utilidades, software de antivirus (versión de prueba), ASRock Software Suite (CyberLink DVD Suite y Creative Sound Blaster X-Fi MB) (OEM y versión de prueba) Característica - ASRock Extreme Tuning Utility (AXTU) (vea ATENCIÓN 9) Única - Instant Boot - ASRock Instant Flash (vea ATENCIÓN 10) - ASRock APP Charger (vea ATENCIÓN 11)
  • Seite 105 Puede elegir entre dos de los cuatro monitores solamente. Los monitores D-Sub, DVI-D, HDMI y DisplayPort no se pueden habilitar al mismo tiempo. Además, con el adaptador DVI a HDMI, el puerto DVI-D puede admitir las mismas funciones que el puerto HDMI. ASRock Z68 Pro3-M Motherboard...
  • Seite 106 . Gracias a esta utilidad, sólo necesitará pulsar <F6> durante la fase POST o pulsar <F2> para acceder al menú de confi gu- ración del BIOS y a la utilidad ASRock Instant Flash. Ejecute esta herra- mienta y guarde el archivo correspondiente al sistema BIOS nuevo en su unidad fl...
  • Seite 107 Windows 7 / 7 64 bits / Vista / Vista bits y que la versión de su explorador es IE8. Sitio Web de ASRock: http://www.asrock.com/Feature/SmartView/index.asp 13. ASRock XFast USB puede aumentar el rendimiento de los dispositivos de almacenamiento USB.
  • Seite 108 CPU se encuentra limpia y no hay ninguna aguja torcida en el socket. No introduzca la CPU en el socket por la fuerza si se produce la situación anterior. Si lo hace, puede producir daños graves en la CPU. ASRock Z68 Pro3-M Motherboard...
  • Seite 109 Heat Sink) mirando hacia arriba. Busque la aguja 1 y las dos muescas de orientación. Muesca de orientación Tecla de alineación aguja 1 aguja 1 Tecla de alineación Muesca de orientación Socket de 1155 agujas CPU de 1155 agujas ASRock Z68 Pro3-M Motherboard...
  • Seite 110 A continuación se ofrece un ejemplo para ilustrar la instalación del disipador para la CPU de 1155 agujas. (Aplique el material termal de Paso 1. Aplique el material termal de interfaz en el interfaz) centro del IHS de la superfi cie del socket. Apply Thermal Interface Material ASRock Z68 Pro3-M Motherboard...
  • Seite 111 (C.C.O.), una opción fl exible que puede adaptarse a tres tipos de disipador de CPU diferentes, correspondientes a los zócalos LGA 775, LGA 1155 y LGA 1156. Los orifi cios perforados de color blanco están destinados al ventilador de CPU para zócalos LGA 1155/1156. ASRock Z68 Pro3-M Motherboard...
  • Seite 112 2.3 Instalación de Memoria La placa Z68 Pro3-M ofrece cuatro ranuras DIMM DDR3 de 240 pines, y soporta Tecnología de Memoria de Doble Canal. Para la confi guración de doble canal, necesitará instalar siempre pares DIMM DDR3 idénticos (de la misma marca, velocidad, tamaño y tipo) en las ranuras del mismo color.
  • Seite 113 DIMM. Paso 3. Inserte la DIMM con fi rmeza dentro de la ranura hasta que los clips de sujeción de ambos lados queden completamente introducidos en su sitio y la DIMM se haya asentado apropiadamente. ASRock Z68 Pro3-M Motherboard...
  • Seite 114 Ranuras de Expansión (ranuras PCI y ranuras PCI Express) La placa madre Z68 Pro3-M cuenta con 1 ranuras PCI y 3 ranuras PCI Express. Ranura PCI: Para instalar tarjetas de expansión que tienen 32-bit Interface PCI. Ranura PCI Express: La ranura PCIE2 / PCIE3 (ranura PCIE x1, Blanco) se utiliza con tarjetas PCI Express con ancho de banda x1, como las tarjetas Gigabit LAN, y SATA2.
  • Seite 115 Tenga en cuenta que la contraseña, la fecha, la hora, el perfi l predeterminado del usuario, el GUID 1394 y la dirección MAC solamente se borrará si la batería CMOS se quita. ASRock Z68 Pro3-M Motherboard...
  • Seite 116 Cualquier extremo del cable de serie ATA (SATA) los datos de SATA puede ser conectado con el disco duro (Opcional) de SATA / SATAII / SATA3 o el conectador de SATAII / SATA3 en esta placa base. ASRock Z68 Pro3-M Motherboard...
  • Seite 117 Este es una interface para PRESENCE# panel frontal MIC_RET cable de audio de panel frontal OUT_RET que permite conexión y control (9-pin HD_AUDIO1) conveniente de apparatos de (vea p.2, N. 28) OUT2_L Audio. J_SENSE OUT2_R MIC2_R MIC2_L ASRock Z68 Pro3-M Motherboard...
  • Seite 118 El LED se enciende cuando el sistema esté en funcionamiento. El LED parpadea cuando el sistema se encuentre en estado de suspensión S1. El LED se apaga cuando el sistema se encuentre en estado de suspensión S3/S4 o se apaga (S5). ASRock Z68 Pro3-M Motherboard...
  • Seite 119 Conecte el cable del ventilador FAN_SPEED_CONTROL CPU_FAN_SPEED de la CPU de la CPU a este conector y +12V haga coincidir el cable negro (4-pin CPU_FAN1) con el conector de tierra. (vea p.2, N. 2) 1 2 3 4 ASRock Z68 Pro3-M Motherboard...
  • Seite 120 4-pin ATX 12V. Para usar el fuente de energía de 4-pin ATX 12V, por favor conecte su fuente de energía junto con Pin 1 y Pin 5. Instalación de Fuente de Energía de 4-Pin ATX 12V ASRock Z68 Pro3-M Motherboard...
  • Seite 121 64 bits / XP / XP 64 bits en sus discos duros SATA / SATAII / SATA3 sin funciones RAID, siga los proced- imientos que se indican a continuación en función del sistema operativo que tenga instalado. ASRock Z68 Pro3-M Motherboard...
  • Seite 122 A. Entre en UEFI SETUP UTILITY → Òpantalla Avanzada → SATA Confi guración. B. Confi gure la “SATA Mode” a [AHCI]. ® PASO 2: Instale Windows 7 / 7 64 bits / Vista / Vista 64 bits en su sistema. ASRock Z68 Pro3-M Motherboard...
  • Seite 123 Para iniciar la instalación, ponga el CD en el lector de CD y se des- plegará el Menú Principal automáticamente si «AUTORUN» está habilitado en su computadora. Si el Menú Principal no aparece automáticamente, localice y doble-pulse en el ar- chivo “ASSETUP.EXE” para iniciar la instalación. ASRock Z68 Pro3-M Motherboard...
  • Seite 124 1. Введение Благодарим вас за покупку материнской платы ASRock Z68 Pro3-M надежной материнской платы, изготовленной в соответствии с постоянно предъявляемыми ASRock жесткими требованиями к качеству. Она обеспечивает превосходную производительность и отличается отличной конструкцией, которые отражают приверженность ASRock качеству и долговечности.
  • Seite 125 монитор с разъемом HDMI) (см. ОСТОРОЖНО, пункт 7) - Поддержка стандарта Blu-ray Stereoscopic 3D со спецификацией HDMI 1.4a - Поддержка функции HDCP через разъемы DVI, HDMI и DisplayPort - Подержат Blu-луч 1080p (КОММУТАЦИОННАЯ ДОСКА) / воспроизведение HD-DVD через разъемы DVI, HDMI и DisplayPort ASRock Z68 Pro3-M Motherboard...
  • Seite 126 - соединитель: CPU/Chassis/Power FAN - 24-контактный Колодка питания ATX - 8-контактный Разъем ATX 12 В - Аудиоразъем передней панели - 3 x Колодка USB 2.0 (одна колодка для поддержки 6 дополнительных портов USB 2.0 BIOS - 64Mb AMI BIOS ASRock Z68 Pro3-M Motherboard...
  • Seite 127 - Средство ASRock Extreme Tuning Utility (AXTU) Особенность (см. ОСТОРОЖНО, пункт 9) - Instant Boot - ASRock Instant Flash (см. ОСТОРОЖНО, пункт 10) - ASRock APP Charger (см. ОСТОРОЖНО, пункт 11) - SmartView (см. ОСТОРОЖНО, пункт 12) - ASRock XFast USB (см. ОСТОРОЖНО, пункт 13) - Lucid Virtu (см.
  • Seite 128 Поддерживаются 2-, 4-, 6- и 8-канальный режимы вывода звука. Соответствующие схемы подключения описаны на стр. 3. Служебная программа ASRock Extreme Tuning Utility (AXTU) – это универсальное средство тонкой настройки различных функций системы с удобным и понятным интерфейсом, включающая разделы Hardware Monitor (Наблюдение...
  • Seite 129 ее производительности во время простоя ядер ЦПУ. Чтобы узнать, как работать с программой ASRock Extreme Tuning Utility (AXTU), посетите наш сайт в Интернете. Адрес сайта ASRock: http://www.asrock.com 10. ASRock Instant Flash – программа для прошивки BIOS, встроенная в Flash ROM. Данное средство для обновления BIOS умеет работать ®...
  • Seite 130 13. Функция ASRock XFast USB увеличивает скорость работы устройств USB. Рост скорости зависит от устройства. 14. Благодаря технологии Lucid Virtu вы можете одновременно наслаждаться преимуществами 3D-производительности дискретного графического процессора и широкими мультимедийными возможностями HD- ® видеоадаптера Intel 15. Хотя данная материнская плата поддерживает плавную настройку...
  • Seite 131: Установка

    не погнуты. Если такая ситуация имеет место, не вставляйте процессор в гнездо силой – это приведет к его серьезному повреждению. Шаг 1. Откройте гнездо: Шаг 1-1. Освободите рычаг, нажав на петлю в направлении вниз и наружу так, чтобы он вышел из-под фиксирующего выступа. ASRock Z68 Pro3-M Motherboard...
  • Seite 132 Для правильной установки убедитесь, что два ключевых выреза для ориентации на процессоре совмещены с двумя ключами выравнивания на гнезде. Шаг 3-3. Осторожно поместите процессор в гнездо, перемещая его строго вертикально. Шаг 3-4. Убедитесь, что процессор находится в гнезде и соответствует положению ключей ориентации. ASRock Z68 Pro3-M Motherboard...
  • Seite 133 Внимание, данная материнская плата поддерживает функцию Combo Cooler Option (C.C.O.), обеспечивающую возможность установки двух разных типов кулеров – под Socket LGA775, LGA 1155 или LGA1156. Отверстия с белой каймой предназначены для установки кулеров под Socket LGA1155/1156. ASRock Z68 Pro3-M Motherboard...
  • Seite 134 2.3 Установка модулей памяти (DIMM) Материнская плата Z68 Pro3-M включает четыре 240-контактных гнезда DDR3 (Double Data Rate 3) DIMM и поддерживает технологию Dual Channel Memory Technology. В двухканальной конфигурации необходимо всегда устанавливать пары идентичных модулей DDR3 DIMM (одна и та же марка, быстродействие, объем...
  • Seite 135 ключами, делающими невозможной неправильную установку. Применение силы при попытке вставить модуль в гнездо в неправильной ориентации может привести к повреждению модуля и системной платы. Шаг 3. Плотно вставьте DIMM-модуль в гнездо – фиксаторы по обоим концам гнезда должны полностью защелкнуться. ASRock Z68 Pro3-M Motherboard...
  • Seite 136 2.4 Гнезда расширения (PCI и PCI Express) Материнские платы Z68 Pro3-M включают 1 гнезда PCI и 3 гнездо PCI Express. Гнезда PCI: Гнезда PCI предназначены для карт расширения с 32- разрядным интерфейсом PCI. Гнезда PCIE: Гнездо PCIE2 / PCIE3 (PCIE x1; Белый) используется...
  • Seite 137 перед очисткой CMOS, необходимо сначала выполнить загрузку системы, а затем завершить ее работу. Примите во внимание, что пароль, дата, время, профиль пользователя по умолчанию, идентификатор 1394 GUID и MAC-адрес будут очищены только тогда, когда будет извлечена из своего гнезда батарейка CMOS. ASRock Z68 Pro3-M Motherboard...
  • Seite 138 Информационный Информационный кабель кабель Serial ATA (SATA) интерфейса SATA / SATAII / SATA3 не является направленным. (дополнительно) Любой из его соединителей может быть подключен либо к жесткому диску интерфейса SATAII / SATA3 либо к материнской плате. ASRock Z68 Pro3-M Motherboard...
  • Seite 139 SPD2 SPD1 SPD0 STB# Аудиоразъем передней Этот интерфейс предназначен PRESENCE# панели для присоединения MIC_RET OUT_RET аудиокабеля передней панели, (9-контактный HD_AUDIO1) обеспечивающего удобное (см. cтр. 2, п.28) подключение аудиоустройств и OUT2_L J_SENSE управление ими. OUT2_R MIC2_R MIC2_L ASRock Z68 Pro3-M Motherboard...
  • Seite 140 корпуса. Способ выключения системы с помощью кнопки питания можно настроить. RESET (кнопка сброса): Подключите к этим контактам кнопку сброса на передней панели корпуса. Нажмите кнопку сброса для перезагрузки компьютера, если компьютер «завис» и нормальную перезагрузку выполнить не удается. ASRock Z68 Pro3-M Motherboard...
  • Seite 141 (см. стр. 2, п. 1) Разъем вентилятора Подключите к этому разъему FAN_SPEED_CONTROL процессора кабель вентилятора процессора CPU_FAN_SPEED +12V так, чтобы черный провод (4-контактный CPU_FAN1) соответствовал контакту земли. (см. стр. 2, п. 2) 1 2 3 4 ASRock Z68 Pro3-M Motherboard...
  • Seite 142 соединитель власти, это может все еще работать, если Вы принимаете традиционный ATX с 4-Pin 12V электропитание. Чтобы использовать электропитание ATX с 4-Pin, пожалуйста включите ваше электропитание наряду с Булавкой 1 и Прикрепите 5. ATX С 4-Pin 12V Установка Электропитания ASRock Z68 Pro3-M Motherboard...
  • Seite 143 обеспечивает подачу выходного (2-контактный HDMI_SPDIF1) аудиосигнала на VGA-карту (см. стр. 2, п. 29) SPDIFOUT HDMI, что позволяет подключать к системе цифровые телевизоры, проекторы или жидкокристаллические панели HDMI. Соедините эту колодку с разъемом HDMI_SPDIF на VGA- карте HDMI. ASRock Z68 Pro3-M Motherboard...
  • Seite 144 ШАГ 1. Установите параметры UEFI. A. Войдите в утилиту настройки UEFI → экран Advanced → SATA Confi guration. B. Установите для “SATA Mode” значение [IDE]. ® ШАГ 2. Установите на свою систему Windows XP / XP 64-bit. ASRock Z68 Pro3-M Motherboard...
  • Seite 145 A. Войдите в утилиту настройки UEFI → экран Advanced → SATA Confi guration. B. Установите для “SATA Mode” значение [AHCI]. ® ШАГ 2. Установите на свою систему Windows 7 / 7 64-bit / Vista Vista 64-bit. ASRock Z68 Pro3-M Motherboard...
  • Seite 146 Если в вашем компьютере включена функция автозапуска (AUTORUN), то на экране автоматически появится главное меню компакт-диска (Main Menu). Если этого не произошло, найдите в папке BIN на компакт-диске поддержки файл ASSETUP.EXE и дважды щелкните на нем, чтобы открыть меню. ASRock Z68 Pro3-M Motherboard...
  • Seite 147 önceden haber verilmeksizin değişebilir. Bu belgede değişiklik yapılması durumun -da, güncelleştirilmiş sürüm ayrıca haber verilmeksizin ASRock web sitesinde sunulur. En son VGA kartlarını ve CPU destek listelerini de ASRock web sitesinde bulabilirsiniz. ASRock web sitesi http://www.asrock.com Bu anakartla ilgili teknik desteğe ihtiyacınız olursa, kullandığınız modele özel bilgiler için lütfen web sitemizi ziyaret edin.
  • Seite 148 (bkz. DЭKKAT 7) - HDMI 1.4a bulunan Blu-Ray stereoskopik 3D’yi desteklemektedir - DVI, HDMI ve DisplayPort portlarэyla HDCP iюlevini destekler - DVI, HDMI ve DisplayPort portlarэyla Tam HD 1080p Blu-ray (BD) / HD-DVD oynatэmэnэ destekler ASRock Z68 Pro3-M Motherboard...
  • Seite 149: Arka Panel

    - 1 x COM portu fi şi - 1 x HDMI_SPDIF fi şi - 1 x Güç LED’i fi şi - CPU/Kasa/Güç FAN konektörü - 24 pin ATX güç konektörü - 8 pin 12V güç konektörü ASRock Z68 Pro3-M Motherboard...
  • Seite 150 / Vista 64-bit / XP / XP 64-bit uyumlu Sertifi kalar - FCC, CE, WHQL - ErP/EuP Hazır (ErP/EuP hazır güç kaynağı gerekli) (bkz. DİKKAT 18) * Ayrıntılı ürün bilgileri için lütfen web sitemizi ziyaret edin: http://www.asrock.com ASRock Z68 Pro3-M Motherboard...
  • Seite 151 Düzgün bağlantı için sayfa 3'teki tabloyu kontrol edin. ASRock Extreme Tuning Utility (AXTU) hepsi bir arada bir araç olup kullanıcı ile dost bir arayüzde farklı sistem işlevlerinin ince ayarını yapmak için kullanılmakta olup buna Donanım Monitörü, Fan Kontrolü, Hız Aşırtma, OC DNA ve IES dahildir.
  • Seite 152 10. ASRock Anında Flash, Flash ROM’a katıştırılmış bir BIOS fl ash yardımcı programıdır. Bu kullanışlı BIOS güncelleme aracı, sistem BIOS’unu MS- ® DOS veya Windows gibi ilk önce işletim sistemine girmeden güncelle- menizi sağlar. Bu yardımcı programla, POST sırasında <F6> tuşuna bas- abilirsiniz veya BIOS ayarları...
  • Seite 153 1155-Pinli Sokete Genel Bakış 1155-Pin CPU'yu soketine takmadan önce, lütfen CPU yüzeyinin temiz olduğundan ve sokette eğrilmiş pin olmadığından emin olun. Yukarıdaki durum oluşmuşsa CPU'yu sokete zorla takmaya çalışmayın. Aksi halde, CPU ciddi şekilde zarar görecektir. ASRock Z68 Pro3-M Motherboard...
  • Seite 154 şekilde tutun. Pin1'i ve yönlendirmeyi sağlayan iki çentiği bulun. yönlendirme dişi çentiği hizalama dişi Pin1 Pin1 hizalama dişi yönlendirme dişi çentiği 1155-Pin-Socket 1155-Pin-CPU Düzgün şekilde takmak için, lütfen CPU'daki iki yönlendirme dişi çentiğini soketteki iki hizalama dişiyle eşleştirdiğinizden emin olun. ASRock Z68 Pro3-M Motherboard...
  • Seite 155 Kalan sabitleyicilerle de aynı işlemi yapın. Sabitleyicileri saat yönünde döndürmeden bastırırsanız, ısı emici anakarta sabitlenemez. Adım 5. Fan fi şini anakarttaki CPU fanı konektörüne bağlayın. Adım 6. Kabloların fanın çalışmasını engellemediğinden ve diğer bileşenlere temas etmediğinden emin olmak için kablo bağıyla sabitleyin. ASRock Z68 Pro3-M Motherboard...
  • Seite 156 Lütfen anakartın üç farklı CPU soğutucu tipi olan Soket LGA 775, LGA 1155 ve LGA 1156'yı çalıştıracak esnek seçeneğe sahip olan Kombo Soğutucu Seçeneğini (C.C.O.) desteklediğini unutmayın. Beyaz delikler Soket LGA 1155/1156 CPU fanı içindir. ASRock Z68 Pro3-M Motherboard...
  • Seite 157 4. Bir DDR veya DDR2 bellek modülünü DDR3 yuvasına takmaya izin verilmez; aksi halde bu anakart ve DIMM zarar görebilir. 5. 16 adet yongaya sahip bazı DDR3 1GB çift tarafl ı DIMM’ler bu ana kartta çalışmayabilir. Bu ana karta kurmanız önerilememektedir. ASRock Z68 Pro3-M Motherboard...
  • Seite 158 DIMM'nin takılabileceği yalnızca bir doğru yön vardır. DIMM'yi yanlış yönde zorla yuvaya takarsanız anakart ve DIMM kalıcı hasar görür. Adım 3. İki uçtaki tutucu klipsler yerine geri oturuncaya ve DIMM düzgün şekilde yerleşinceye kadar DIMM'yi yuvanın içinde bastırın. ASRock Z68 Pro3-M Motherboard...
  • Seite 159 Kullanmak istediğiniz yuvaya bakan braketi çıkarın. Vidaları daha sonra kullanmak üzere saklayın. Adım 4. Kartın konektörünü yuvaya hizalayın ve kart yuvaya tam olarak otu- runcaya kadar sıkıca bastırın. Adım 5. Vidalarla kartı kasaya sabitleyin. Adım 6. Sistem kapağını yerleştirin. ASRock Z68 Pro3-M Motherboard...
  • Seite 160 BIOS’u güncellemeyi tamamladığınızda CMOS’u temizlemeniz gerekirse, ilk olarak sistemi başlatmanız ve ardından CMOS temizleme işlemini gerçekleştirmeden önce kapatmanız gereklidir. Parola, tarih, saat, kullanıcı varsayılan profi li, 1394 GUID ve MAC adresinin yalnızca CMOS pili çıkarıldığında temizleneceğini lütfen aklınızda bulundurunuz. ASRock Z68 Pro3-M Motherboard...
  • Seite 161 SATA3 arayüzü 6,0 Gb/sn veri aktarım hızına izin verir. Seri ATA (SATA) SATA veri kablosunu her iki ucu Veri Kablosu da SATA / SATAII / SATA3 sabit diskine veya anakarttaki (İsteğe bağlı) SATAII / SATA3 konektörüne bağlanabilir. ASRock Z68 Pro3-M Motherboard...
  • Seite 162 SPD0 STB# Ön Panel Ses Fişi Bu, panel ses kablosu için PRESENCE# MIC_RET uygun bağlantı sağlayan ve (9-pinli HD_SES1) OUT_RET ses cihazlarını kontrol (bkz. s.2 No. 28) etmeyi sağlayan bir arayüzdür. OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L ASRock Z68 Pro3-M Motherboard...
  • Seite 163 çalışırken LED yanar. Sistem S1 uyku modunda iken LED yanıp sön meye devam eder. Sistem S3/S4 uyku modunda veya kapalı (S5) iken LED söner. HDLED (Sabit Disk Çalışma LED’i): Kasa üzerindeki sabit disk çalışma LED'ini ön panele bağlayın. Sabit disk veri okurken veya yazarken LED yanar. ASRock Z68 Pro3-M Motherboard...
  • Seite 164 Bu anakart 4-Pinli CPU fan (Sessiz Fan) desteği sağlasa da, 3-Pinli CPU fan hızı kontrol işlevi olmadan bile hala başarılı bir şekilde çalışabilir. 3-Pinli CPU fanı bu konektördeki CPU fan konektörüne bağlamayı planlıyorsanız, lütfen Pin 1-3'e bağlayın. Pin 1-3 Bağlı 3-Pinli Fanı Takma ASRock Z68 Pro3-M Motherboard...
  • Seite 165 HDMI_SPDIF Fişi HDMI_SPDIF fi şi, SPDIF ses çıkışını HDMI VGA kartına (2-pinli HDMI_SPDIF1) sağlar, sistemin HDMI Dijital (bkz. s.2 No. 29) SPDIFOUT TV/projektör/LCD cihazlarını bağlamasına izin verir. Lütfen HDMI VGA kartının HDMI_SPDIF konektörünü bu fi şe bağlayın. ASRock Z68 Pro3-M Motherboard...
  • Seite 166 NCQ işlevi olmadan SATA / SATAII / SATA3 HDD'ler aygıtlarını kullanma ADIM 1: UEFI'u ayarlayın. UEFI AYARLARI YARDIMCI PROGRAMI'na girin Gelişmiş ekran Depolama Yapılandırması. "SATA Modu" seçeneğini [IDE] olarak ayarlayın. ® ADIM 2: Windows XP / XP 64-bit İS'yi sisteminize yükleyin. ASRock Z68 Pro3-M Motherboard...
  • Seite 167 NCQ işlevi ile SATA / SATAII / SATA3 HDD'ler aygıtlarını kullanma ADIM 1: UEFI’u ayarlayın. UEFI AYARLARI YARDIMCI PROGRAMI’na girin Gelişmiş ekran Depolama Yapılandırması. "SATA Modu" seçeneğini [AHCI] olarak ayarlayın. ® ADIM 2: Windows 7 / 7 64-bit / Vista / Vista 64-bit İS'yi sisteminize yükleyin. ASRock Z68 Pro3-M Motherboard...
  • Seite 168 Destek CD'sini kullanmaya başlamak için, CD'yi CDROM sürücünüze takın. Bilgisayarınızda "OTOMATİK KULLAN" özelliği etkinleştirilmişse, Ana Menüyü otomatik olarak görüntüler. Ana Menü otomatik olarak görüntülenmezse, menüleri görüntülemek için Destek CD'sinin “BIN” klasöründeki "ASSETUP.EXE" dosyasını bulun ve çift tıklatın. ASRock Z68 Pro3-M Motherboard...
  • Seite 169 1. 제품소개 ASRock 의 Z68 Pro3-M 메인 보드를 구매하여 주신것에 대하여 감사 드립니다 . 이 메인보드는 엄격한 품질관리 하에 생산되어진 신뢰성 있는 메인보드 입니다 . 이 제품 은 고 품격 디자인과 함께 ASRock 의 우수한 품질과 최고의 안정성을 자랑하고 있습...
  • Seite 170 - DVI, HDMI 및 DisplayPort 포트를 이용한 1080p Blu-ray (BD) / HD-DVD 재생을 지원 오디오 - 7.1 CH HD Audio 목록 보호 (Realtek ALC892 Audio Codec) - Premium Blu-ray 오디오 지원 랜 - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E ASRock Z68 Pro3-M Motherboard...
  • Seite 171 - 24 핀 ATX 전원 헤더 - 8 핀 ATX 12V 파워 콘넥터 - 전면부 오디오 콘넥터 - USB 2.0 헤더 3 개 (6 개의 추가 USB 2.0 포트를 지원하는 헤더 2 개 ) BIOS - 64Mb AMI BIOS ASRock Z68 Pro3-M Motherboard...
  • Seite 172 - CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA 전압 멀티 조절 지원 CD - 드라이버 , 유틸리티 , 백신 소프트웨어 ( 시험판 ), ASRock 소 프트웨어 스위트 (CyberLink DVD 세트 및 크리에이티브 사운 드 블라스터 X-Fi MB) (OEM 및 시험판 ) 특점및...
  • Seite 173 습니다 . IES (Intelligent Energy Saver) 의 경우 , 전압 조절기로 출 력위상의 수를 줄여 CPU 코어가 유휴 상태일 때 컴퓨터 성능을 저하 시키지 않으면서 효율을 높일 수 있습니다 . ASRock 의 AXTU (Extreme Tuning Utility) 의 작동 절차는 당사의 웹 사이트를 참조하...
  • Seite 174 64 비트이고 브라우저 버전이 IE8 인지 확인하십시오 . ASRock 웹사이트 : http://www.asrock.com/ Feature/SmartView/index.asp 13. ASRock XFast USB 는 USB 스토리지 장치 성능을 높여줍니다 . 성능은 장치 의 속성에 따라 다를 수 있습니다 . ® 14. Lucid Virtu 기술을 이용하여 개별 GPU 의 3D 성능과 Intel HD 그래픽...
  • Seite 175 1155 핀 소켓 개요 1155 핀 CPU 를 소켓에 삽입하기 전에 CPU 표면이 더럽거나 소켓에 구부러진 핀이 있는지 점검하십시오 . 이런 상태라면 CPU 를 소켓에 억지로 삽입하지 마십시오 . 그렇지않으면 CPU 가 심각하게 손상됩 니다 . ASRock Z68 Pro3-M Motherboard...
  • Seite 176 올바른 삽입을 위하여 CPU 의 방향 키 노치 두 개와 소켓의 정렬 키 두 개를 맞추십시오 . 3-3 단계 . CPU 를 소켓에 순전히 수직 방향으 로 주의하여 배치합니다 . 3-4 단계 . CPU 가 소켓에 있고 방향 키와 제대 로 일치하는지 확인합니다 . ASRock Z68 Pro3-M Motherboard...
  • Seite 177 이 메인보드는 3 개의 다른 CPU 쿨러 타입 , 소켓 LGA 775, LGA 1155 와 LGA 1156 을 채택할 수 있는 유연한 옵션을 제공하는 콤 보 쿨러 옵션 (C.C.O.) 을 지원합니다 . 하얀색 구멍은 소켓 LGA 1155/1156 CPU 팬용입니다 . ASRock Z68 Pro3-M Motherboard...
  • Seite 178 2.3 메모리 모듈 설치하기 Z68 Pro3-M 마더보드는 4 개의 240 핀 DDR3 ( 더블 데이트 레이트 3) DIMM 슬롯을 제공하고 듀얼 채널 메모리 기술을 지원합니다 . 듀얼 채널 구성을 위해서는 반드시 같은 색깔 슬롯에 동일한 DDR3 DIMM 한 쌍 ( 즉 동일한 브랜드 , 속도 , 크기 및 칩 유...
  • Seite 179 주어 잘못 삽입하면 DIMM 이나 메인보드에 치명적인 불량을 유발 시킵니다 . 단계 3. DIMM 모듈을 삽입 시 바깥에 있는 손잡이 두개가 완전히 돌아 올 때 까지 ( 끼워 질 때 까지 ) 눌러서 정확히 장착 될 수 있도록 하여야 합니다 . ASRock Z68 Pro3-M Motherboard...
  • Seite 180 2.4 확장 슬롯 (PCI 슬롯 , PCI Express 슬롯 ) Z68 Pro3-M 메인보드는 1 개의 PCI 슬롯을 , 및 3 PCI Express 슬롯 제공합니다 . PCI 슬롯 : PCI 슬롯은 32bit PCI 인터페이스를 가지는 확장카드들을 설치하여 사용 합니다 . PCIE 슬롯 : PCIE2 / PCIE3 (PCIE x1 슬롯...
  • Seite 181 삭제해야 하는 경우 먼저 시스템을 부팅하고 CMOS 를 종료하고 삭제 작업을 해 야 합니다 . CMOS 배터리를 제거할 경우에만 암호 , 날짜 , 시간 , 사용자 기본 프 로파일 , 1394 GUID, MAC 주소가 삭제됩니다 . ASRock Z68 Pro3-M Motherboard...
  • Seite 182 인터페이스는 최고 6.0 Gb/s 의 데이터 전송 속도를 지원합니다 . 시리얼 ATA(SATA) SATA 데이터 케이블의 임의 데이터 케이블 적인 측을 마더보드의 SATA / ( 선택 사양 ) SATAII / SATA3 하드 디스크 혹은 SATAII / SATA3 커넥터 에 연결합니다 . ASRock Z68 Pro3-M Motherboard...
  • Seite 183 전면부 오디오 콘넥터 이 콘넥터는 오디오 장치를 PRESENCE# 편리하게 조절하고 연결할 수 (9 핀 HD_AUDIO1) MIC_RET OUT_RET 있는 전면 오디오 인터페이스 ( 2 페이지 , 28 번 항목 참조 ) 입니다 . OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L ASRock Z68 Pro3-M Motherboard...
  • Seite 184 에 있을 때는 LED 가 꺼져 있습니다 . HDLED( 하드 드라이브 동작 LED): 섀시 전면 패널의 하드 드라이브 동작 LED 에 연결합니다 . 하드 드라이 브가 데이터를 읽거나 쓰고 있을 때 LED 가 켜져 있습니다 . ASRock Z68 Pro3-M Motherboard...
  • Seite 185 도 제어기능없이도 3 핀 CPU 팬을 성공적으로 작동할 수 있습니다 . 본 머 더보드의 CPU 팬 커넥터에 3 핀 CPU 팬을 연결하려면 1-3 번 핀에 연결 하십시오 . 1-3 번 핀에 연결됨 3 핀 팬 설치 ASRock Z68 Pro3-M Motherboard...
  • Seite 186 HDMI_SPDIF 헤더는 시스템 (2 페이지 , 29 번 항목 참조 ) SPDIFOUT 이 HDMI 디지털 TV/ 프로젝 터 /LCD 장치에 연결할 수 있 게 합니다 . HDMI VGA 카드의 HDMI_SPDIF 커넥터를 이 헤 더에 연결하십시오 . ASRock Z68 Pro3-M Motherboard...
  • Seite 187 A. UEFI SETUP UTILITY (UEFI 설정 유틸리티 ) → Advanced screen ( 고급화 면 ) → SATA Configuration 을 선택합니다 . B. “SATA Mode”을 [IDE] 로 설정한 . ® 단계 2: 시스템에 Windows XP / XP 64 비트 OS 를 설치합니다 . ASRock Z68 Pro3-M Motherboard...
  • Seite 188 면 ) → SATA Configuration 을 선택합니다 . B. “SATA Mode”을 [AHCI] 로 설정한 . ® 단계 2: 시스템에 Windows 7 / 7 64 비트 / Vista / Vista 64 비트 OS 를 설치합 니다 . ASRock Z68 Pro3-M Motherboard...
  • Seite 189 뉴를 모니터에 디스플레이 시켜 줄 것입니다 . 만일 자동으로 메인 메뉴가 나타나지 않는다면 , 보조 CD 의 디스플레이 메뉴 안에 있는 BIN 폴더 ASSETUP.EXE 파일을 더블 클릭하여 주시기 바랍니다 . (D: \ BIN \ ASSETUP.EXE, D: 는 CD-ROM 드라이브 ) ASRock Z68 Pro3-M Motherboard...
  • Seite 190 1.1 パッケージ内容 ASRock Z68 Pro3-M マザーボード: (Micro ATX フォームファクター : 9.6-in x 9.6-in, 24.4 cm x 24.4 cm) ASRock Z68 Pro3-M クイックインストレーションガイド ASRock Z68 Pro3-M サポート CD 2 x シリアル ATA (SATA) データケーブル(オプション) 1 x I/O パネルシールド ASRockからのお知らせ ASRockからのお知らせ ...
  • Seite 191 - オート・リップシンク、ディープカラー(12bpc)、xvYCC、HBR(High Bit Rate)オーディオ、HDMI (HDMI 準拠モニタが必要)をサ ポート ( 注意 7 を参照 ) - HDMI 1.4a 搭載 Blu-ray Stereoscopic 3D 対応 - HDCP 機能、DVI、HDMI ポートおよび DisplayPort ポートをサ ポート - 1080p Blu-ray (BD) / HD-DVD 再生サポート、DVI、HDMI ポートおよび DisplayPort ポートをサポート ASRock Z68 Pro3-M Motherboard...
  • Seite 192 - IR ヘッダー x 1 - コンシューマー赤外線モジュールヘッダー x 1 - プリントポートヘッダ x 1 - COM ポートヘッダ x 1 - HDMI_SPDIF ヘッダー x 1 - 電源 LED ヘッダー x 1 - CPU/ シャーシ / 電源ファンコネクタ - 24 ピン ATX 電源コネクター ASRock Z68 Pro3-M Motherboard...
  • Seite 193 - ASRock Extreme チューニングユーティリティ (AXTU) ( 注意 9 参照 ) - インスタントブート - ASRock Instant Flash ( 注意 10 参照 ) - ASRock APP ヱャージャー ( 注意 11 を参照 ) - SmartView ( 注意 12 を参照 ) - ASRock XFast USB ( 注意 13 を参照 ) - Lucid Virtu ( 注意...
  • Seite 194 7 64-bit / 7 / Vista 64-bit / Vista で使用できます。 マイク入力の場合、このマザーボードはステレオとモノラルモードをどちら もサポートします。オーディオ出力の場合、このマザーボードは 2 チャン ネル、4 チャンネル、6 チャンネルと 8 チャンネルモードをサポートしま す。正しい接続については、3 ページの表をチェックしてください。 ASRock Extreme Tuning Utility (AXTU) は、分かりやすいインター フェイスでさまざまなシステム機能を微調整するオールインワンツールで、 ハードウェアモニタ、ファンコントロール、オーバークロッキング、OC DNA、ES な どを含んでいます。ハードウェアモニタでは、システムの主要な読み込みを 示します。ファンコントロールでは、調整するファン速度と温度を示します。オー バークロッキングでは、CPU 周波数をオーバークロックして最適のシステムパ フォーマンスを出すことができます。OC DNA では、プロファイルとして OC 設...
  • Seite 195 相を削減して効率性の向上を図ります。ASRock Extreme Tuning Utility (AXTU) の操作手順については、当社 Web サイトをご覧ください。 ASRock Web サイト :http://www.asrock.com ASRock Instant Flash は、Flash ROM(フラッシュ ROM)に組み込ま れている BIOS フラッシュユーティリティです。この便利な BIOS 更新ツールに ® より、MS-DOS あるいは Windows のように最初にオペレーティングシステム に入る必要なしに、システム BIOS を更新することができます。このユーティリ ティでは、POST の間に <F6> キーを、 あるいは BIOS 設置アップメニューの 際に <F2> キーを押すことで、ASRock Instant Flash にアクセスするこ...
  • Seite 196 ションを用意しています。すべての 775 と 1156 CPU ファンを使用できるわけ ではないことにご注意ください。 Energy Using Product(エコデザイン)の略語 EuP は完成システムの消 費電力を定義するために欧州連合により規制された条項です。 EuP に従っ て、管制システムの総 AC 電力はオフモード条件下で 1.00W 未満に抑える必 要があります。EuP 規格を満たすには、EuP 対応マザーボードと EuP 対応 電源が必要です。 Intel の提案に従い、EuP 対応電源装置は規格を満たす 必要があります、つまり 5v のスタンバイ電力効率は 100 mA の消費電流下 で 50% 以上でなければなりません。 EuP 対応電源装置を選択する場合、電 源装置製造元に詳細を確認するようにお勧めします。 ASRock Z68 Pro3-M Motherboard...
  • Seite 197 付ける為にネジをネジ穴に入れるときは、ネジを締め過ぎないようにしてく ださい。締めすぎるとマザーボードを傷つけます。 CPU インストレーション Intel 1155-LAND CPU の取り付けについては、 以下のステップに従ってください。 Load Plate Load Lever Socket Body Contact Array 1155 ピンソケットの概要 1155-LAND CPU をソケットに挿入する前に、CPU の表面が汚れていない か、ソケットに曲がったピンがないか確認してください。上の状況が見つ かった場合、CPU をソケットに無理に挿入しないでください。CPU がひど く損傷します。 ステップ 1. ソケットを開く : ステップ 1-1. レバーをフックまで押し下げて 保持タブを取り外します。 ASRock Z68 Pro3-M Motherboard...
  • Seite 198 の方に向けます。ピン 1 と方向キー の 2 つの刻み目を探します。 方向キーの刻み目 位置合わせキー ピン 1 ピン 1 位置合わせキー 方向キーの刻み目 1155 ピンソケット 1155-LAND CPU 正しく挿入するために、CPU の 2 つの方向キーの刻み目がソケットの 2 つの 位置合わせキーに一致していることを確認してください。 ステップ 3-3. ソケットを完全に垂直移動するこ とによって、CPU をソケットに慎 重に配置します。 ステップ 3-4. CPU がソケット内部にあり、方向 キーに正しく一致していることを 確認します。 ASRock Z68 Pro3-M Motherboard...
  • Seite 199 (4 Places) け、ロックします。残りのファスナー についても、上の操作を繰り返します。 ファスナーを時計回りに回転せずに押すと、ヒートシンクはマザーボード に固定できません。 ステップ 5. ファンヘッダをマザーボードの CPU ファンコネクタに説明します。 ステップ 6. ケーブルがファン動作の邪魔をしたり他のコンポーネントに触れな いように、余分なケーブルをタイラップでまとめます。 このマザーボードはコンボクーラーオプション (C.C.O.) に対応しており、 Socket LGA 775、LGA 1155 と LGA 1156 の 3 つの異なる CPU クーラー タイプを採用できる、柔軟なオプションを用意しています。白い貫通穴は Socket LGA 1155/1156 CPU 用です。 ASRock Z68 Pro3-M Motherboard...
  • Seite 200 メモリーモジュール (DIMM) 取り付け Z68 Pro3-M マザーボードには、240 ピン DDR3 (Double Data Rate 3) DIMM 用 スロットが 4 カ所あり、デュアルチャンネルメモリーテクノロジーをサポートしています。デュ アルチャンネルコンフィギュレーションに関しては、常に同一 ( 同じメーカー、同じ速度、同 じサイズ、同じチップタイプ ) の DDR3 DIMM ペアを同じ色のスロットに取り付ける必要 が有ります。つまり、同一の DDR3 DIMM ペアをデュアルチャンネル A (DDR3_A1 およ び DDR3_B1、青色いスロット、2 ページの No.5 を参照 ) に挿入するか、同一の DDR3 DIMM ペアをデュアルチャンネル...
  • Seite 201 DIMM スロットが用意されています。 DIMM やシステムコンポーネントの着脱の前は電源が OFF になっているこ とを確認してください。 ステップ 1. 固定クリップを外側に押して DIMM スロットのロックを外します。 ステップ 2. DIMM のノッチがスロットの切れ目の位置に対応するように DIMM とスロット を合わせます。 notch break notch break DIMM は 1 つの正しい向きでのみ装着されるようになっています。DIMM を間違った向きでスロットに装着すると、マザーボードや DIMM に重大な 損傷がもたらされることがあります。 ステップ 3. 最後に、DIMM をスロットに挿入し、両端の固定クリップを所定の位置まで 戻して、DIMM をしっかり装着してください。 ASRock Z68 Pro3-M Motherboard...
  • Seite 202 2.4 拡張スロット(PCI スロット、PCI Express スロット) Z68 Pro3-M マザーボードには、PCI スロット 1 基、PCI Express スロット 3 基が備わっ ています。 PCI スロット : PCI スロットは、32 ビット PCI インターフェイスを持つ拡張 カードのインストールに使用します。 PCIE スロット : PCIE2 / PCIE3 (PCIE x1 スロット、白 ) は Gigabit LAN カー ド、SATA2 カードなど、PCI Express x1 レーン幅カードで使用さ...
  • Seite 203 デフォルト設定 CMOS の消去 注 : CLRCMOS1 により、CMOS のデータをクリアできます。システムパラメータをクリアしデフォルト設定にリ セットするには、コンピュータの電源をオフにし、電源装置から電源コードを抜いてください。15 秒待って から、ジャンパキャップを使用して CLRCMOS1 のピン 2 とピン 3 を 5 秒間ショートしてください。ただし、 BIOS 更新の後すぐには CMOS をクリアしないでください。BIOS の更新の終了後直ちに CMOS をクリア する必要がある場合、まずシステムを起動してからシャットダウンし、その後クリア CMOS アクションを実 行する必要があります。パスワード、日付、時刻、ユーザーデフォルトのプロファイルを忘れずにメモして ください。1394 GUID と MAC アドレスは、CMOS バッテリを取り外した場合のみ消去されます。 ASRock Z68 Pro3-M Motherboard...
  • Seite 204: Inhaltsverzeichnis

    つの USB 2.0 ポート以外に、この (9 ピン USB6_7) マザーボードに 3 つの USB 2.0 ページ2, アイテム 22 を参照 ヘッダが搭載されています。それ ぞれの USB 2.0 ヘッダは 2 つの USB 2.0 ポートをサポートできま (9 ピン USB8_9) す。 ページ2, アイテム 20 を参照 USB_PWR DUMMY USB_PWR ASRock Z68 Pro3-M Motherboard...
  • Seite 205 ハイディフィニションオーディオはジャックセンシングをサポー トしますが、正しく機能するためにシャーシのパネルワイヤが HAD をサポートする必要があります。このマニュアルとシャー シのマニュアルの指示に従って、システムを取り付けてくださ い。 AC’97 オーディオパネルを使用する場合、次のように前面パ ネルのオーディオヘッダに取り付けてください。 Mic_IN (MIC) を MIC2_L に接続します。 Audio_R (RIN) を OUT2_R に、Audio_L (LIN) を OUT2_L に接続します。 Ground (GND) を Ground (GND) に接続しま す。 MIC_RET と OUT_RET はオーディオパネル専用です。 AC’97 オーディオパネルに接続する必要はありません。 ASRock Z68 Pro3-M Motherboard...
  • Seite 206 PLED ( システム電源 LED): シャーシの前面パネルに付いている電源ステータスインジケータに接続しま す。LED は、システムが動作しているときに点灯します。LED はシステム が S1 スリープ状態のときに点滅します。システムが S3 または S4 スリープ状 態になるか、電源オフ (S5) になると、LED は消灯します。 HDLED ( ハードドライブアクティビティ LED): シャーシの前面パネルに付いているハードドライブアクティビティ LED に接続 します。LED は、ハードドライブがデータの読み込みまたは書き込み動作を しているときに点灯します。 前面パネルのデザインはシャーシによって異なります。前面パネルモジュール は、主に電源スイッチ、リセットスイッチ、電源 LED、ハードドライブア クティビティ LED、スピーカーなどから構成されています。シャーシの前面 パネルモジュールをこのヘッダに接続する際は、ワイヤとピンの割り当てが正 しく対応していることを確認してください。 ASRock Z68 Pro3-M Motherboard...
  • Seite 207 (4 ピン CPU_FAN1) +12V アースピンに接続してください。 ページ2, アイテム 2 を参照 1 2 3 4 このマザーボードでは 4 ピン CPU ファン ( クワイエットファン ) がサポートされていますが、 ファン速度コントロール機能がない場合でも、3 ピン CPU ファンは正常に作動します。3 ピン CPU ファンをこのマザーボードの CPU ファンコネクタに接続しようとしている場合、 ピン 1-3 に接続してください。 接続されたピン 1-3 3 ピンファンのインストール ASRock Z68 Pro3-M Motherboard...
  • Seite 208 (9 ピン COM1) ジュールをサポートします。 ページ2, アイテム 27 を参照 HDMI_SPDIF ヘッダ HDMI_SPDIF ヘッダは、SPDIF (2- ピン HDMI_SPDIF1) 音声出力を HDMI VGA カードに提 SPDIFOUT ページ2, アイテム 29 を参照 供し、システムで HDMI デジタル TV/ プロジェクタ /LCD デバイスに 接続できるようにします。HDMI VGA カードの HDMI_SPDIF コネク タを、このヘッダに接続してくださ い。 ASRock Z68 Pro3-M Motherboard...
  • Seite 209 XP 64-bit ビット OS をインストールする場合、次のステップに従ってください。 NCQ およびホットプラグ機能を搭載しない SATA / SATAII / SATA3 HDD デバイスを 使用する ステップ 1: セットアップ UEFI。 A. UEFI セットアップユーティリティ、詳細画面、SATA 構成に入ります。 B. 「SATA Mode」を [IDE] に設定し。 ® ステップ 2: システムに Windows XP / XP 64- ビット OS をインストールします。 ASRock Z68 Pro3-M Motherboard...
  • Seite 210 NCQ およびホットプラグ機能を搭載した SATA / SATAII / SATA3 HDD デバイスを使 用する ステップ 1: セットアップ UEFI。 A. UEFI セットアップユーティリティ、詳細画面、SATA 構成に入ります。 B. 「SATA Mode」を [AHCI] に設定し。 ® ステップ 2: システムに Windows 7 / 7 64- ビット / Vista / Vista 64 ビ ト OS をインストールします。 ASRock Z68 Pro3-M Motherboard...
  • Seite 211 7 / 7 64-bit / Vista / Vista bit / XP / XP 64-bit といった様々なマイクロソフト ウインドウズ オペレーティングシ ステムをサポートします。マザーボードに付属しているサポート CD はマザーボードの特徴 を有効にするために必要なドライバやユーティリティを含んでいます。サポート CD を使用 するには、CDROM ドライブに CD を挿入してください。AUTORUN 機能が有効な場合、自 動的にメインメニュウが立ち上がります。AUTORUN 機能が無効な場合、サポート CD 内の BIN フォルダにある ASSETUP.EXE をダブルクリックすることにより、メインメニュウが立ち 上がります。 ASRock Z68 Pro3-M Motherboard...
  • Seite 212 1. 主板簡介 謝謝你采用了華擎 Z68 Pro3-M 主板 , 本主板由華擎嚴格制造 , 質量可靠 , 穩定性好 , 能夠獲得卓越的性能。本安裝指南介紹了安裝主板的步驟。更加詳細的主板信息可參 看驅動光盤的用戶手冊。 由于主板規格和 BIOS 軟件將不斷升級 , 本手冊之相關內容變更恕不另 行通知。請留意華擎网站上公布的升級版本。你也可以在華擎網站找 到最新的顯卡和 CPU 支持表。 華擎网址:http://www.asrock.com 如果您需要與此主板有關的技術支持 , 請參觀我們的網站以了解您使用機 種的規格信息。 www.asrock.com/support/index.asp 1.1 包裝盒內物品 華擎 Z68 Pro3-M 主板 (Micro ATX 規格 : 9.6 英吋 X 9.6 英吋 , 24.4 厘米 X 24.4 厘米 ) 華擎...
  • Seite 213 - 通過 DVI、HDMI 和 DisplayPort 接口可播放 10800 線藍光光盤 (BD) / HD-DVD 光盤 音效 - 7.1 聲道高保真音頻 , 支持內容保護功能 (Realtek ALC892 音頻編解碼器 ) - 支持優質藍光音效 板載 LAN 功能 - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E ASRock Z68 Pro3-M Motherboard...
  • Seite 214 - 8 針 12V 電源接頭 - 前置音頻面板接頭 - 3 x USB 2.0 接口 ( 可支持 6 個額外的 USB 2.0 接口 ) BIOS - 64Mb AMI BIOS - AMI UEFI Legal BIOS,支持 GUI - 支持即插即用(Plug and Play,PnP) - ACPI 1.1 電源管理 ASRock Z68 Pro3-M Motherboard...
  • Seite 215 - 驅動程序 , 工具軟件 , 殺毒軟件(測試版本 ), 華擎軟件套裝 (CyberLink DVD 套件與 Creative Sound Blaster X-Fi MB) (OEM 與試用版 ) 獨家功能 - ASRock Extreme Tuning Utility (AXTU)(詳見警告 9) - 即時開機功能 - 華擎 Instant Flash(見警告 10) - 華擎 APP Charger(見警告 11) - SmartView(見警告 12)...
  • Seite 216 64 位元 /Vista 支持 HBR。 8、 在麥克風輸入方面,這款主板支持立體聲和單聲道這兩種模式。在音頻輸 出方面,這款主板支持 2 聲道、4 聲道、6 聲道以及 8 聲道模式。請查閱 第 3 頁的表格瞭解正確的連接方式。 9、 ASRock Extreme Tuning Utility (AXTU) 是一個多合一的工具,可在用戶 友好的界面中微調不同的系統功能,包括硬件監控、風扇控制、超頻、O C DNA 和 IES。在 Hardware Monitor(硬件監控)中,顯示系統的主要參數。 在 Fan Control(風扇控制)中,顯示風扇速度和溫度,以便您進行調整。 在 Overclocking(超頻)中,您可以對 CPU 進行超頻,以优化系統性能。 在 OC DNA 中,您可以將自己的 OC 設置保存為配置文件,并与您的朋友共...
  • Seite 217 消耗必須在 1.00W 以下。為滿足 Eu P 標準 , 您需要同時具備支持 E uP 的主 ® 板和支持 EuP 的電源供應器。根據 Intel 的建議 , 支持 EuP 的電源供應器 必須滿足在 100m A 電流消耗時 ,5V s b 電源效率高于 50%。有關支持 E u P 的 電源供應器選擇方面的更多細節 , 我們建議您諮詢電源供應器的製作商。 ASRock Z68 Pro3-M Motherboard...
  • Seite 218 請按下面的步驟操作。 Load Plate Load Lever ( 接觸隊列 ) ( 插槽體 ) Socket Body Contact Array 1155 針插槽圖 在您將 1155 針 CPU 嵌入插槽之前,請檢查 CPU 表面是否不潔或者插 槽上是否有歪斜的針腳。如果發現以上情形,切勿強行將 CPU 嵌入插 槽。否則,CPU 將會嚴重受損。 步驟 1. 掀開插槽: 步驟 1-1. 通過按壓和向外使力使杠杆脫離 挂鉤解開扣具。 ASRock Z68 Pro3-M Motherboard...
  • Seite 219 Sink,集成散熱片 ) 的一面朝上。 找到第 1 針和兩個方向標誌的凹 口。 方向標誌凹口 基準標誌 第 1 針 第 1 針 基準標誌 方向標誌凹口 1155 針插槽 1155 針 CPU 為了正確嵌入,請確保 CPU 的兩個方向標誌凹口與插槽的基準標誌對 齊。 步驟 3-3. 使用完全垂直的動作將 CPU 小心 地放置到插槽上。 步驟 3-4. 檢查 CPU 是否已經方向正確地放 入插槽內。 ASRock Z68 Pro3-M Motherboard...
  • Seite 220 ( 按壓 (4 位置 )) 安裝並鎖住。其餘的扣具也依次重復操作。 Press Down (4 Places) 如果您按壓扣具但沒有順時針方向旋轉,那么散熱片不能可靠地固定 到主板上。 步驟 5. 將風扇導線接頭接到主板上的 CPU 風扇接口。 步驟 6. 以打結方式安全處理過長的導線,確保不影響 風扇的運轉或者接觸其他部件。 請注意 : 本主板支持組合散熱器選項 (C.C.O.), 提供靈活的選項 , 讓您可使用三種不同的 CPU 散熱器類型 , 分別是 LGA775,LGA1155 與 LGA1156。白色的通孔是供 LGA1155/1156 CPU 風扇使用。 ASRock Z68 Pro3-M Motherboard...
  • Seite 221 和 DDR3_B1 或 DDR3_A2 和 DDR3_B2。 2. 如果僅僅在這款主板的 DDR3 DIMM 內存插槽上安裝單條內存模組或 者三條內存模組,這將無法激活雙通道內存技術。 3. 如果一對內存模組並未安裝在相同的“雙通道”上,例如將一對內存 模組安裝在了 DDR3_A1 和 DDR3_A2,這將不能激活雙通道內存技術。 4. 不允許將 DDR 或 DDR2 內存條插入 DDR3 插槽,否則主板和 DIMM 有可 能損壞。 5. 一些 16 晶片的 DDR3 1GB 雙面 DIMM 可能無法在此主板上使用。建議 您不要在此主板上安裝它們。 ASRock Z68 Pro3-M Motherboard...
  • Seite 222 安裝步驟: 請確保在添加或移走 DIMM 內存或系統部件之前切斷電源適配器。 1、 DIMM 插槽兩端的起拔器向外扳開。 2、 將每個 DIMM 插槽的凹口与 DIMM 內存上凸出部分對應,使凹口与凸出部 分吻合,內存即能正确安裝。 notch break notch break DIMM 內存只能以正確的方向安裝。如果你以錯誤的方向強行將 DIMM 內 存插入插槽 , 那將會導致主板和 DIMM 內存的永久性損壞。  3、 將 DIMM 內存平穩地插入插槽直至兩端卡子迅速而充分地歸位以及 DIMM 內存完全就位。 ASRock Z68 Pro3-M Motherboard...
  • Seite 223 PCIE2 / PCIE3 (PCIE x1 插槽 ; 白色 ) 用來安裝 PCIE x1 顯卡 , 例如 千兆網卡 , SATA2 卡等。 PCIE1 (PCIE x16 插槽 ; 藍色 ) 支持 PCI Express x16 顯卡。 安裝步驟: 步驟 1、 在安裝擴展卡之前,請確認已經關閉電源或拔掉電源線。在你安裝之前 , 請閱讀擴展卡的說明並完成必需的硬件設置。 步驟 2、 移動机箱擋板,以便使用擴展槽。 步驟 3、 選擇一個擴展槽安裝擴展卡,裝進机箱并用螺絲固定。 步驟 4、 确定接触正确,沒有單邊翹起的現象。 ASRock Z68 Pro3-M Motherboard...
  • Seite 224 線帽將 C L R C M O S1 上的插針 2 和插針 3 短接 5 秒。但是,請勿在更新 B I O S 后 立即清除 C M O S。如果需要在更新 B I O S 后立即清除 C M O S,必須在執行 C M O S 清除操作之前,先啟動然后關閉系統。請注意,只有取出 C M O S 電池,密碼、 日期、時間、用戶默認配置文件、1394 GUID 和 MAC 地址才會被清除。 ASRock Z68 Pro3-M Motherboard...
  • Seite 225: Sata2_2

    認 USB 2.0 接口之外,這款 (9 針 USB6_7) 主板有三組 USB 2.0 接針。 ( 見第 2 頁第 22 項 ) 這組 USB 2.0 接針可以支持 兩個 USB 2.0 接口。 (9 針 USB8_9) USB_PWR ( 見第 2 頁第 20 項 ) DUMMY USB_PWR ASRock Z68 Pro3-M Motherboard...
  • Seite 226: Usb_Pwr

    D. MIC_RET 和 OUT_RET 僅用于 HD 音頻面板。您不必將它們連接到 AC’97 音頻面板。 E. 開啟前置麥克風。 ® 在 Windows XP / XP 64 位元操作系統中 : 選擇”Mixer”。選擇”Recorder” 。接著點擊”FrontMic”。 ® 在 Windows 7 / 7 64 位元 / Vista / Vista 64 位元操作系 統中 : 在 Realtek 控制面板中點擊”FrontMic”。調節”Recording Volume”。 ASRock Z68 Pro3-M Motherboard...
  • Seite 227 ( 見第 2 頁第 18 項 ) 電源指示燈連接排針 請將機箱電源指示燈連接到 這一排針,以指示系統電源 (3 針 PLED1) PLED- PLED+ 狀態。當系統正在運行時, ( 見第 2 頁第 19 項 ) PLED+ LED 指示燈亮。在 S1 模式 下,LED 指示燈會不停閃 爍。在 S3/S4 或 S5 模式 ( 關 機 ) 下,LED 指示燈會熄滅。 ASRock Z68 Pro3-M Motherboard...
  • Seite 228 請將 ATX 電源供應器連接到這 個接頭。 (24 針 ATXPWR1) ( 見第 2 頁第 7 項 ) 雖然此主板提供 24-pin ATX 電源接口 , 但是您仍然可以使用 傳統的 20-pin ATX 電源。為了使用 20-pin ATX 電源 , 請順著 Pin 1 和 Pin 13 插上電源接頭。 20-Pin ATX 電源安裝說明 ASRock Z68 Pro3-M Motherboard...
  • Seite 229 ( 見第 2 頁第 27 項 ) HDMI_SPDIF 接頭 HDMI_SPDIF 接頭,提供 SPDIF 音頻輸出至 HDMI 顯卡,支持 (2 針 HDMI_SPDIF1) 將電腦連接至帶 HDMI 的數字 ( 見第 2 頁第 29 項 ) SPDIFOUT 電視 / 投影儀 / 液晶顯示器等 設備。請將 HDMI 顯卡的 HDMI_SPDIF 接口連接到這個 接頭。 ASRock Z68 Pro3-M Motherboard...
  • Seite 230 步驟 1: 設置 UEFI。 進入 UEFI SETUP UTILITY (UEFI 設置程序 ) → Advanced Screen ( 高級 界面 ) → SATA Configuration(SATA 配置 )。 將”SATA Mode”(SATA 模式 ) 設置為 [IDE]。 ® 步驟 2: 在系統上安裝 Windows XP /XP 64 位元操作系統。 ASRock Z68 Pro3-M Motherboard...
  • Seite 231 進入 UEFI SETUP UTILITY (UEFI 設置程序 ) → Advanced Screen ( 高級 界面 ) → SATA Configuration(SATA 配置 )。 將”SATA Mode”(SATA 模式 ) 設置為 [AHCI]。 ® 步驟 2: 在系統上安裝 Windows 7 / 7 64 位元 / Vista / Vista 64 位元操作系統。 ASRock Z68 Pro3-M Motherboard...
  • Seite 232 進行常規檢驗。如果你需要在開機自檢 ( P O S T ) 之后進入 B I O S 設置程序,請按下 <Ctrl>+<Alt>+<Delete> 鍵重新啟動電腦,或者按下系統面板上的重啟按鈕。有關 BIOS 設置的詳細信息,請查閱隨機支持光盤裡的用戶手冊 (PDF 文件 )。 4. 支持光盤信息 ® ® 本主板支持各種微軟視窗操作系統:Microsoft Windows 7/7 64 位元 /Vista Vista 64 位元 /XP/XP 64 位元。主板隨機支持光盤包含各種有助于提高主板效能的 必要驅動和實用程序。請將隨機支持光盤放入光驅裡,如果電腦的“自動運行”功能 已啟用,屏幕將會自動顯示主菜單。如果主菜單不能自動顯示,請查找支持光盤內 BIN 文件夾下的“ASSETUP.EXE”,并雙擊它,即可調出主菜單。 ASRock Z68 Pro3-M Motherboard...
  • Seite 233 明。 有害物質或元素 部件名稱 鉛 (Pb) 鎘 (Cd) 汞 (Hg) 六价鉻 (Cr(VI)) 多溴聯苯 (PBB) 多溴二苯醚 (PBDE) 印刷電路板 及電子組件 外部信號連 接頭及線材 O: 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363-2006 標準規定 的限量要求以下。 X: 表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標準 規定的限量要求,然該部件仍符合歐盟指令 2002/95/EC 的規範。 備註 : 此產品所標示之環保使用年限,系指在一般正常使用狀況下。 ASRock Z68 Pro3-M Motherboard...
  • Seite 234 如果您需要與此主機板有關的技術支援 , 請參觀我們的網站以了解您使用 機種的規格訊息。 www.asrock.com/support/index.asp 1.1 包裝盒內物品 華擎 Z68 Pro3-M 主機板 (Micro ATX 規格 : 9.6 英吋 x 9.6 英吋 , 24.4 公分 x 24.4 公分 ) 華擎 Z68 Pro3-M 快速安裝指南 華擎 Z68 Pro3-M 支援光碟 兩條 Serial ATA(SATA) 數據線 ( 選配 ) 一塊...
  • Seite 235 - DVI、HDMI 和 DisplayPort 接口支援 HDCP 功能 - DVI、HDMI 和 DisplayPort 接口可播放 1080p 藍光光碟 (BD) / HD-DVD 光碟 音效 - 7.1 聲道高清晰音效 , 支援內容保護功能 (Realtek ALC892 音效編解碼器 ) - 支援高級藍光音效 網路功能 - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E ASRock Z68 Pro3-M Motherboard...
  • Seite 236 - 前置音效接頭 - 3 x USB 2.0 接頭 ( 可支援 6 個額外的 USB 2.0 接口 ) BIOS - 64Mb AMI BIOS - AMI UEFI Legal BIOS ( 支援 GUI) - 支援即插即用(Plug and Play,PnP) - ACPI 1.1 電源管理 ASRock Z68 Pro3-M Motherboard...
  • Seite 237: 獨家功能 - Asrock Extreme Tuning Utility (Axtu)(詳見警告

    - 驅動程式 , 工具軟體 , 防毒軟體(試用版本 ), 華擎軟體 套餐 (CyberLink DVD 套餐與 Creative Sound Blaster X-Fi MB)(OEM 與試用版本 ) 獨家功能 - ASRock Extreme Tuning Utility (AXTU)(詳見警告 9) - 即時開機功能 - 華擎 Instant Flash(見警告 10) - 華擎 APP Charger(見警告 11) - SmartView(見警告 12)...
  • Seite 238 64 位元 /Vista 支援 HBR。 8、 在麥克風輸入方面,這款主機板支援立體聲和單聲道這兩種模式。在音 效輸出方面,這款主機板支援 2 聲道、4 聲道、6 聲道以及 8 聲道模式。 請參閱第 3 頁的表格瞭解正確的連接方式。 9、 ASRock Extreme Tuning Utility (AXTU) 是一款多合一的工具,易於操 作的使用者介面便於微調不同的系統功能(例如:Hardware Monitor、 Fan Control、Overclocking、OC DNA 及 IES)。Hardware Monitor 可顯 示系統的主要讀數;Fan Control 可顯示並可供您調整風扇速度及溫度; Overclocking 可供您進行 CPU 超頻以獲得最佳系統效能。透過 OC DNA,...
  • Seite 239 18、 EuP, 全稱 Energy Using Product( 能耗產品 ), 是歐盟用來定義完整系統耗 電量的規定。根據 EuP 的規定 , 一個完整系統在關機模式下的交流電總消耗 必須在 1.00W 以下。為符合 EuP 標準 , 您需要同時具備支援 EuP 的主機板和 ® 支援 EuP 的電源供應器。根據 Intel 的建議 , 支援 EuP 的電源供應器必須 符合在 100mA 電流消耗時 ,5Vsb 電源效率高於 50%。有關支援 EuP 的電源供 應器選擇方面的詳情 , 我們建議您諮詢電源供應器的製造商。 ASRock Z68 Pro3-M Motherboard...
  • Seite 240 ( 承載金屬框 ) Load Plate Load Lever ( 插槽 ) ( 接觸列 ) Socket Body Contact Array 1155 針插槽圖 在您將 1155 針 CPU 嵌入插槽之前,請檢查 CPU 表面是否不潔或者插 槽上是否有歪斜的針腳。如果發現以上情形,切勿強行將 CPU 嵌入插 槽。否則,CPU 將會嚴重受損。 步驟 1. 掀開插槽: 步驟 1-1. 按壓並向外使力使杠桿脫離掛鉤 解開扣具。 ASRock Z68 Pro3-M Motherboard...
  • Seite 241 Sink,散熱片 ) 的一面朝上。找 到第 1 針和兩個方向標誌的凹口。 方向標誌凹口 基準標誌 第 1 針 第 1 針 基準標誌 方向標誌凹口 1155 針插槽 1155 針 CPU 為了正確嵌入,請確認 CPU 的兩個方向標誌凹口與插槽的基準標誌對 齊。 步驟 3-3. 使用完全垂直的動作將 CPU 小心 地放置到插槽上。 步驟 3-4. 檢查 CPU 是否已經方向正確地放 入插槽內。 ASRock Z68 Pro3-M Motherboard...
  • Seite 242 (4 Places) ( 按壓 (4 位置 )) 如果您按壓扣具但沒有順時針方向旋轉,那麼散熱片將無法穩固地固 定到主機板上。 步驟 5. 將風扇導線接頭接到主機板上的 CPU 風扇接 口。 步驟 6. 以打結方式安全處理過長的導線,以確保不影 響風扇的運轉或者接觸其他部件。 請注意 : 本主機板支援組合散熱片選項 (C.C.O.) 提供具有彈性的選 項 , 讓您可使用三種不同的 CPU 散熱片類型 , 分別是 LGA775,LGA1155 與 LGA1156。白色的穿孔是供 LGA1155/1156 CPU 風扇使用。 ASRock Z68 Pro3-M Motherboard...
  • Seite 243 和 DDR3_B1 或 DDR3_A2 和 DDR3_B2。 2. 如果僅僅在這款主機板的 D D R3 記憶體插槽上安裝單條記憶體或者三 條記憶體,這將無法啟動雙通道記憶體技術。 3. 如果一對記憶體並未安裝在相同的“雙通道"上,例如將一對記憶體 安裝在 DDR3_A1 和 DDR3_A2,這將不能開啟雙通道記憶體技術。 4. 請勿將 DDR 或 DDR2 記憶體插入 DDR3 插槽,否則主機板和 DIMM 有可 能損壞。 5. 某些包含 16 晶片的 D D R3 1G B 雙面記憶體可能無法在此主機板上運 作。不建議在此主機板上安裝此類記憶體。 ASRock Z68 Pro3-M Motherboard...
  • Seite 244 安裝步驟: 請確保在增加或移除記憶體或系統組件之前切斷電源適配器。 1、 記憶體插槽兩端的起拔器向外扳開。 2、 將每個記憶體插槽的凹口与記憶體上凸出部分對應,使凹口与凸出部 分吻合,記憶體即能正確安裝。 notch break notch break 您的記憶體只能以正確的方向安裝。如果以錯誤的方向強行將記憶體插 入插槽 , 那將會導致主機板和記憶體的永久性損壞。  3、 將記憶體平穩地插入插槽直至兩端卡子迅速而完全地歸位以及記憶體完 全就位。 ASRock Z68 Pro3-M Motherboard...
  • Seite 245 PCIE2 / PCIE3 (PCIE x1 插槽 ; 白色 ) 用來安裝 PCIE x1 顯示卡 , 例 如千兆網卡 , SATA2 卡等。 PCIE1 (PCIE x16 插槽 ; 藍色 ) 支援 PCI Express x16 顯示卡。 安裝步驟: 步驟 1、 在安裝擴充卡之前,請確認已經關閉電源或拔掉電源線。在您安裝之前 , 請閱讀擴充卡的說明並完成必需的硬體設置。 步驟 2、 移動機箱擋板,以便使用擴充槽。 步驟 3、 選擇一個擴充槽安裝擴充卡,裝進機箱並用螺絲固定。 步驟 4、 確定接觸正確,沒有單邊翹起的現象。 ASRock Z68 Pro3-M Motherboard...
  • Seite 246 註: C L R C M O S1 可供您清除 C M O S 中的資料。若要清除及重設系統參數並恢復為預設設 定,請先關閉電腦電源,並從電源插座中拔下電源線,等待 15 秒鐘之後,使用跳 線帽使 CLRCMOS1 的 pin2 及 pin3 短路 5 秒的時間。但請勿於更新 BIOS 後立即清除 CMOS。如需於更新 BIOS 後立即清除 CMOS,您必須先開機再關機,然後再執行 CMOS 清除操作。請注意,只有在移除 C M O S 電池的情況下,密碼、日期、時間、使用者 預設設定檔、1394 GUID 及 MAC 位址才會清除。 ASRock Z68 Pro3-M Motherboard...
  • Seite 247 USB 2.0 接口之外,這款 (9 針 USB6_7) 主機板有三組 USB 2.0 接 ( 見第 2 頁第 22 項 ) 針。每組 USB 2.0 接針可以 支援兩個 USB 2.0 接口。 USB_PWR (9 針 USB8_9) ( 見第 2 頁第 20 項 ) DUMMY USB_PWR ASRock Z68 Pro3-M Motherboard...
  • Seite 248 D. MIC_RET 和 OUT_RET 僅用於 HD 音效面板。您不必將它們連接到 AC'97 音效面板。 E. 開啟前置麥克風。 ® 在 Windows XP / XP 64 位元作業系統中 : 選擇"Mixer"。選擇"Recorder" 。接著點選"FrontMic"。 ® 在 Windows 7 / 7 64 位元 / Vista / Vista 64 位元作業系 統中 : 在 Realtek 控制面板中點選"FrontMic"。調整"Recording Volume"。 ASRock Z68 Pro3-M Motherboard...
  • Seite 249 ( 見第 2 頁第 18 項 ) 電源指示燈接頭 請將機箱電源指示燈連接到 此接頭,以指示系統電源狀 (3 針 PLED1) PLED- PLED+ 態。當系統正在運行時, ( 見第 2 頁第 19 項 ) PLED+ LED 指示燈亮。在 S1 模式 下,LED 指示燈會不停閃 爍。在 S3/S4 或 S5 模式 ( 關 機 ) 下,LED 指示燈會熄滅。 ASRock Z68 Pro3-M Motherboard...
  • Seite 250 個接頭。 (24 針 ATXPWR1) ( 見第 2 頁第 7 項 ) 雖然此主機板提供 24-pin ATX 電源接口 , 但是您仍然可以使 用傳統的 20-pin ATX 電源。為了使用 20-pin ATX 電源 , 請順 著 Pin 1 和 Pin 13 插上電源接頭。 20-Pin ATX 電源安裝說明 ASRock Z68 Pro3-M Motherboard...
  • Seite 251 音 效 輸 出 至 H D M I 顯 示 卡, 支 (2 針 HDMI_SPDIF1) SPDIFOUT 援將電腦連接至帶 HDMI 的數 ( 見第 2 頁第 29 項 ) 位電視 / 投影機 / 液晶銀幕等 設備。請將 HDMI 顯示卡的 HDMI_SPDIF 接口連接到這個 接頭。 ASRock Z68 Pro3-M Motherboard...
  • Seite 252 步驟 1: 設置 UEFI。 進入 UEFI SETUP UTILITY (UEFI 設置程序 ) → Advanced Screen ( 進階 界面 ) → SATA Configuration(SATA 配置 )。 將"SATA Mode"(SATA 模式 ) 設置為 [IDE]。 ® 步驟 2: 在系統上安裝 Windows XP / XP 64 位元操作系統。 ASRock Z68 Pro3-M Motherboard...
  • Seite 253 進入 UEFI SETUP UTILITY (UEFI 設置程序 ) → Advanced Screen ( 進階 界面 ) → SATA Configuration(SATA 配置 )。 將"SATA Mode"(SATA 模式 ) 設置為 [AHCI]。 ® 步驟 2: 在系統上安裝 Windows 7 / 7 64 位元 / Vista / Vista 64 位元操作系統。 ASRock Z68 Pro3-M Motherboard...
  • Seite 254 運行需要時,測試和初始化元件。有關 B I O S 設置的詳細訊息,請查閱隨機支援光碟 裡的使用手冊 (PDF 文件 )。 4. 支援光碟訊息 ® ® ® 本主板支援各種微軟 Windows 操作系統:Microsoft Windows 7/7 64 位元 / Vista /Vista 64 位元 /XP/XP 64 位元。主板附帶的支援光碟包含各種有助於提高主 板效能的必要驅動和實用程式。請將隨機支援光碟放入光碟機裡,如果系統的“自動 運行"功能已啟用,銀幕將會自動顯示主菜單。如果主菜單不能自動顯示,請查閱支 援光碟內 BIN 文件夾下的 ASSETUP.EXE 文件並雙點它,即可調出主菜單。 ASRock Z68 Pro3-M Motherboard...
  • Seite 255 “UEFI:xxx“ to boot. ® 4. Start Windows installation. ® 5. If you install Windows 7 64-bit OS, OS will be formatted by GPT (GUID Partition ® Table). Please install the hotfi x fi le from Microsoft http://support.microsoft.com/kb/979903 ASRock Z68 Pro3-M Motherboard...
  • Seite 256 Rapid Storage Technology driver in the near future. For the new version Rapid Storage Technology driver, please check our website for the latest information: http://www.asrock.com 3. We provide Cyberlink MediaEspresso 6.5 Trial, which is located in the following path of our support CD: ..\Utilities\MediaEspresso\CyberLink\Win7-64_Win7_ Vista64_Vista_XP64_XP(v6.5)\setup.exe...
