Powerware 9125 (9910 P30) Installation Guide for IBM
5.
Repeat Steps 3 and 4 for the other rail.
6.
Tighten assembly wing nuts on both rail assemblies.
7.
Place the UPS on a flat, stable surface with the front of the UPS facing toward you.
8.
Attach the mounting handles to the mounting brackets with the screws provided in the
P30 or EBM accessory kit (see Figure 5).
Applications S 164201544 Rev A Final 29-Jun-2004
®

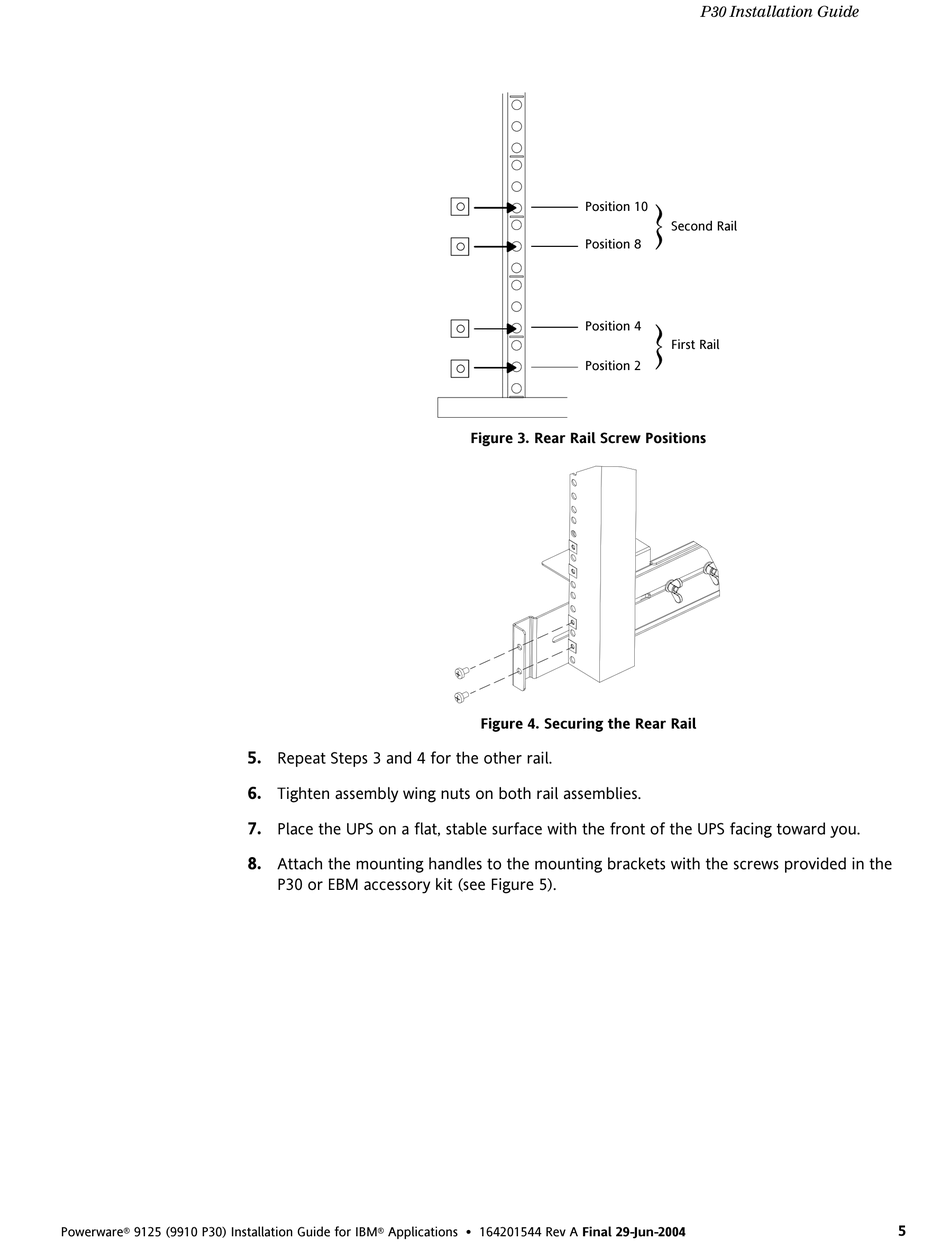

Position 10
Position 8
Position 4
Position 2
Figure 3. Rear Rail Screw Positions
Figure 4. Securing the Rear Rail
P30 Installation Guide
Second Rail
First Rail
5
