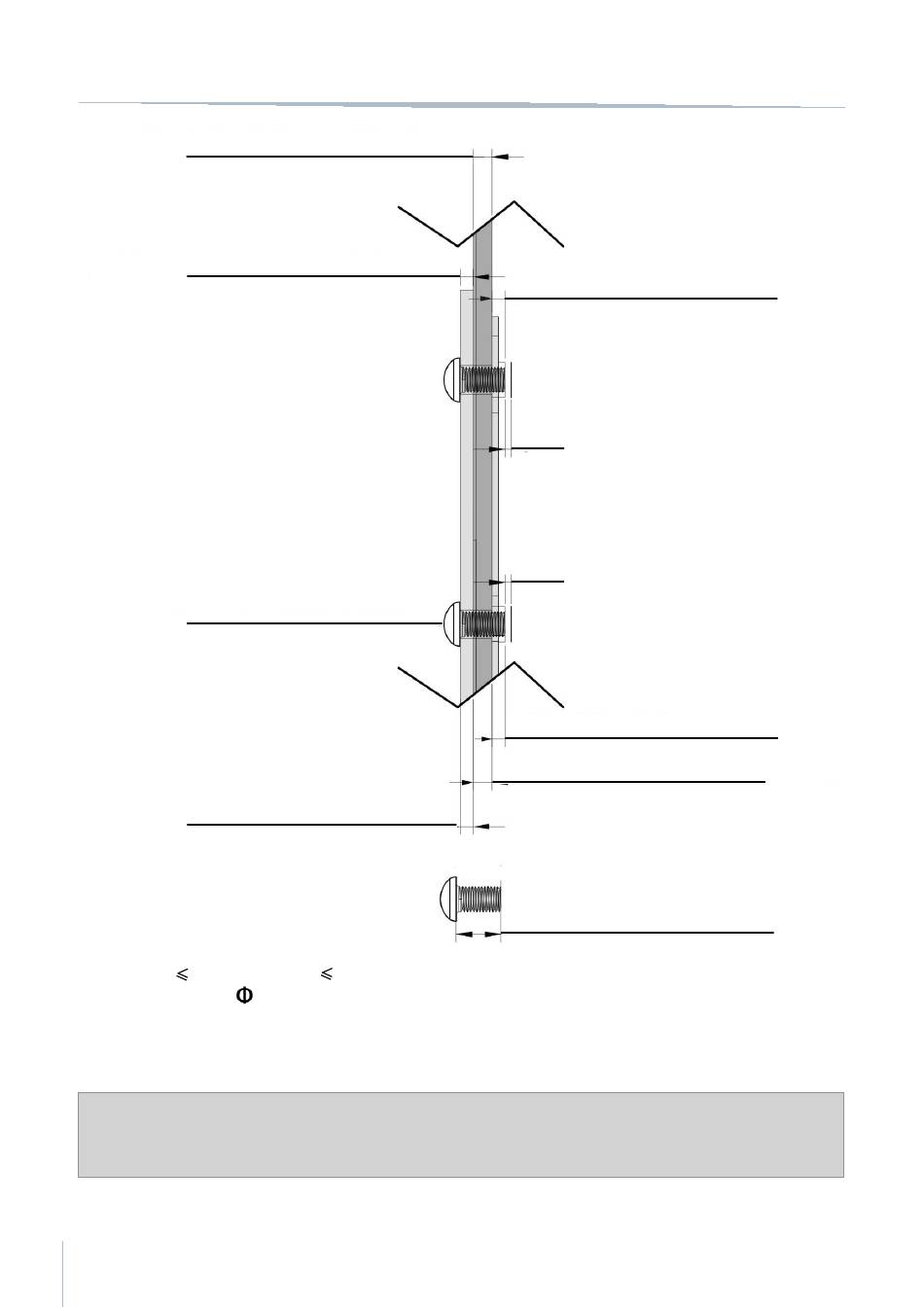

Screw Specification for VESA Plate Stand or Wall Mount

Plastic back cover of monitor
1. (B)+5mm Screw Length (A)
2. Mechanical Screw
Caution: Please follow the Screw Specification in diagram while you assembling
8
VESA plate stand or wall mount
Screw for VESA 75/100
(B) mm
(VESA plate stand or
wall mount depth, depend
on application)
(B)+6mm
4 mm
VESA Plate stand or Wall Mount Plate into monitor back cover.
Otherwise, It may cause a mechanical damage.
Inner metal housing of monitor
1mm
1mm
Metal depth 2mm
Plastic back cover depth 3mm
Screw length (A) mm
