User´s Manual 17" Touch Screen Monitor

Hardware Installation

Be careful with your new LCD monitor, the monitor is very sophisticated and delicate. Turn off the
monitor and the PC before you set it up. Follow the installation step by step.

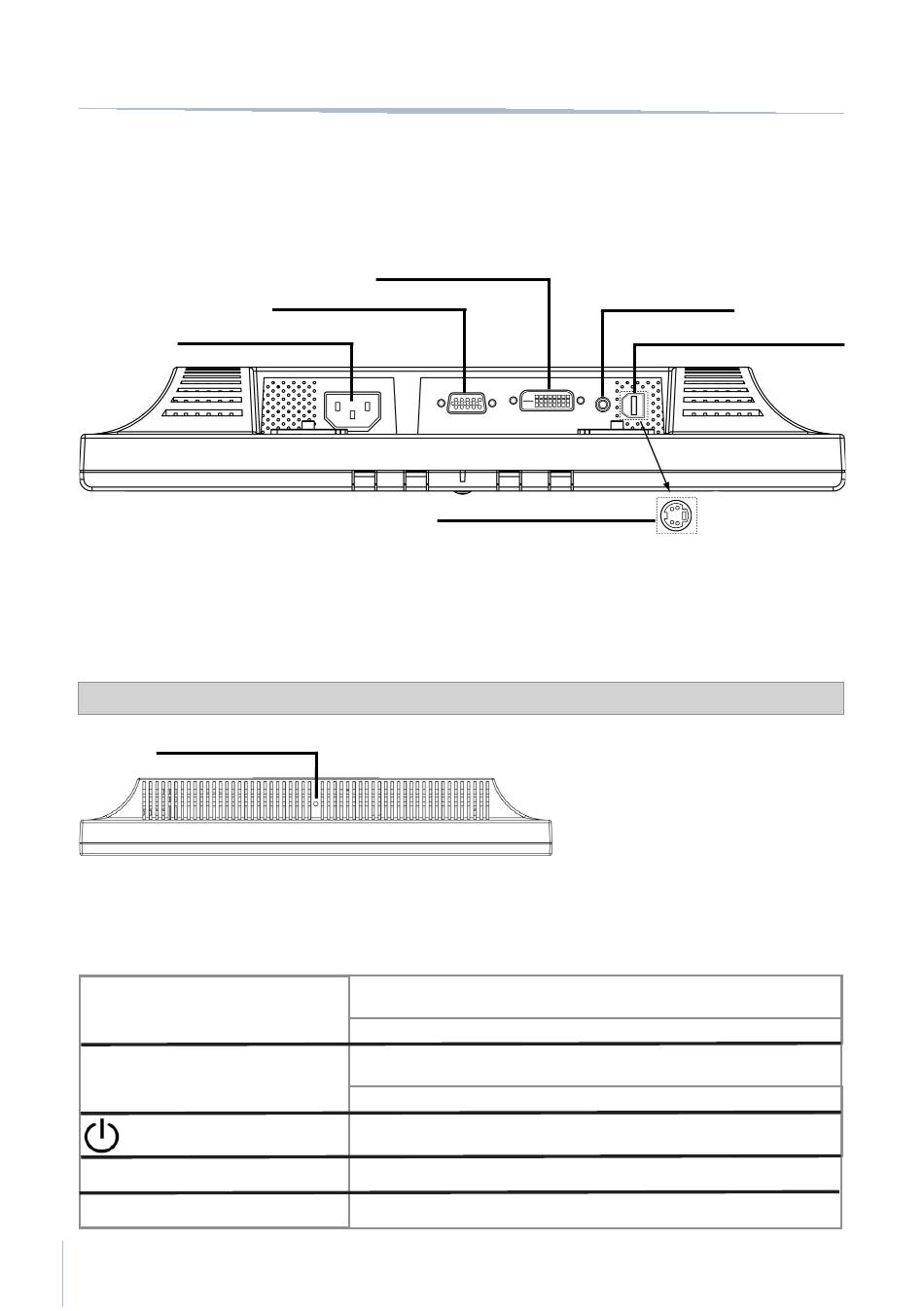

Input

AC Input: This is for connecting the power cable.
VGA port: This can be connected with the D-Sub 15 pin signal cable.
DVI port: This can be connected with the DVI signal cable. (Optional)
Audio In: This can be connected to the PC audio-out connector of sound resource.
Touch Panel Interface: USB
Touch Panel Interface: PS/2 to RS-232 interface. (Optional)
Touch Panel Interface

Control Buttons

There are 5 keys for user to set up the monitor, including "Auto Adjust", "OSD menu", "Power", "Adjust
<->", "Adjust <+>". The following descriptions are the introduction of these Keys.
A - Auto Adjust (Function)
M - Menu (Function)
Power
- -
Adjust < >:
+ +
Adjust <
6
VGA port
AC Input
*NOTICE: DVI and Audio functions are optional features.
Function Select Button: This button allows you to select the control
functions up in the OSD.
Hotkey: Press this button to apply the monitor setting automatically.
Function Select Button: This button allows you to select the control
functions down in the OSD.
Hotkey: Press this button to get a pop-up OSD menu.
Turn the LCD power on and off. When the power is on, the light is
showing green,Stand by will be orange.
Decrease the option value in the OSD menu.
Increase the option value in the OSD menu.
>:
DVI port
Touch Panel Interface PS/2
Audio In
Touch Panel Interface USB
