User´s Manual 17" Touch Screen Monitor

Calibration Guide for Touch Panel

4 points calibration

1. The touch screen needs to be calibrated before it can work accurately. Whenever feeling the accuracy
is loosing, user can proceed another calibration to reset or adjust the touch screen.
2. By pressing this button, a new window will pop up at the location to where the touch screen was

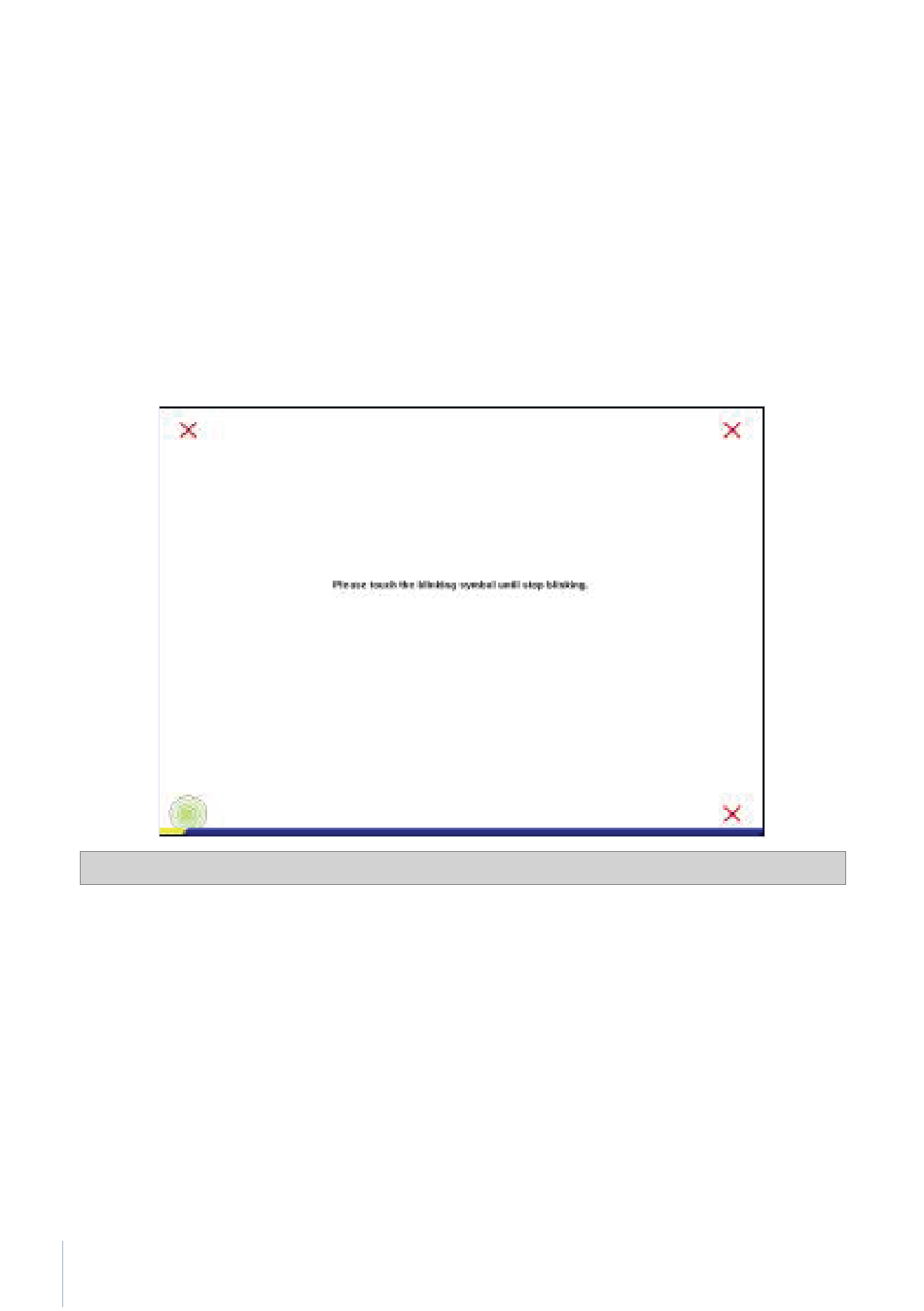

mapped and guide the user to operate the 4 points calibration. Screen as shown below.
3. User should follows the guide to touch and hold the blinking X symbol in the calibration window
until it does not blink and make sure the utility can gather enough data for computation. In addition,
a time line bar would be shown at the bottom of the window to indicate time elapsed. If the touch
screen was not touched before the time line bar goes to the right end, the calibration task will be
termzinated automatically.

Linearization

1. Linearization ( 25 or 9 points calibration ) function is used to compensate the touch screen linearity.
After linearization completed, the linearity of the touch screen will be shown in the Linearity curve
window.
2. By pressing this button, a new window will pop up at the location to where the touch screen was
mapped and guide the user to proceed the 25 points calibration. User should follows the guide to
touch and hold the blinking X symbol in the calibration window until it does not blink and make sure
the utility can gather enough data for computation. In addition, a time line bar would be shown at
the bottom of the window to indicate time elapsed. If the touch screen was not touched before the
time line bar goes to the right end, the calibration task will be terminated automatically.
10
Touch the blinking symbol on panel until beep or stop blinking.
