MaxION

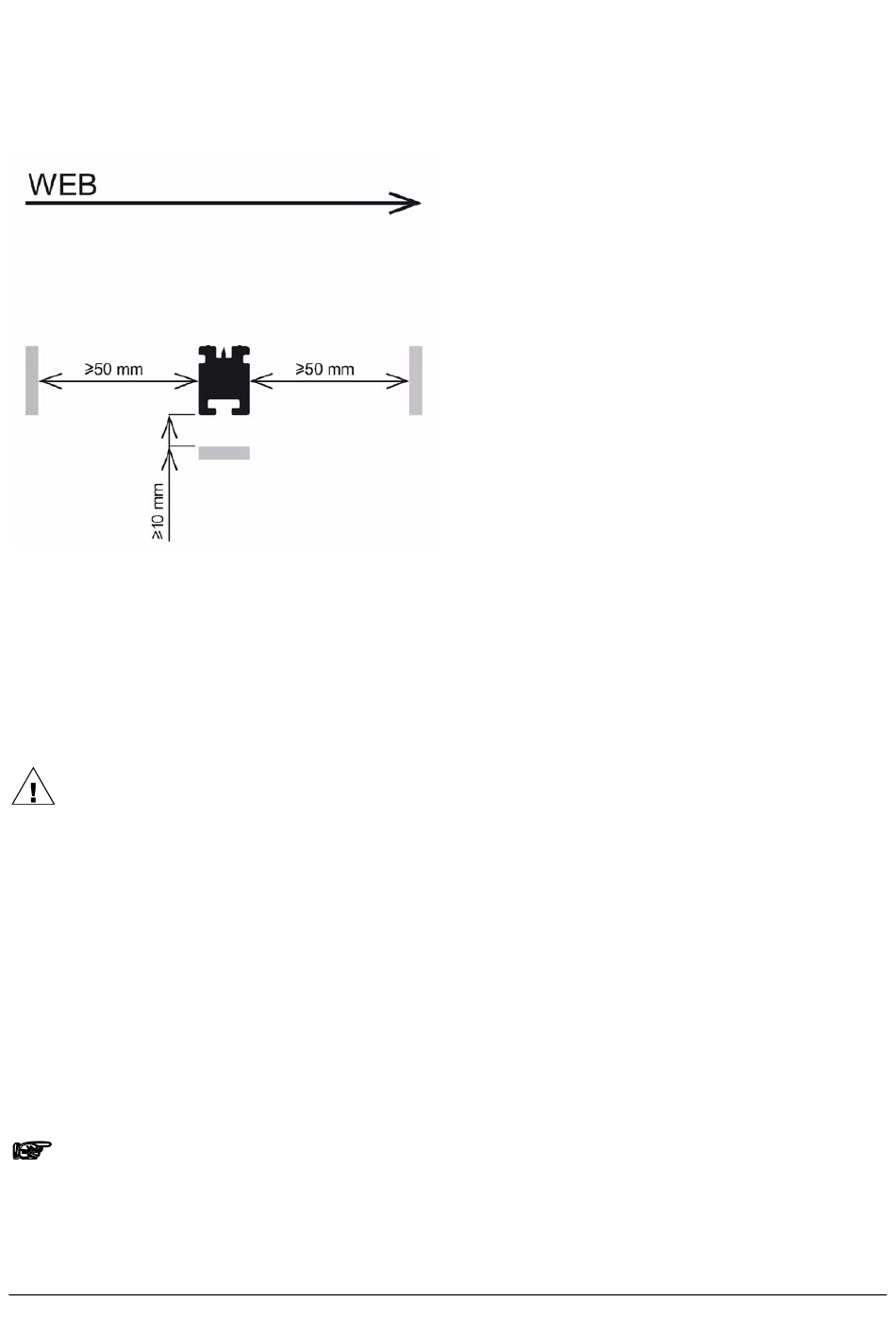

To ensure proper functioning, the sides of the bar must be at least 50 mm, and the rear of the
bar at least 10 mm, away from any metal.
− MaxION: The mounting screws in the sliding nuts must be hand tightened. If the
screws are turned too tightly, the plastic profile will become damaged.
− Do not lay non-shielded high-voltage cables alongside sharp metal parts.
− Do not kink the high voltage cables and do not lay them in sharp curves.
5.2.2. Mounting
Warning:
− Do not lay HV cables along sharp metal parts or in sharp bends and do not kink them
− When connecting non-metal shielded HV cables to a biphase power unit, the HV
cables connected to the various transformers may not be crossed and must be laid at
least 1 cm apart. Non-compliance with this rule will have negative influences on the HV
cable.
− Fit the anti-static bar with the emitter points towards the material to be discharged.
− Use the mounting materials included in the supply.
− Make sure the equipment is properly earthed.
(The MaxION is earthed by way of the power unit via the shielded cable)
− Using the assembly clamps supplied, fix the HV cable alongside the machine frame.
− Connect the HV cable to the power unit,
see the power unit manual.
Check that the output voltage of the power unit is correct.
