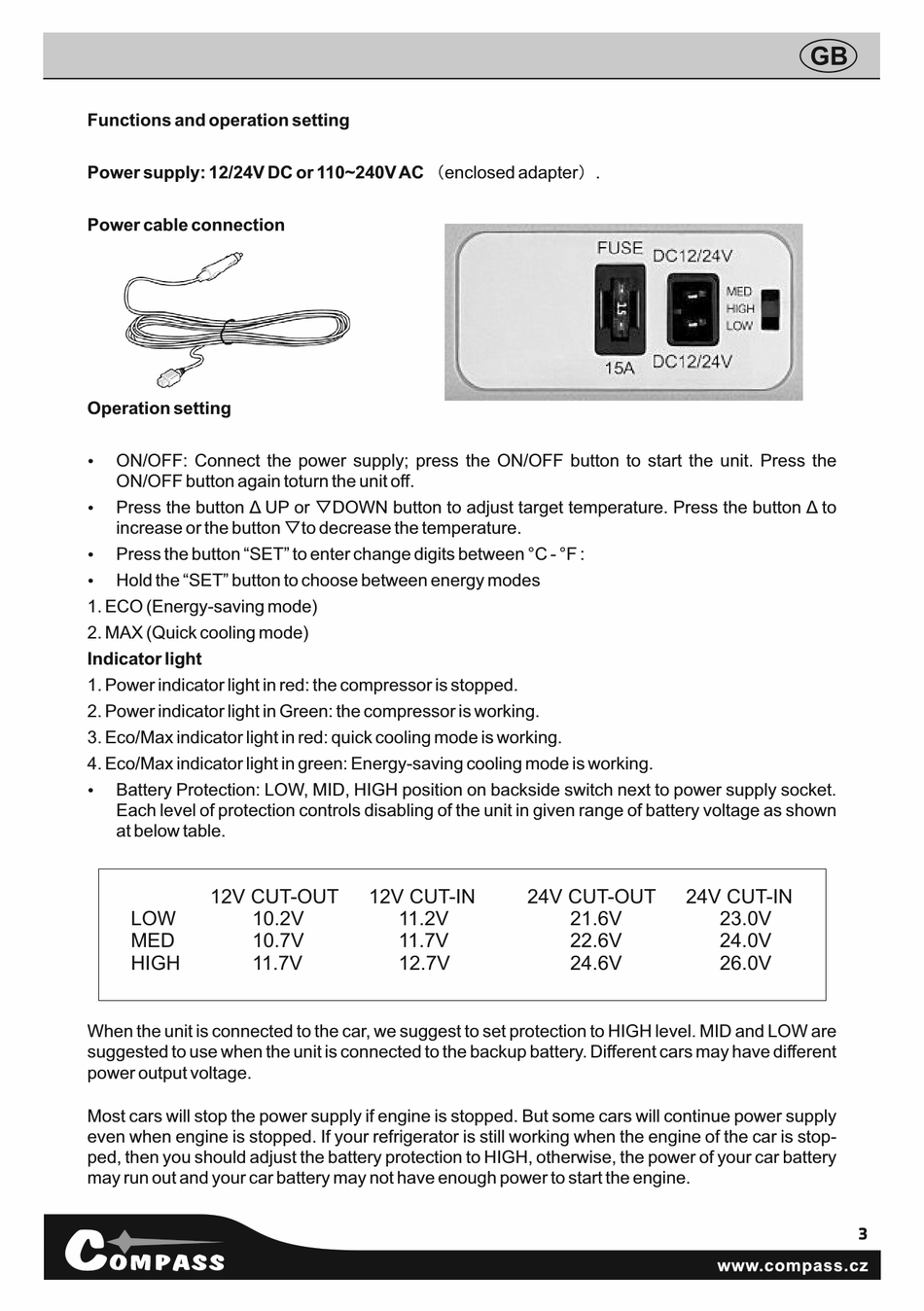

Functions and operation setting
Power supply: 12/24V DC or 110~240V AC （enclosed adapter）.
Power cable connection
Operation setting
ON/OFF: Connect the power supply; press the ON/OFF button to start the unit. Press the
ź
ON/OFF button again toturn the unit off.
Press the button Δ UP or ▽DOWN button to adjust target temperature. Press the button Δ to
ź
increase or the button ▽to decrease the temperature.
Press the button "SET" to enter change digits between °C - °F :
ź
Hold the "SET" button to choose between energy modes
ź
1. ECO (Energy-saving mode)
2. MAX (Quick cooling mode)
Indicator light
1. Power indicator light in red: the compressor is stopped.
2. Power indicator light in Green: the compressor is working.
3. Eco/Max indicator light in red: quick cooling mode is working.
4. Eco/Max indicator light in green: Energy-saving cooling mode is working.
Battery Protection: LOW, MID, HIGH position on backside switch next to power supply socket.
ź
Each level of protection controls disabling of the unit in given range of battery voltage as shown
at below table.
12V CUT-OUT
LOW 10.2V
MED 10.7V
HIGH 11.7V
When the unit is connected to the car, we suggest to set protection to HIGH level. MID and LOW are
suggested to use when the unit is connected to the backup battery. Different cars may have different
power output voltage.
Most cars will stop the power supply if engine is stopped. But some cars will continue power supply
even when engine is stopped. If your refrigerator is still working when the engine of the car is stop-
ped, then you should adjust the battery protection to HIGH, otherwise, the power of your car battery
may run out and your car battery may not have enough power to start the engine.
12V CUT-IN 24V CUT-OUT
11.2V
11.7V
12.7V
24V CUT-IN
21.6V 23.0V
22.6V 24.0V
24.6V 26.0V
