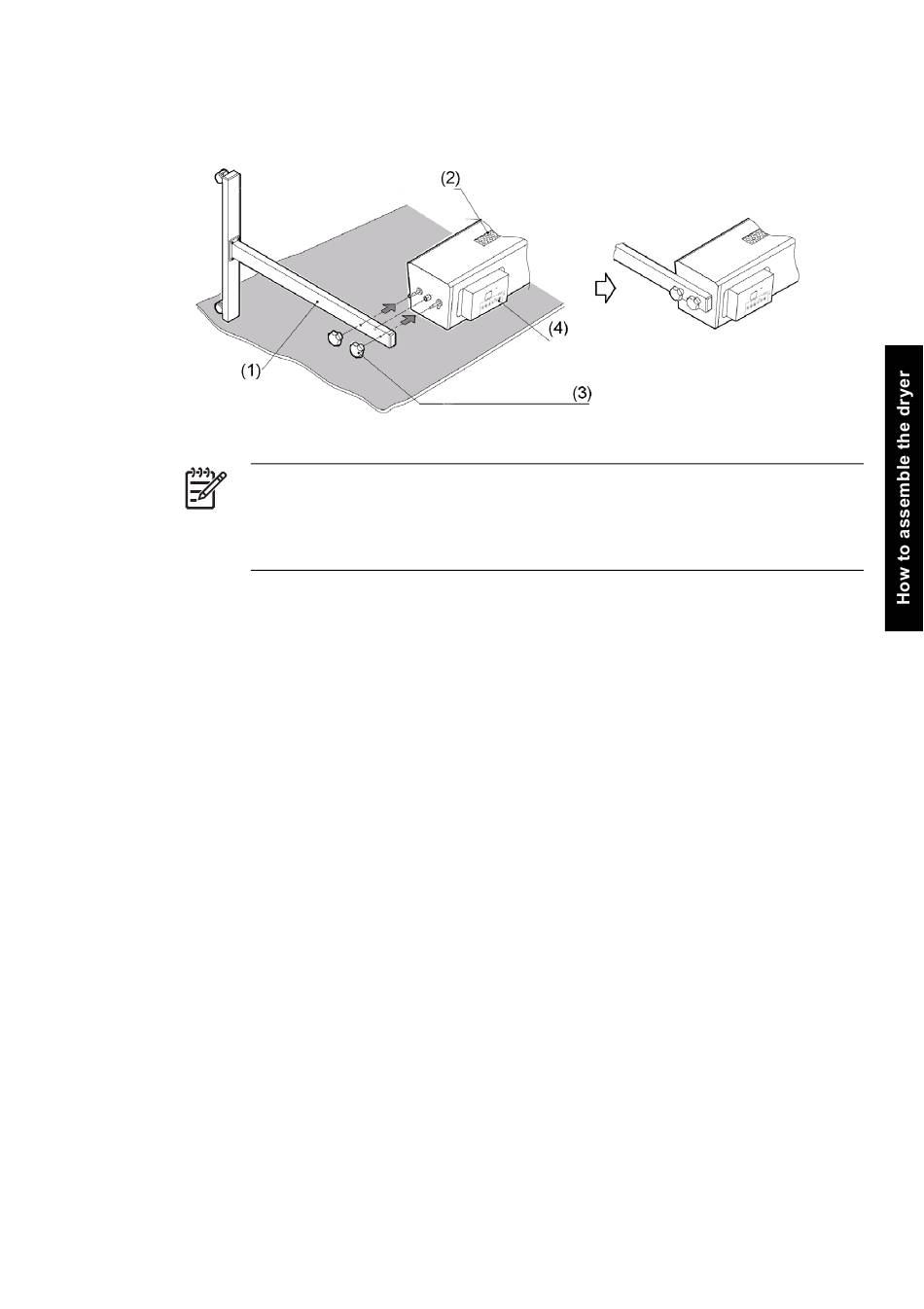

5. Secure the stands (1) to the dryer unit (2) with the knobs (3) (two at each side) as shown below.
NOTE Attach the stands in such a way that the operation panel (4) on the dryer unit will
be face up when the dryer is raised into its standing position.
Attach the stands in such a way that the holes in the stands face inwards; they will be
used to attach the support stay.
6. When the stands are attached to the dryer unit, lift the whole dryer into the upright position,
standing on its feet.
ENWW Assembly procedure 7
