Dymo LabelWriter 4XL Erste Schritte Seite 5

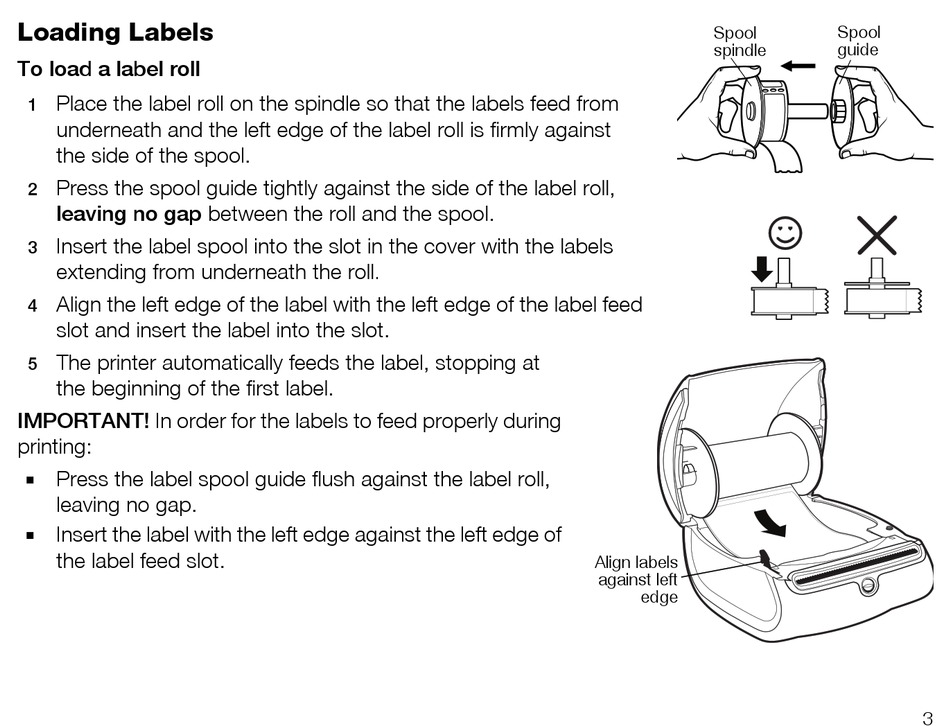

Loading Labels
To load a label roll
Place the label roll on the spindle so that the labels feed from
1
underneath and the left edge of the label roll is firmly against
the side of the spool.
Press the spool guide tightly against the side of the label roll,
2
leaving no gap between the roll and the spool.
Insert the label spool into the slot in the cover with the labels
3
extending from underneath the roll
Align the left edge of the label with the left edge of the label feed
4
slot and insert the label into the slot.
The printer automatically feeds the label, stopping at
5
the beginning of the first label.
IMPORTANT! In order for the labels to feed properly during
printing:
Press the label spool guide flush against the label roll,

leaving no gap.
Insert the label with the left edge against the left edge of

the label feed slot.
.
Spool
spindle
Align labels
against left
edge
Spool
guide
3
