Seite 1

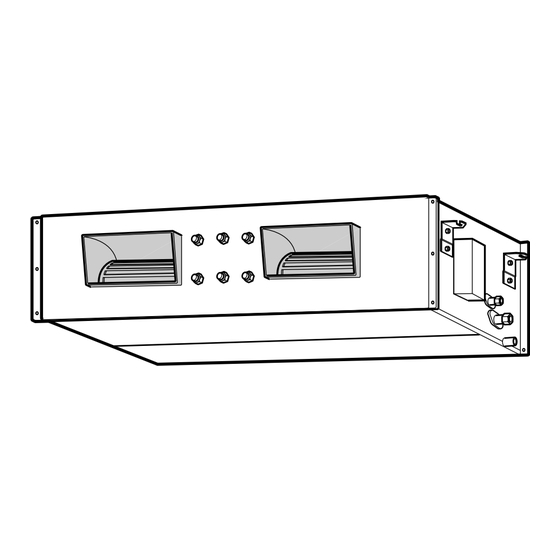

Indoor Unit (2 Series) Type: Ceiling Concealed Duct- High Static OPERATING TEMPERATURE(°C) COOLING MODE INDOOR OUTDOOR MAX. MIN. MAX. MIN. 32°C 21°C 43°C 21°C HEATING MODE INDOOR OUTDOOR MAX. MIN. MAX. MIN. 27°C 20°C 24°C 1°C IMPORTANT • Please read this owner's manual carefully and thoroughly before installing and operating your room air conditioner.
Ceiling Concealed Duct – High Static Type Indoor Unit Owner’s Manual TABLE OF CONTENTS FOR YOUR RECORDS Write the model and serial numbers here: Safety Precautions....3 Model # Prior to Operation ....8 Serial # You can find them on a label on the side of each unit. Operating Instructions...9 Dealer's Name Name and Function of Remote...
Safety Precautions Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. I Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury.
Seite 4
Safety Precautions Do not modify or extend the Do not install, remove, or Be cautious when power cable. re-install the unit by unpacking and installing yourself (customer). the product. • There is risk of fire or electric • There is risk of fire, electric •...
Seite 5
Safety Precautions Do not allow water to run Do not store or use flammable Do not use the product in a into electric parts. gas or combustibles near the tightly closed space for a product. long time. • It may cause There is risk of •...
Seite 6
Safety Precautions When the product is not be used for a long Take care to ensure that nobody could step time, disconnect the power supply plug or on or fall onto the outdoor unit. turn off the breaker. • There is risk of product damage or failure, or •...
Seite 7
Safety Precautions Do not block the inlet or Use a soft cloth to clean. Do Do not touch the metal parts of outlet of air flow. not use harsh detergents, the product when removing the solvents, etc. air filter. They are very sharp! •...
Prior to operation Prior to Operation Preparing for operation 1. Contact an installation specialist for installation. 2. Use a dedicated circuit. Usage 1. Being exposed to direct airflow for an extended period of time could be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
Operating Instructions Operating Instructions Operating Instructions Name and function of wired remote controller(Optional) • Wired remote controller: PQRCUSA0 1. Operation indication screen 10. Room temperature button 2. Set temperature button 11. Fan speed button 3. Wireless remote controller Receiver 12. Air flow button •...
Operating Instructions Name and function of wired remote controller(Optional) 1. Plasma button (optional) Used to start or stop the plasma-purification function. 2. Jet cool button Speed cooling operates super high fan speed. 3. Operation mode selection button Used to select the operation mode. 4.
Maintenance and Service Maintenance and Service CAUTION: Before performing any maintenance, turn off the main power to the system. Grille, Case, and Remote Controller ❏ Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives. Air outlet vent Air filters Power supply must be disconnected before...
Maintenance and Service When the air conditioner is not going to be used for a long time. When it is not going to be used for When the air conditioner is used again. a long time. Operate the air conditioner at the Clean the air filter and install it in the following settings for 2 to 3 hours.
Maintenance and Service Before you call for service... Troubleshooting Tips! Save time and money! Check the following points before requesting repairs or service..If the malfunction persists, please contact your dealer. The air conditioner The room has a It seems that Air conditioner does does not operate.
Seite 15
Unita interna (2 Serie) Type: Ceiling Concealed Duct- High Static IMPORTANTE • Leggere questo manuale d’istruzioni prima di installare il condizionatore d’aria. • Dopo averlo letto dettagliatamente, conservare questo manuale come riferimento per il futuro...
Seite 16
Ceiling Concealed Duct-High Static Type Manuele di Istruzioni SOMMARIO DATI DA RICORDARE Precauzioni di sicurezza..3 Annotare qui il numero di serie e il modello: Prima di iniziare.......8 N°. modello N°. di serie Istruzioni per l'uso....9 I numeri sono riportati sull'etichetta a lato di ogni unità. Diciture e funzioni del dispositivo di Nome del rivenditore regolazione ......9...
Precauzioni di sicurezza Precauzioni di sicurezza Per evitare infortuni dell'utente o altre persone e danni alle cose, attenersi alle seguenti istruzioni. L’uso errato causato dalla mancata osservanza delle istruzioni può causare danni o lesioni. L’importanza è classificata dalle seguenti indicazioni. Questo simbolo indica la possibilità...
Seite 18
Precauzioni di sicurezza Non modificare o prolungare L'unità non deve essere Disimballare e installare il il cavo di alimentazione. installata né rimossa prodotto con attenzione. dall'utente (cliente). • Vi è il rischio di scosse elettriche • Vi è il rischio di scosse elettriche, •...
Seite 19
Precauzioni di sicurezza Non far cadere acqua sui Non conservare o utilizzare gas Non utilizzare il prodotto in componenti elettrici. infiammabili o combustibili in luoghi chiusi per periodi prossimità del prodotto. prolungati. • Vi è il rischio di incendio o guasti al •...
Seite 20
Precauzioni di sicurezza In caso di inutilizzo del prodotto per lunghi Evitare che l'unità esterna sia calpestata da qualcuno. periodi, scollegare il cavo di alimentazione e spegnere l'interruttore automatico. • Ciò potrebbe lesioni personali e danni al prodotto. • Vi è il rischio di guasti al prodotto o attivazione accidentale.
Seite 21
Precauzioni di sicurezza Non bloccare l'ingresso o Utilizzare un panno soffice per la Non toccare le parti metalliche del l'uscita del flusso d'aria. pulizia. Non utilizzare detergenti prodotto durante la rimozione del aggressivi, solventi ecc. filtro dell'aria. Sono molto appuntite! •...
Prima di iniziare Prima di iniziare Preparazione all’uso 1. Per l’installazione rivolgersi a un tecnico specializzato. 2. Utilizzare un circuito dedicato. 1. L’esposizione al flusso diretto dell’aria per un periodo prolungato di tempo può essere pericoloso per la salute. Non esporre le persone, gli animali o le piante al flusso d'aria per periodi di tempo prolungati. 2.
Istruzioni per I'uso Istruzioni per I'uso Nome e funzione di telecommando (opzionale) • Wired remote controller: PQRCUSA0 1. Display operativo 10. Tasto temperatura ambiente 2. Tasto di impostazione della 11. Tasto velocità ventola temperatura 12. Tasto flusso d'aria 3. Ricevitore telecomando senza fili 13.
Istruzioni per I'uso Funzionamento del telecomando(opzionale) 1. Pulsante plasma (opzionale) Serve per avviare o arrestare la funzione di depurazione al plasma. 2. Pulsante raffreddamento a getto (jet cool) Il raffreddamento rapido funziona a ultravelocità della ventola. 3. Pulsante per la selezione del modo operativo Serve per selezionare il modo operativo.
Manutenzione e assistenza Manutenzione e assistenza ATTENZIONE: Spegnere l'unita prima di manovrare l'apparecchio. Griglia, scatola e dispositivo di regolazione Prima di effettuare la pulizia dell’unità, spegnere l’impianto. Per la pulizia adoperare un panno morbido e asciutto. Non usare candeggina o sostanze abrasive. Sfiato aria Filtri aria Prima di pulire l’unità...
Manutenzione e assistenza Disattivazione del condizionatore per un lungo periodo di inattività. Attivazione del condizionatore dopo un lungo Disattivazione del condizionatore per un lungo periodo di inattività. periodo di inattività. Far funzionare il condizionatore nelle Pulire il filtro aria e montarlo sull’unità seguenti modalità...
Seite 27
Manutenzione e assistenza Prima di chiamare l’assistenza… Suggerimenti per la soluzione dei problemi ed evitare inutili richieste di intervento. Prima di richiedere l’intervento di riparatori o manutentori, verificare le seguenti condizioni. Se il problema persiste, contattare il rivenditore. Il condizionatore non Nel locale c’è...
Seite 29
Unidad interior (2 Serie) Type: Ceiling Concealed Duct- High Static IMPORTANTE • Le rogamos que lea este manual del propietario con cuidado y completamente antes de instalarlo y operar su aparato de aire acondicionado. • Le rogamos que guarda este manual del propietario para futura referencia antes de leerol completamente.
Seite 30
Aire acondicionado de Tipo Duto- Manual de usuario ÍNDICE PARA SU REGISTRO Precauciones de seguridad ..3 Escriba aquí el modo y los números de serie : Antes del funcionamiento ..8 Nº modelo Nº serie Instrucciones de manejo ..9 Puede encontrarlos en la etiqueta de la parte lateral de Nombre y funciones del cada unidad.
Precauciones de seguridad Precauciones de seguridad Para evitar lesiones al usuario o a otras personas y daños a la propiedad, siga estas instrucciones. Una operaci’on incorrecta por ignorar las instrucciones provocará lesiones o daños. La seriedad se clasifica por las siguientes indicaciones. ADVERTENCIA Este símbolo indica la posibilidad de muerte o de seria lesión.
Seite 32
Precauciones de seguridad No modifique ni extienda el No instale, retire ni vuelva a Tenga cuidado al desembalar cable de alimentación. instalar la unidad por sí e instalar el aparato. mismo (cliente). • Existe riesgo de incendio o • Existe riesgo de incendio, •...
Seite 33
Precauciones de seguridad No permita que entre agua No almacene ni utilice gas No utilice el aparato en un en las piezas elèctricas. inflamable o combustibles espacio cerrado durante un cerca del aparato. periodo prolongado de tiempo. • Existe riesgo de incendio, avería •...
Seite 34
Precauciones de seguridad Cuando no vaya a utilizar el aparato durante Asegúrese de que nadie se siente o apoye un largo periodo de tiempo, desenchufe la sobre la unidad exterior. clavija de alimentación o apague el interruptor automático. • Existe riesgo de daños en el aparato o avería, o •...
Seite 35
Precauciones de seguridad No bloquee la entrada ni la Utilice un paño suave para No toque las partes de metal del salida del flujo de aire. limpiar. No utilice detergentes aparato al sacar el filtro del aire. abrasivos, disolventes, etc. ¡Son muy afiladas! •...
Antes del Funcionamiento Antes del Funcionamiento Preparación para el funcionamiento 1. Para la instalación del aparato, póngase en contacto con un especialista. 2. Utilice un circuito específico. Utilización 1. Quedar expuesto al flujo directo del aire durante un prolongado espacio de tiempo puede resultar perjudicial para su salud.
Instrucciones de manejo Instrucciones de manejo Nombre y funciones del mando a distancia (opcional) • Wired remote controller: PQRCUSA0 1. Pantalla de indicación operativa 10. Botón de temperatura ambiente 2. Botón conf. de temperatura 11. Botón de velocidad del ventilador 3.
Seite 38
Instrucciones de manejo Operación del mando a distancia (opcional) 1. Botón de plasma (opcional) Utilizado para configurar el inicio o cese de la función de purificación por plasma. 2. Botón jet cool (enfriamiento rápido) El enfriamiento rápido opera a alta velocidad del ventilador. 3.
Mantenimiento y servicio Mantenimiento y servicio ATENCIÓN: antes de efectuar cualquier operación de mantenimiento, apague el interruptor principal del sistema. Rejilla, caja y mando a distancia Apague el sistema antes de limpiarlo. Para limpiarlo, pase un trapo suave y seco. No utilice lejía ni productos abrasivos.
Mantenimiento y servicio Cuando no vaya a utilizar el aire acondicionado durante un tiempo prolongado. Cuando vaya a utilizar de nuevo el aire Cuando no vaya a ser utilizado durante un acondicionado. tiempo prolongado. Ponga en marcha el aire acondicionado con la Limpie el filtro de aire y colóquelo en configuración siguiente durante 2 o 3 horas.
Mantenimiento y servicio Antes de llamar al servicio de reparaciones... Consejos para la localización de fallos! ¡Ahorre tiempo y dinero! Compruebe lo siguiente antes de llamar al servicio de reparaciones... Si el fallo persiste, póngase en contacto con su distribuidor. El aire La habitación tiene Parece que hay una...
Seite 43
Unit interne (2 Series) Type: Gainable(High-static) IMPORTANT • Veuillez lire soigneusement et entièrement ce manuel d'utilisation avant l'installation et la mise en marche de votre climatiseur. • Après l’avoir lu entièrement, veuillez conserver ce manuel d'utilisation pour référence ultérieure.
Seite 44
Type Gainable(High-static)-Manuel d'utilisation TABLE DES MATIÈRES POUR VOS ARCHIVES Mesures de sécurité....3 Écrivez les numéros de modèle et de série ici : Avant de le faire fonctionner..8 Modèle # Série # Instructions de Vous les trouverez sur la plaque signalétique située sur fonctionnement.
Mesures de sécurité Mesures de sécurité Les instructions ci-après doivent être observées dans le but de prévenir tout risque de dommages corporels ou matériels. L'utilisation non conforme, résultant de la négligence des instructions, est susceptible de provoquer des dommages corporels ou matériels dont la gravité est signalée par les indications suivantes : ATTENTION Ce symbole indique un risque de blessure grave, voire mortelle.
Seite 46
Mesures de sécurité Ne modifiez ni prolongez le N'installez pas, n'enlevez pas, ne Prenez soin lorsque vous cordon d'alimentation. remettez pas en place l'unité déballez et installez ce vousmême (si vous êtes un utilisateur). produit. • Ceci risquerait de provoquer un •...
Seite 47
Mesures de sécurité Veillez à ne pas faire couler N'emmagasinez ni utilisez de N'utilisez pas ce produit dans un d'eau sur les parties substances inflammables ou espace fermé hermétiquement pendant électrique. combustibles près de ce produit. une longue période de temps. •...
Seite 48
Mesures de sécurité Si vous n'utiliser pas le produit pendant une longue Assurez-vous que personne ne peut marcher période de temps, débranchez le cordon d'alimentation ou ou tomber sur l'unité extérieure. mettez le disjoncteur sur la position Arrêt (off). • Autrement, vous risquez d'endommager le produit ou •...
Seite 49
Mesures de sécurité Ne bloquez pas l'entrée ou la Utilisez un chiffon doux pour le nettoyage. Ne touchez pas les pièces métalliques sortie d'air. N'employez pas de détergents agressifs, du produit lorsque vous enlevez le filtre de dissolvants, etc. à air. Elles sont très aiguisées! •...
Avant de le faire fonctionner Avant de le faire fonctionner Avant de le faire fonctionner 1. Contactez un installateur spécialisé pour qu’il vous l’installe. 2. Utilisez un circuit dédié. Utilisation 1. Une exposition prolongée à un débit d’air direct pourrait nuire à votre santé. Ne laissez pas les occupants, les animaux ou les plantes exposés trop longtemps à...
Instructions de fonctionnement Instructions de Fonctionnement Noms et fonctions de la télécommande(optionnelle) • Wired remote controller: PQRCUSA0 1. Ecran d’indication de fonctionnement. 10. Touche de température intérieure. 2. Touche de réglage de température. 11. Touche de vitesse de ventilation. 3. Récepteur de la télécommande sans fils 12.
Seite 52
Instructions de fonctionnement Fonctionnement de la télécommande(optionnelle) 1. Touche plasma (en option) Démarrer ou arrêter la fonction de purification plasma. 2. Touche jet froid Vitesse de refroidissement à très haute ventilation. 3. Touche de selection de mode Sélection du mode de fonctionnement. 4.
Entretien et Maintenance Entretien et Maintenance ATTENTION: Avant d'effectuer n'importe quel entretien, couper l'alimentation principale du système. Grille, Couvercle et Commande à distance Arrêtez le système avant de le nettoyer. Pour le nettoyer, utilisez un tissu doux et sec. N’utilisez pas de l’eau de javel ou des abrasifs.
Entretien et Maintenance Lorsque le climatiseur NE VA ÊTRE UTILISÉ pendant une longue période. Lorsque le climatiseur sera utilisé de Lorsqu’il NE VA PAS ÊTRE UTILSÉ pendant une longue période. nouveau. Démarrer le climatiseur dans les Nettoyez le filtre d’air et replacez-le conditions suivantes pendant 2 ou 3 dans l’unité...
Entretien et Maintenance Avant d’appeler le service technique… Guide de Dépannage! Épargnez du temps et de l’argent! Vérifiez les points suivants avant de demander une réparation ou une maintenance… Si le mauvais fonctionnement continue, veuillez contacter le représentant de vente. Le climatiseur ne L’habitation a une Il semble que le...
Seite 57
Innenger t (2 Reihe) Type: Ceiling Concealed Duct- High Static WICHTIG • Bitte lesen Sie vor der Montage und lnbetriebnahme des Raum-Klimagerätes dieses handbuch sorgfältig durch. • Bewahren Sie dieses Benutzerhandbuch nach dem Lesen zum späteren Gebrauch an einem sicheren Ort auf.
Ceiling Concealed Duct-High Static Benutzerhandbuch INHALTSVERZEICHNIS FÜR IHRE AUFZEICHNUNGEN Sicherheitshinweise....3 Tragen Sie hier die Modell- und Seriennummer ein: Vor der Inbetriebnahme..8 Modell-Nr. Seriennr. Bedienungsanweisung ..9 Diese Nummern finden Sie auf einem Etikett an der Bezeichnung und Funktion der Seite jedes Gerätes. Fernbedienung .....9 Händlername Kaufdatum...
Sicherheitshinweise Sicherheitshinweise Um Verletzungen des Benutzers oder anderer Personen sowie Sachbeschädigungen zu vermeiden, müssen die folgenden Anleitungen befolgt werden. Ein unsachgemäßer Betrieb bei Missachtung von Anleitungen führt zu Verletzungen oder Beschädigungen. Die Schweregrade werden durch folgende Symbole gekennzeichnet. Dieses Symbol bedeutet Lebensgefahr oder Gefahr schwerer WARNUNG Verletzungen.
Sicherheitshinweise Netzkabel nicht verändern Das Gerät niemals selbst (vom Das Gerät vorsichtig oder verlängern. Kunden) montieren, entfernen auspacken und montieren. oder neu installieren. • Es besteht Feuer- oder • Es besteht Feuer-, Stromschlag-, • Scharfe Kanten bergen Stromschlaggefahr. Explosions- oder Verletzungsgefahr.
Seite 61
Sicherheitshinweise Es darf kein Wasser in Keine brennbaren Gase oder Gerät nicht für eine längere elektrische Bauteile Flüssigkeiten in der Nähe Zeit in geschlossenen des Gerätes lagern. Räumen betreiben. eindringen. • Es besteht die Gefahr von Feuer • Es könnte ein Sauerstoffmangel •...
Seite 62
Sicherheitshinweise Wenn das Gerät eine längere Zeit nicht Es muss gewährleistet werden, dass niemand betrieben wird, Netzstecker ziehen oder auf das Außengerät tritt oder fällt. Sicherung ausschalten. • Es besteht die Gefahr von Beschädigungen oder • Es besteht die Gefahr von Verletzungen sowie von Ausfällen oder unbeabsichtigtes Einschalten des Beschädigungen des Gerätes.
Seite 63
Sicherheitshinweise Lufteinlass und -auslass Zur Reinigung ein weiches Tuch Metallteile des Gerätes beim nicht verdecken. verwenden. Keine scharfen Reiniger, Entfernen des Luftfilters nicht Lösungen usw. verwenden. berühren. Sie sind sehr scharfkantig! • Ansonsten könnte das Gerät • Es besteht die Gefahr von Feuer, •...
Vor der Inbetriebnahme Vor der Inbetriebnahme Vorbereitung auf die Inbetriebnahme 1. Wenden Sie sich für die Installation an einen Fachinstallateur. 2. Gerät einem dedizierten schaltkreis. Benutzung 1. Dem direkten Luftstrom über längere Zeit ausgesetzt zu sein, kann der Gesundheit schaden. Setzen Sie Personen, Tiere oder Pflanzen nicht über längere Zeit dem direkten Luftstrom aus.
Bedienungsanweisung Funktionen der Fernbedienung(Option) 1. Plasma-taste (optional) Ein- und Ausschalten der Plasma-Reinigungsfunktion. 2. Schnellkühl-taste Die Schnellkühlung wird mit extrem hohe Lüftergeschwindigkeit durchgeführt. 3. Betriebswahltaste Auswahl des Betriebsmodus. 4. Funktionswahltaste Programmieren und Löschen der automatischen oder intelligenten Reinigungsfunktion. 5. Taste für lcd-helligkeit (optional) Einstellen der Helligkeit der LED-Anzeige.
Wartung und Service Wartung und Service VORSICHT : Bevor Sie irgendwelche Wartung usw. ausführen, das Gerät immer zuerst vom Stromnetz trennen. Gitter, Gehäuse und Fernbedienung Das System vor dem Reinigen abschalten und mit einem weichen, trockenen Tuch abwischen. Keine Bleich- oder Scheuermittel verwenden. Luftfilter Vor dem Reinigen der Inneneinheit muss die HINWEIS...
Wartung und Service Wenn Sie das Klimagerät länger nicht benutzen wollen Wenn Sie das Klimagerät wieder einschalten Wenn Sie das Gerät länger außer Betrieb möchten. nehmen möchten. Lassen Sie das Klimagerät für ca. 2 - 3 Reinigen Sie den Luftfilter und setzen Stunden mit folgenden Einstellungen Sie ihn in die Inneneinheit ein.
Wartung und Service Bevor Sie den Kundendienst verständigen..Tips bei eventuellen Problemen! Sparen sie zelt und Geld! Wenden Sie sich bitte an Ihren Händler. Das Klimagerät Der Raum riecht Es scheint, dass Vor dem Neustart funktioniert nicht. merkwürdig. Kondenswasser aus setzt das Klimagerät dem Klimagerät für drei Minuten aus.
