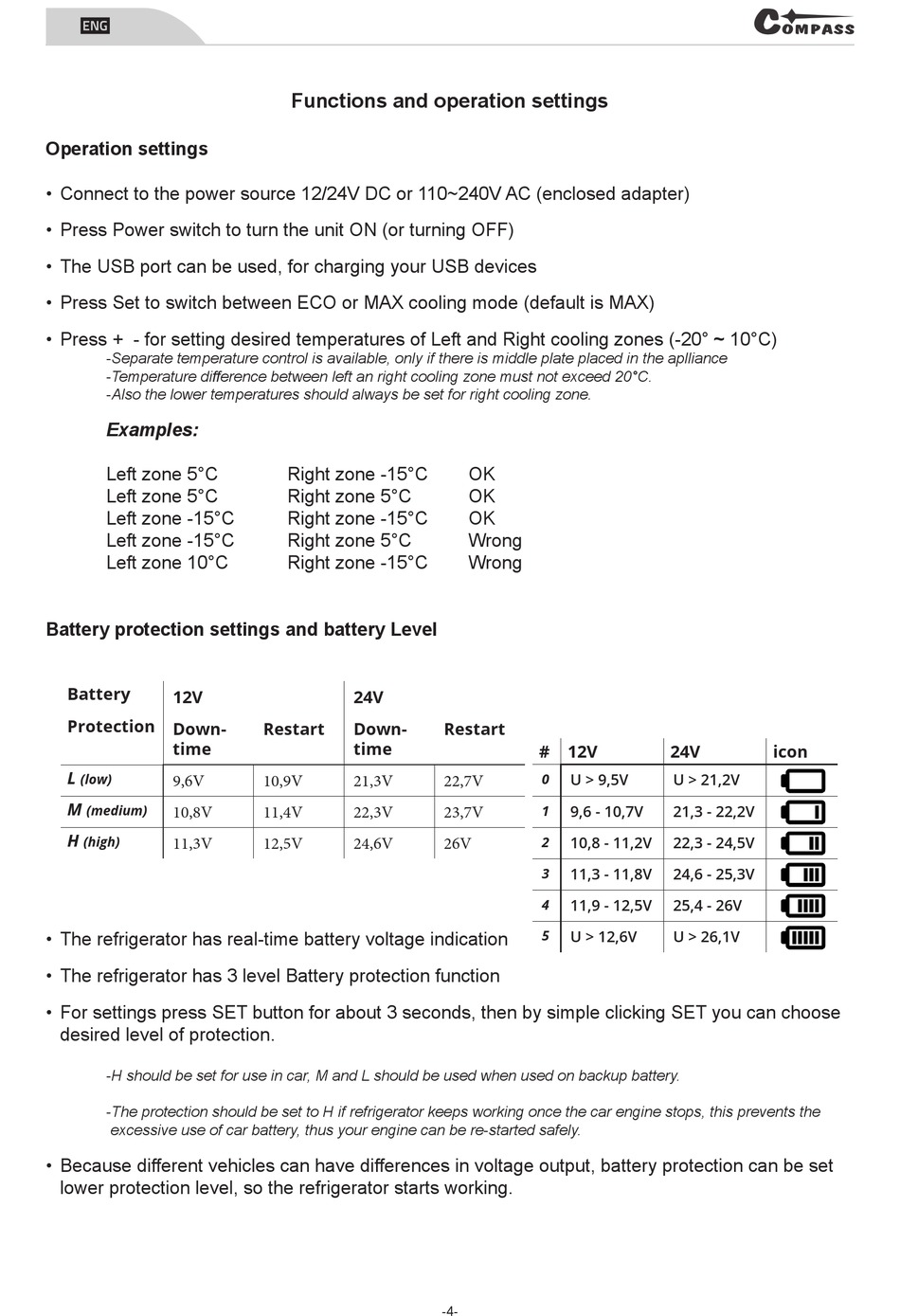

Compass DUAL Benutzerhandbuch Seite 4

e
Operation settings
• Connect to the power source 12/24V DC or 110~240V AC (enclosed adapter)
• Press Power switch to turn the unit ON (or turning OFF)
• The USB port can be used, for charging your USB devices
• Press Set to switch between ECO or MAX cooling mode (default is MAX)
• Press + - for setting desired temperatures of Left and Right cooling zones (-20° ~ 10°C)
-Separate temperature control is available, only if there is middle plate placed in the aplliance
-Temperature difference between left an right cooling zone must not exceed 20°C.
-Also the lower temperatures should always be set for right cooling zone.
Examples:
Left zone 5°C
Left zone 5°C
Left zone -15°C
Left zone -15°C
Left zone 10°C
Battery protection settings and battery Level
Battery
12V
Protection Down-
time
L
(low) 9,6V
M
(medium) 10,8V
H
(high) 11,3V
• The refrigerator has real-time battery voltage indication
• The refrigerator has 3 level Battery protection function
• For settings press SET button for about 3 seconds, then by simple clicking SET you can choose
desired level of protection.
-H should be set for use in car, M and L should be used when used on backup battery.
-The protection should be set to H if refrigerator keeps working once the car engine stops, this prevents the
excessive use of car battery, thus your engine can be re-started safely.
• Because different vehicles can have differences in voltage output, battery protection can be set
lower protection level, so the refrigerator starts working.
Functions and operation settings
Right zone -15°C
Right zone 5°C
Right zone -15°C
Right zone 5°C
Right zone -15°C
24V
Restart Down-
time
10,9V 21,3V
11,4V 22,3V
12,5V 24,6V
OK
OK
OK
Wrong
Wrong
Restart
# 12V
22,7V 0 U > 9,5V
23,7V
1 9,6 - 10,7V
26V
2 10,8 - 11,2V
3 11,3 - 11,8V
4 11,9 - 12,5V
5 U > 12,6V
-4-
24V icon
U > 21,2V
21,3 - 22,2V
22,3 - 24,5V
24,6 - 25,3V
25,4 - 26V
U > 26,1V
