Assembly Instructions for WD Mobile

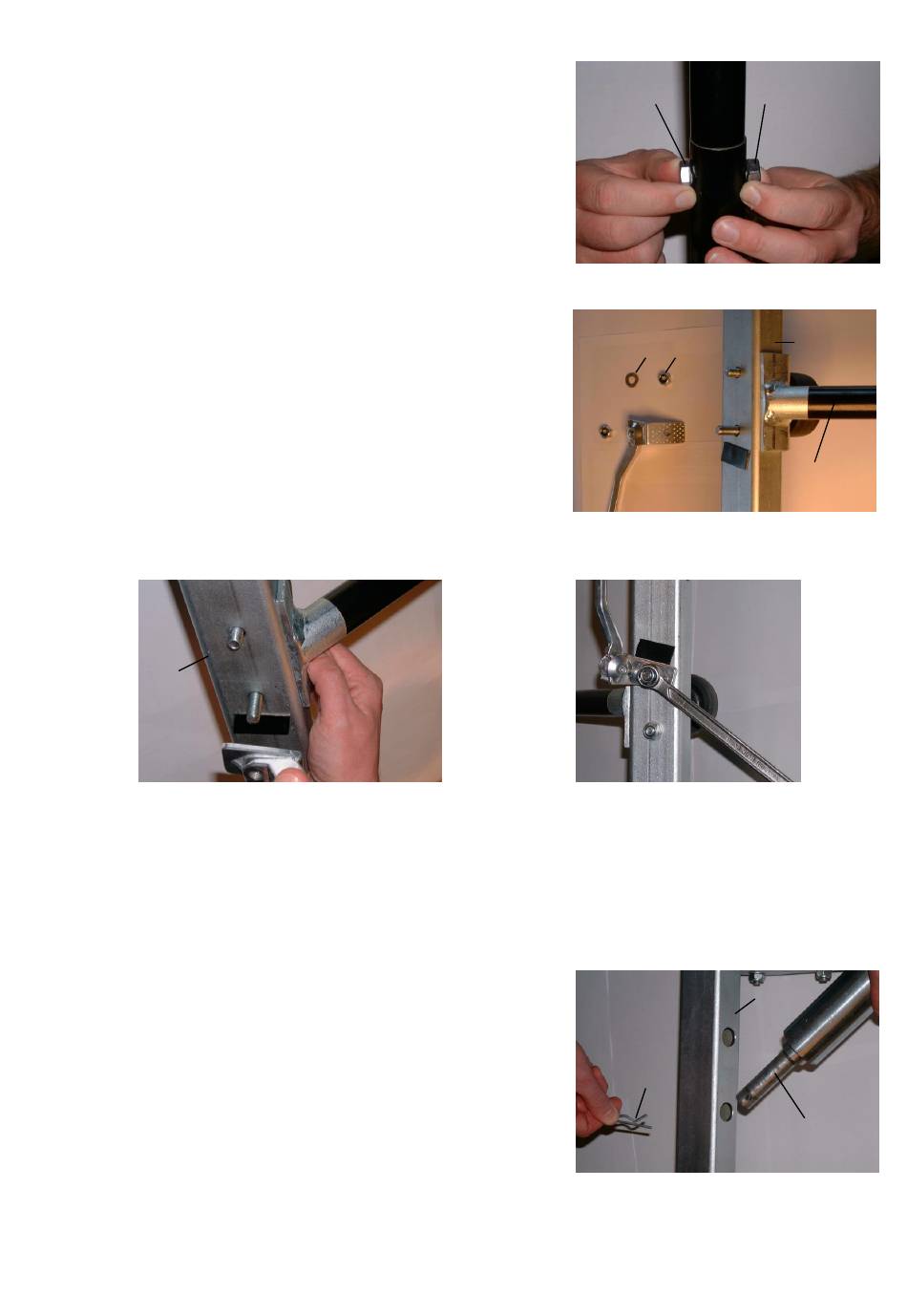

Mounting the push bars and support foot:
Connect push bars G and H, place screw C through the hole in
the push bar and screw on nut B (see photo 1 and fig. 1).
Join the full push bar to frame F
(see photo 2 and fig. 1). Mount washer E and locknut D.
I
3
Mount support foot I, screw it on firmly and position parallel to the glued-on plate.
Screw on locknut D (see photos 3+4 and fig. 1).
Mounting the castors:
Place caster J through hole in frame F, and mount cotter pin A.
(see photo 5 and fig. 1).
1 C B
2 E D
4
5
A
F
G+H
F
J
