1U Rackmount Quick Start Guide

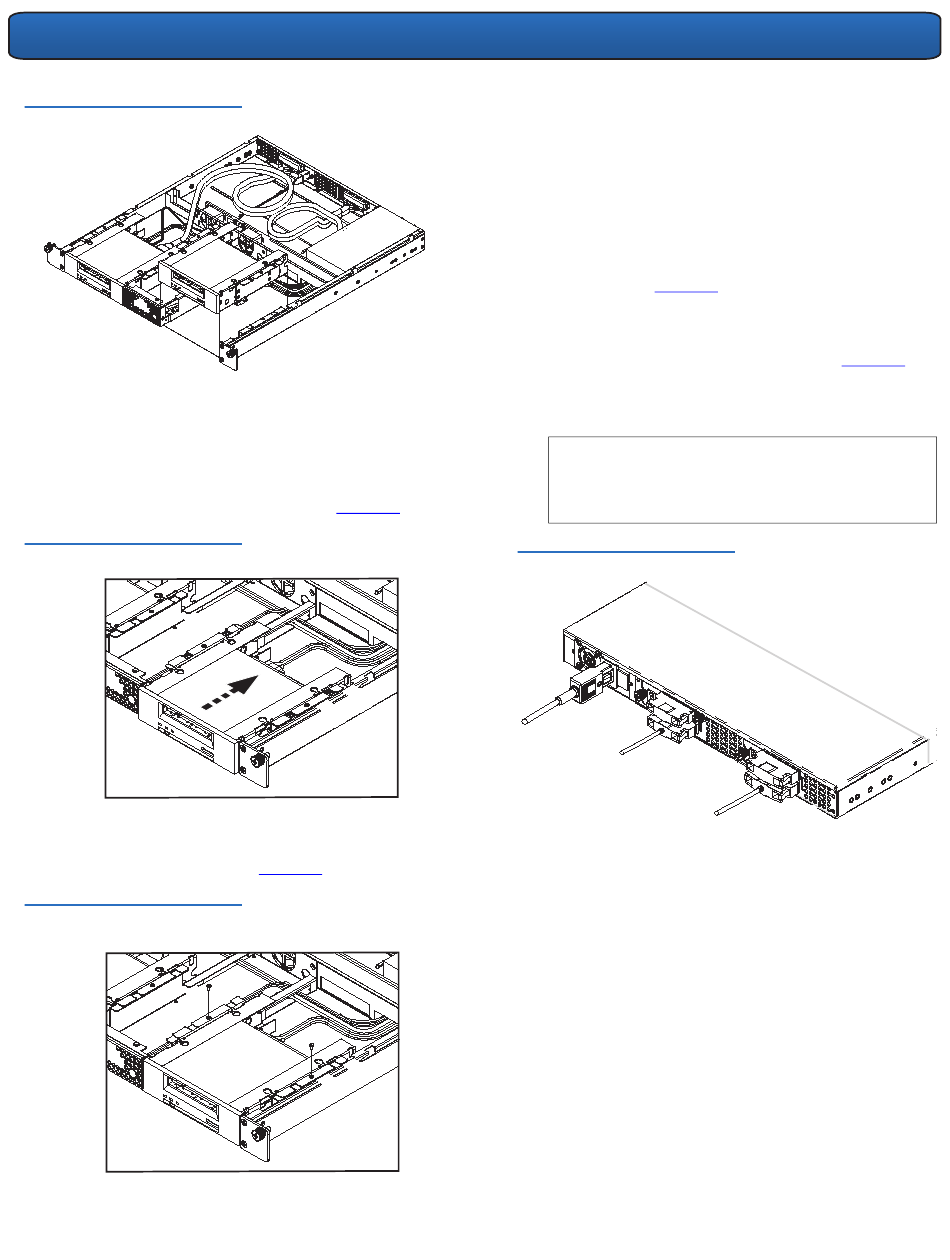

Figure 9 Aligning Tape Drive
12 Lower the second tape drive into the tape drive bay.
Slide the tape drive toward the back of the
1U Rackmount until the front of the tape drive is flush
with the front panel of the 1U Rackmount and the tabs
on the mounting brackets slide into the retaining holes
on either side of the tape drive bay. See
Figure 10 Sliding Tape Drive
13 Reinstall the two mounting bracket screws using a
#1 PHILLIPS screwdriver. See
Figure 11 Reinstalling Mounting
Bracket Screws
figure 10.
figure 11.
14 Replace the 1U Rackmount top cover and tighten the
top cover thumbscrew.
15 Reinstall the 1U Rackmount into the equipment rack.
16 On the back panel of the 1U Rackmount, connect one
end of an external SCSI cable to either of the SCSI
connectors on the same side of the 1U Rackmount as
the second tape drive.
17 Connect a SCSI terminator to the adjacent SCSI
connector. See figure
18 Connect the other end of the SCSI cable to the host.
19 Reconnect the power cable to the power receptacle on
the back panel of the 1U Rackmount. See
20 Each SCSI device must have its own unique ID. Change
the SCSI ID if necessary.
N : Any time you change the SCSI ID, you must
OTE
turn the tape drive power off and then back on
by pressing the power button on the front panel
of the 1U Rackmount.
Figure 12 Completed Back Panel
21 Turn on the power switch on the back panel of the 1U
Rackmount.
22 Turn on drive power by pressing the power button on
the front panel of the 1U Rackmount.
12.
figure 12.
