Quantum 1U Rackmount Kurzanleitung Seite 4

1U Rackmount Quick Start Guide

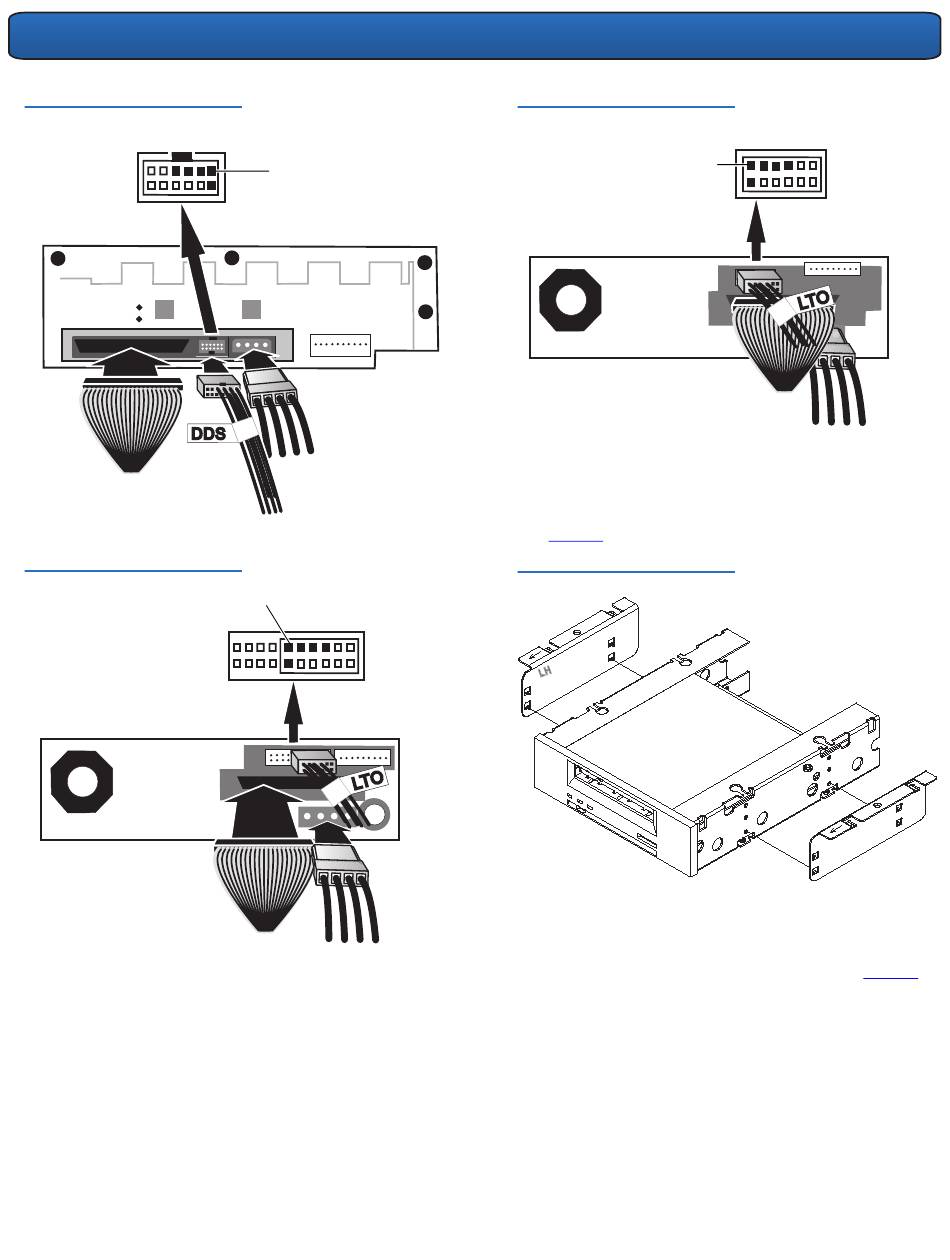

Figure 5 DLT VS160 and DLT-V4
Connections
Figure 6 LTO-2 HH Connections
Purple wire location
Purple wire
location
Figure 7 LTO-3 HH Connections
Purple wire
location
10 Insert the two posts on each mounting bracket into the
mounting holes on either side of the second tape drive.
In tape drives with four mounting holes, insert the
posts into the lower set of mounting holes. See
figure 8.
Figure 8 Mounting Brackets
11 While holding the mounting brackets against the tape
drive, position the tabs of the mounting brackets over
the retaining holes in the tape drive bay. See figure 9.
4
