1U Rackmount Quick Start Guide
5 Loosen the captive thumbscrew securing the top cover
(thumbscrew is located on back panel). Slide the cover
toward the back of the 1U Rackmount about 1/2 inch
to loosen it from the front clips. Lift the top cover off.
See figure 2.

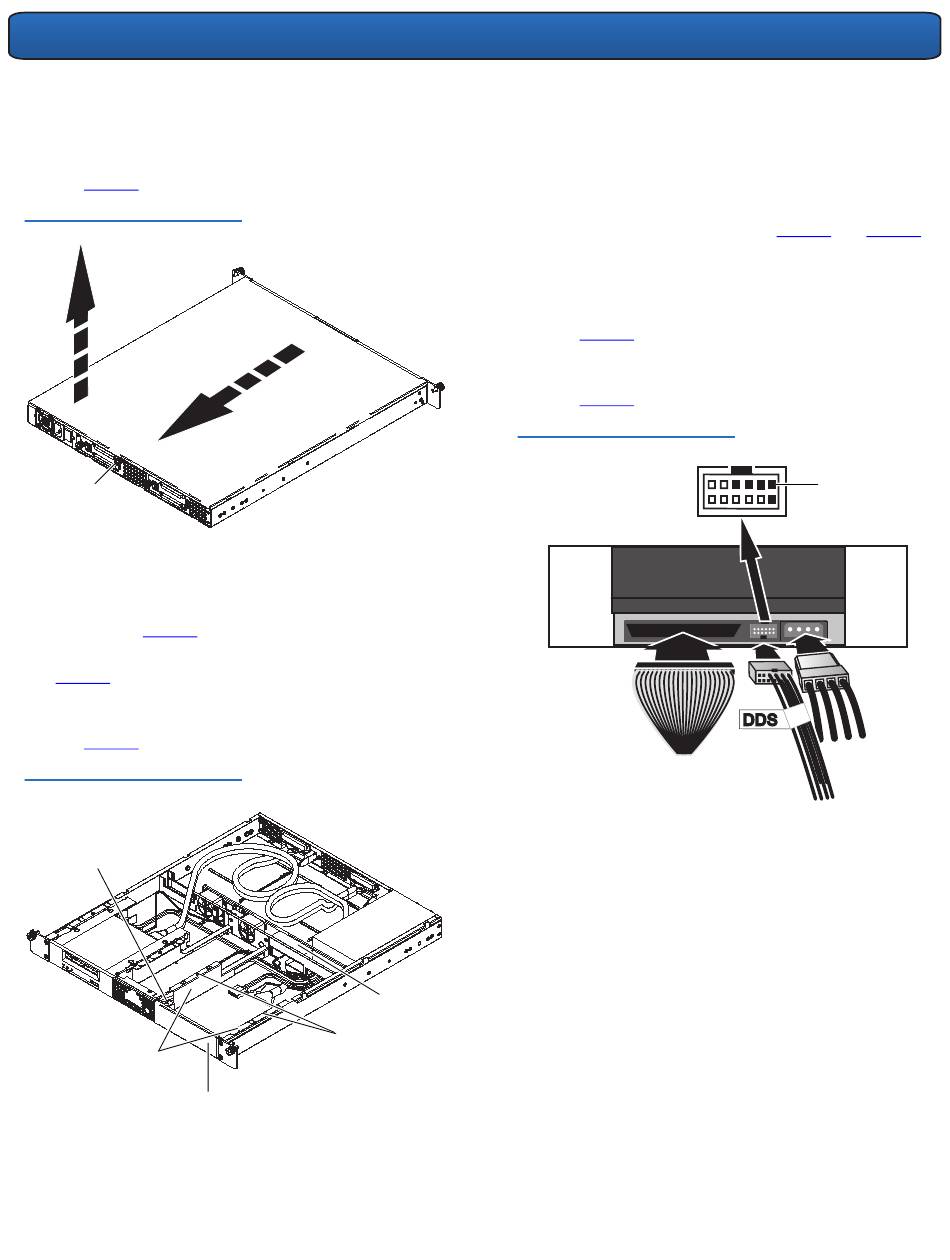

Figure 2 Removing the Top Cover
Top cover
thumbscrew
6 Inside the chassis, remove the two screws securing the
front filler panel to the 1U Rackmount walls using a
#2 PHILLIPS screwdriver. Lift out the filler panel and
discard. See figure 3.
7 Remove the foam insert from the bulkhead. See
figure 3.
8 Remove the two mounting bracket screws using a
#1 PHILLIPS screwdriver. Lift off the mounting brackets.
See figure 3.
Figure 3 Items Inside Chassis
Filler panel
screw
Mounting
brackets
Filler panel
Figure 4 DAT 72 Connections
Foam
insert
Mounting
bracket
screws
9 Connect the internal SCSI cable, SCSI ID cable, and
power cable to the back of the second tape drive.
Follow these specific instructions for your tape drive:
• DAT 72, DLT-V4, and DLT VS160: Use the keyed
SCSI ID connector labeled "DDS". The purple wire
on the SCSI ID cable must be connected to the
upper right SCSI ID pin. See
• LTO-2 HH: Use the SCSI ID cable labeled "LTO".
Connect the SCSI ID cable to the 12 right-most
pins. (The eight left-most pins are not used.) The
purple wire must be in the upper left position. See
figure 6.
• LTO-3 HH: Use the SCSI ID cable labeled "LTO". The
purple wire must be in the upper left position. See
figure 7.
figure 4 and figure 5.
Purple wire
location
