VWU 32E - VWU 50E

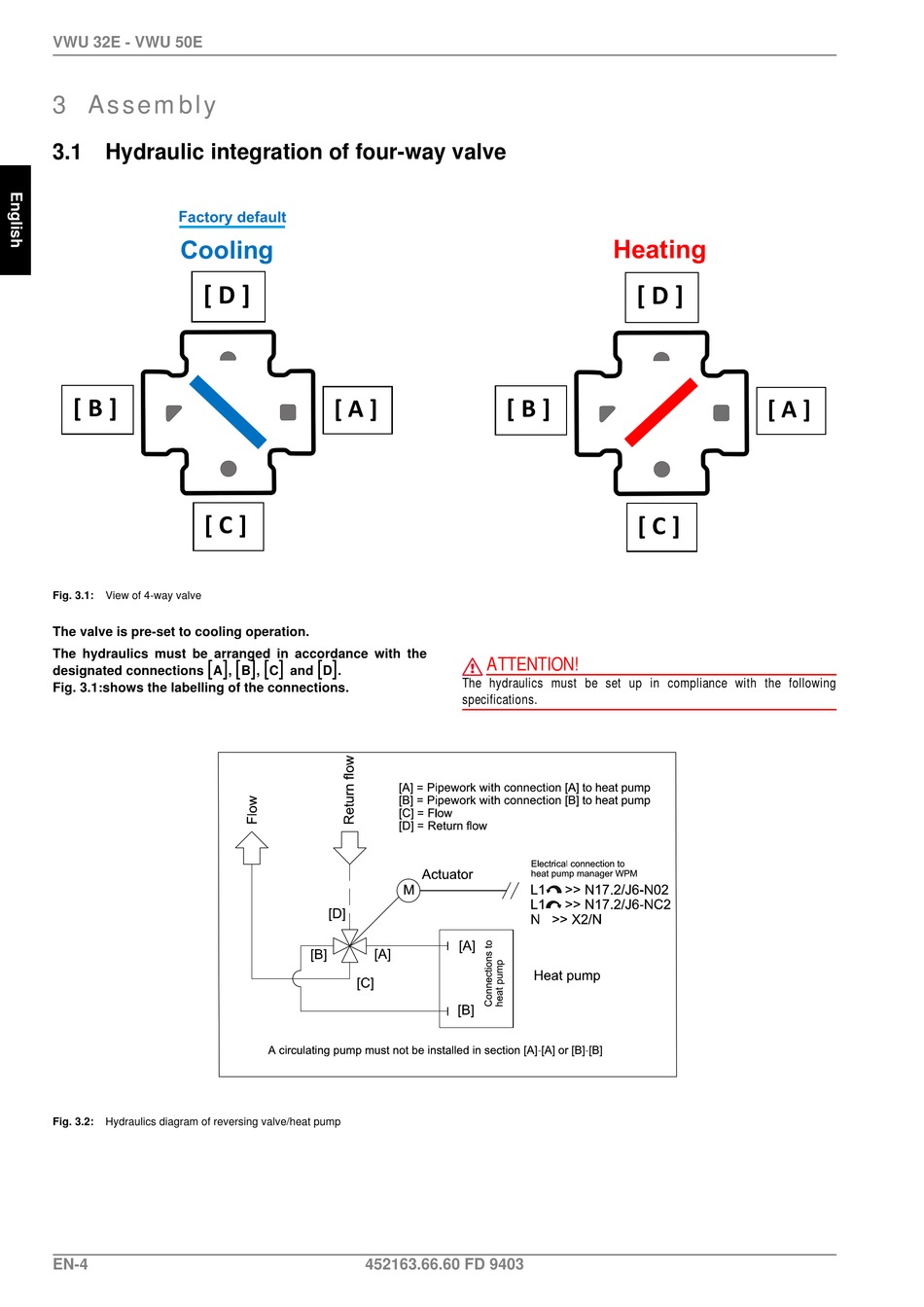

3 Assembly

3.1 Hydraulic integration of four-way valve

Fig. 3.1: View of 4-way valve
The valve is pre-set to cooling operation.
The hydraulics must be arranged in accordance with the
[ ]
designated connections A
Fig. 3.1:shows the labelling of the connections.
Fig. 3.2: Hydraulics diagram of reversing valve/heat pump
EN-4
[ ] [ ] [ ]
. 
, B , C and D
452163.66.60 FD 9403
ATTENTION!
The hydraulics must be set up in compliance with the following
specifications.
