First start – install a SIM-
6.3
- Unplug the power supply of the GSM controller

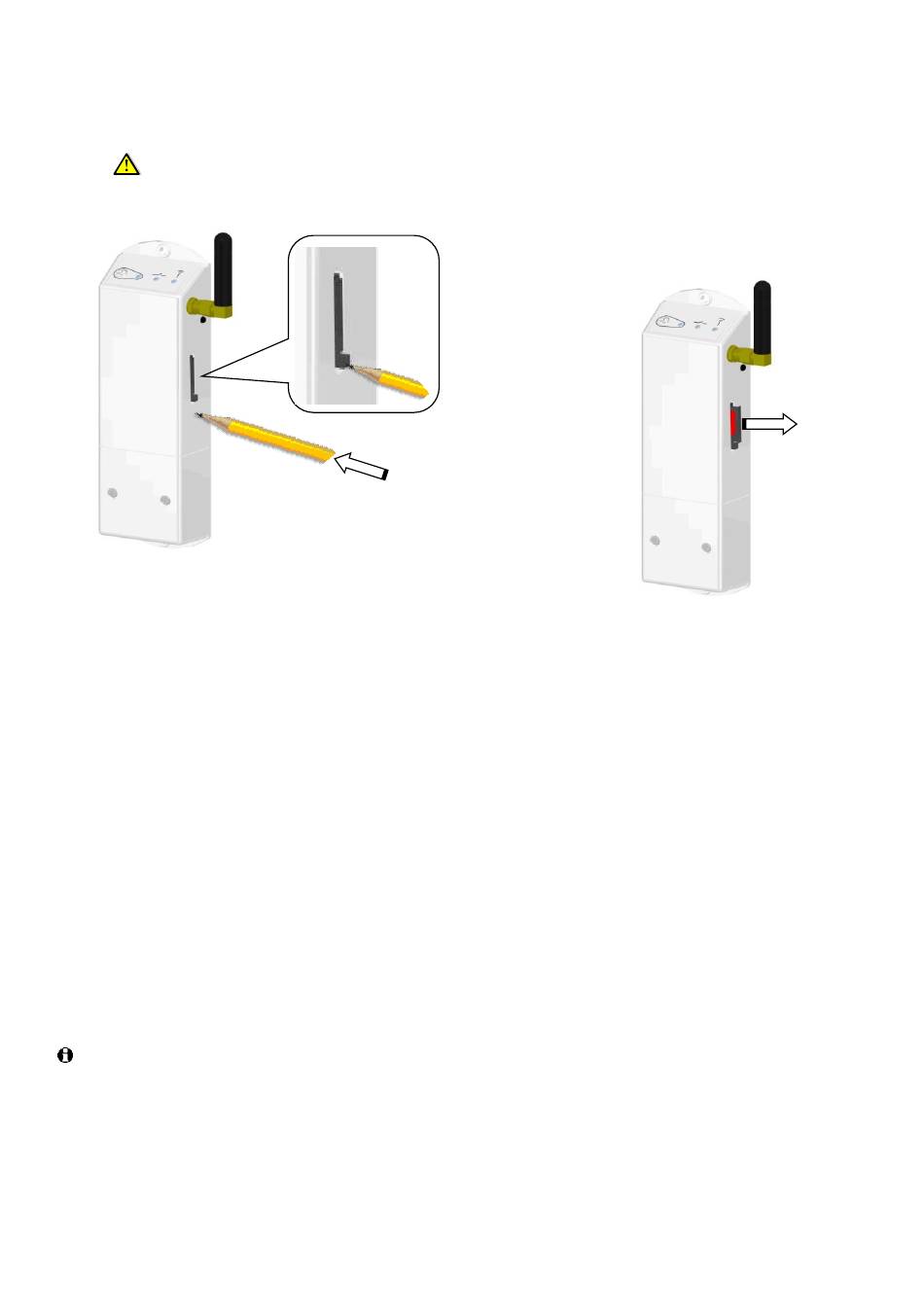

- Install a SIM card, (*without PIN code) in the right side of the controller (See picture below).
* In order use a mobile phone to de-activate the PIN code.
- Now if the GSM is used with wireless communication, plug the RF antenna RJ45 connector on
the GSM unit.
- Plug 230V/9VDC power supply (only the plug adaptor supplied or one with the same character-
istics can be used).
- Then the unit starts the initialisation (up to 1 min) and connection to the GSM network. During in-
itialisation the two first LED must blink alternatively (Green/Red), the network LED starts to blink
when connected to the network.
- Your GSM Module is now ready to work and be linked with your installation, to make this put
your GSM Module in "init" mode by pressing 5 sec on the push button, the antenna LED must
shine in green fix.
- Go to your V24 Central and active the GSM pairing mode, (see the V24 leaflet for more infor-
mation)
- Once the pairing made between V24 Central and V27 GSM unit, you can check the SMS func-
tionality.
If the GSM controller is supplied with an internal battery, a preliminary time charge for 24H will be need-
ed to have the power supply supervising function SMS alert.
the GSM-controller and control the working
card in
