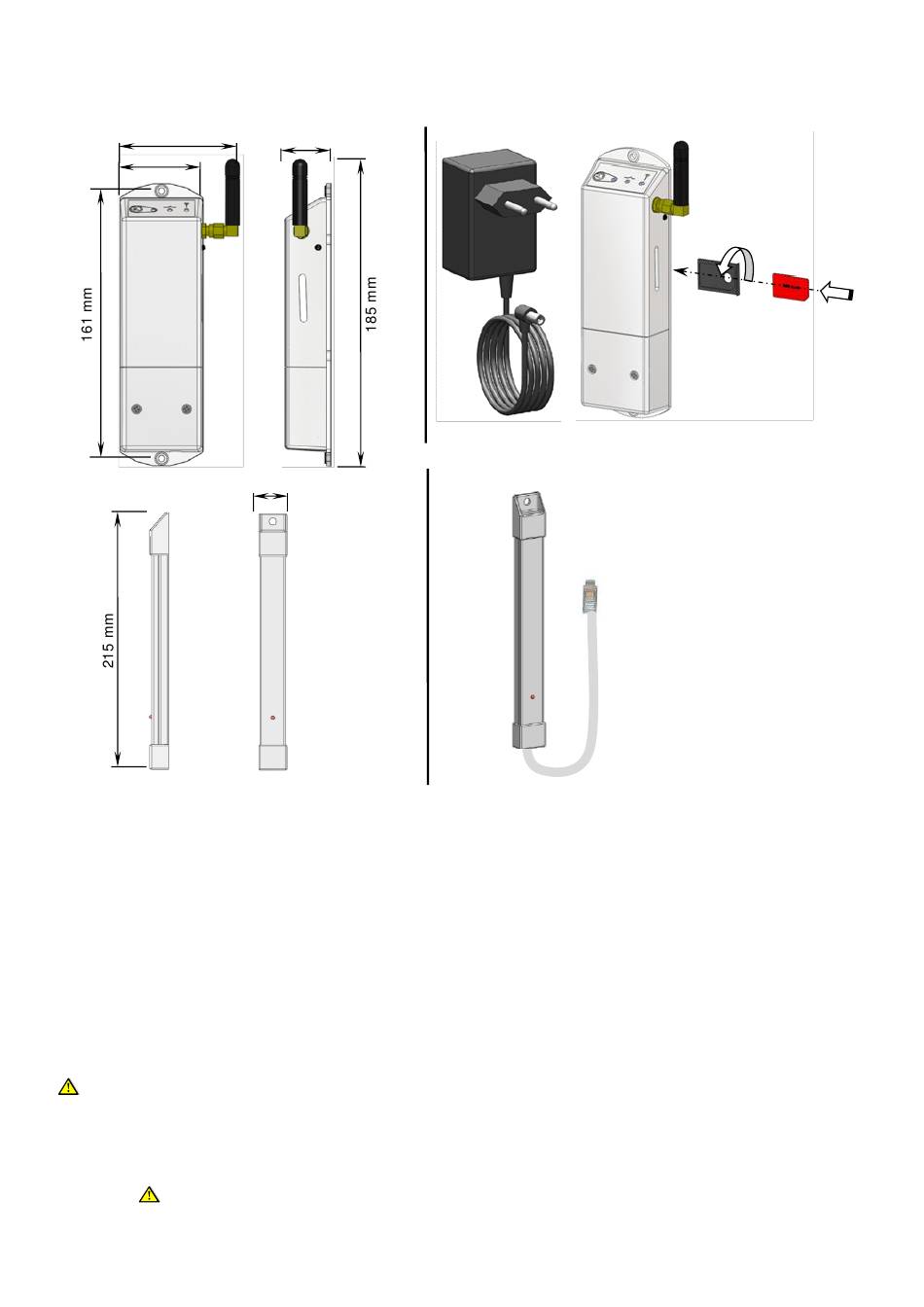

5 Dimensions

72 mm
50 mm

6 Installation and Electrical connections

6.1

Installation

The GSM Module can be installed directly on a solid base (e.g. a wall). For this purpose it is not necessary
to disassemble the products it should be fastened using appropriate screws and pins.
The RF antenna can be installed directly on a solid base (e.g. a wall). For this purpose it is not necessary to
disassemble the products it should be fastened using appropriate screws and pins or the adhesive part
fixed behind the antenna.
Fix and install the GSM controller and the RF antenna in accordance with the following rules:
Pay attention before the installation of your products, some routing rules should be made to guaranty
an optimal working.
- In order to install and use the V27 GSM module you must choose the method of communication
with the V24 Central unit, by using the BUS communication or the RF antenna.
Pay attention to not connect both methods in the same time.
27 mm
22 mm
23
