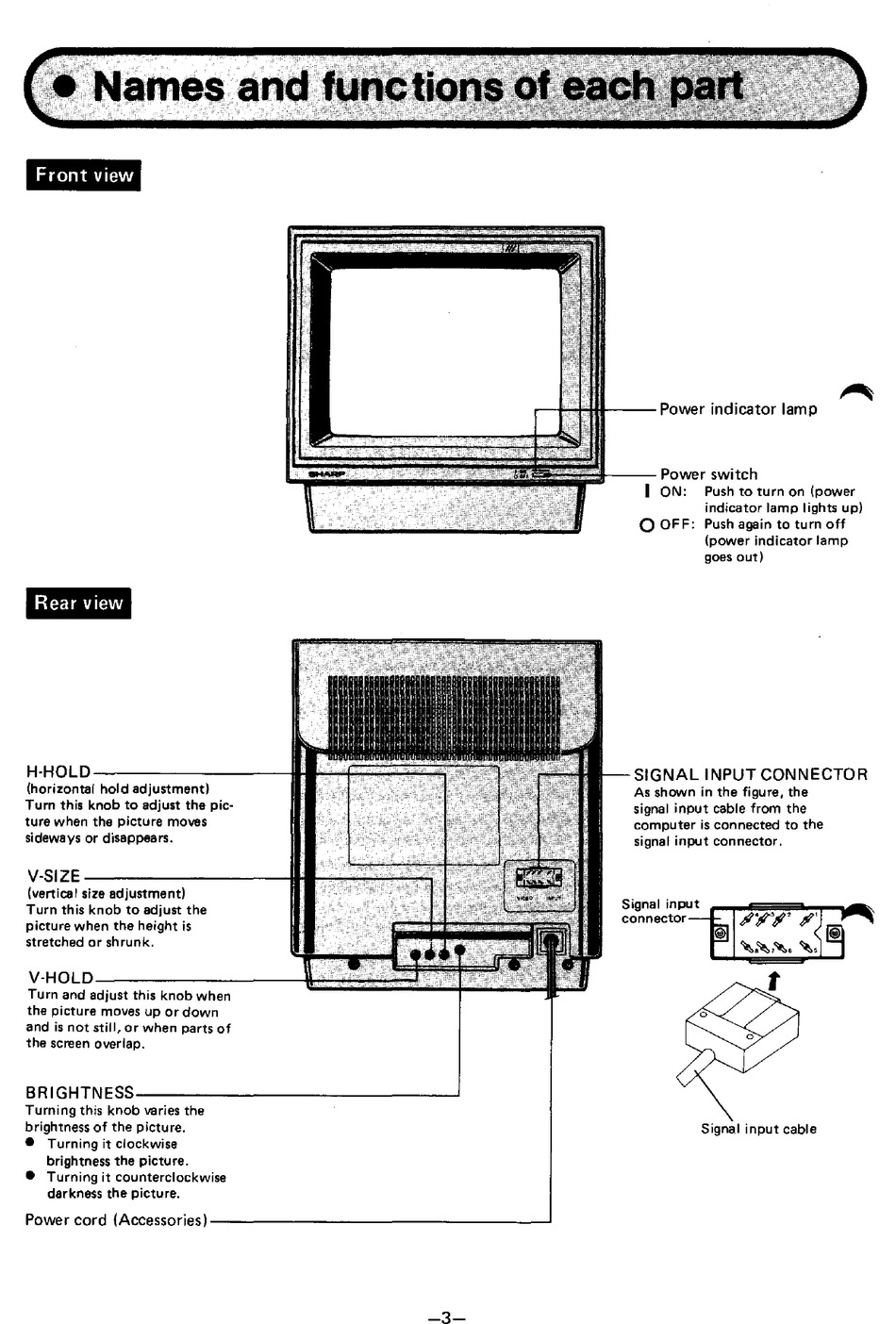

Names and
H-HOLD--------lUJ..:~:::;::;~~
(horizontal hold adjustment)
Turn this knob to edjust the pic-
ture when the picture moves
sideways or disappears.
V-SIZE
----------11-11--_ _ _ ......,
(vertical size adjustment)
Turn this knob to adjust the
picture when the height is
stretched or shrunk.
V-HOLD.~=:~~~~----~~~~~~t:~~~~!!
Turn and adjust this knob when
the picture moves up or down
and is not still, or when parts of
the screen overlap.
BRIGHTNESS--------------~
Turning this knob varies the
brightness of the picture.
• Turning
it
clockwise
brightness the picture.
• Turning
it
counterclockwise
darkness the picture.
Power cord (Accessories) __________________
...J
-3-
Power indicator lamp
~I--- Power switch
ON: Push to turn on (power
indicator lamp I ights up)
Push again to turn off
(power indicator lamp
goes out)
SIGNAL INPUT CONNECTOR
As shown in the figure, the
signal input cable from the
computer is connected to the
signal input connector.
Signal input
~
connector11
,:R~~' ,:R~
®
~~.~. ~,I!j
Signal input cable
