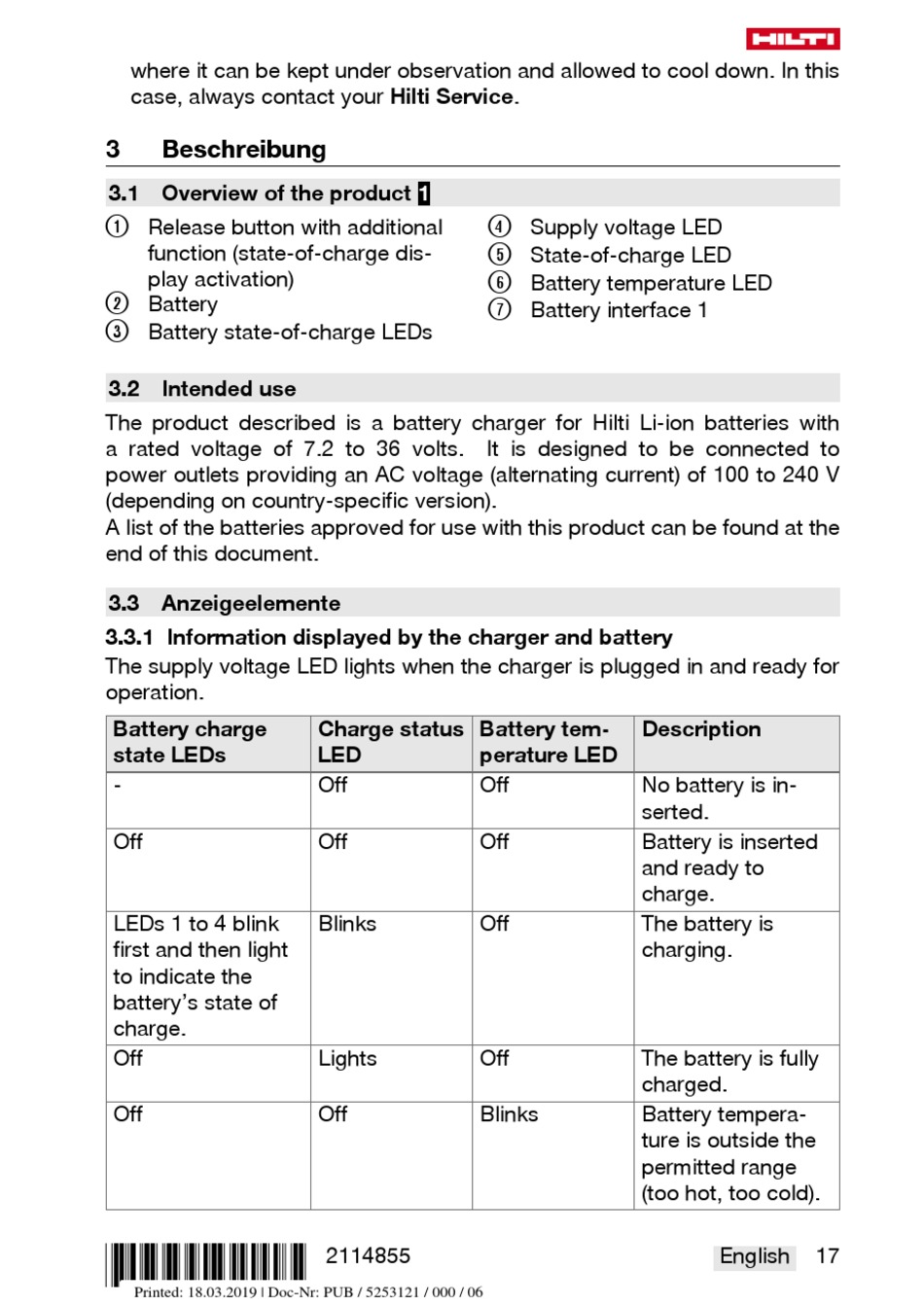

where it can be kept under observation and allowed to cool down. In this
case, always contact your Hilti Service.
3

Beschreibung

3.1 Overview of the product
Release button with additional
@
function (state-of-charge dis-
play activation)
Battery
;
Battery state-of-charge LEDs
=

3.2 Intended use

The product described is a battery charger for Hilti Li-ion batteries with
a rated voltage of 7.2 to 36 volts. It is designed to be connected to
power outlets providing an AC voltage (alternating current) of 100 to 240 V
(depending on country-specific version).
A list of the batteries approved for use with this product can be found at the
end of this document.
3.3 Anzeigeelemente
3.3.1 Information displayed by the charger and battery
The supply voltage LED lights when the charger is plugged in and ready for
operation.
Battery charge
state LEDs
­
Off
LEDs 1 to 4 blink
first and then light
to indicate the
battery's state of
charge.
Off
Off
*2114855*
Printed: 18.03.2019 | Doc-Nr: PUB / 5253121 / 000 / 06
1
%
&
(
)
Charge status Battery tem-
LED perature LED
Off Off
Off Off
Blinks Off
Lights Off
Off Blinks
2114855
Supply voltage LED
State-of-charge LED
Battery temperature LED
Battery interface 1
Description
No battery is in-
serted.
Battery is inserted
and ready to
charge.
The battery is
charging.
The battery is fully
charged.
Battery tempera-
ture is outside the
permitted range
(too hot, too cold).
English 17
