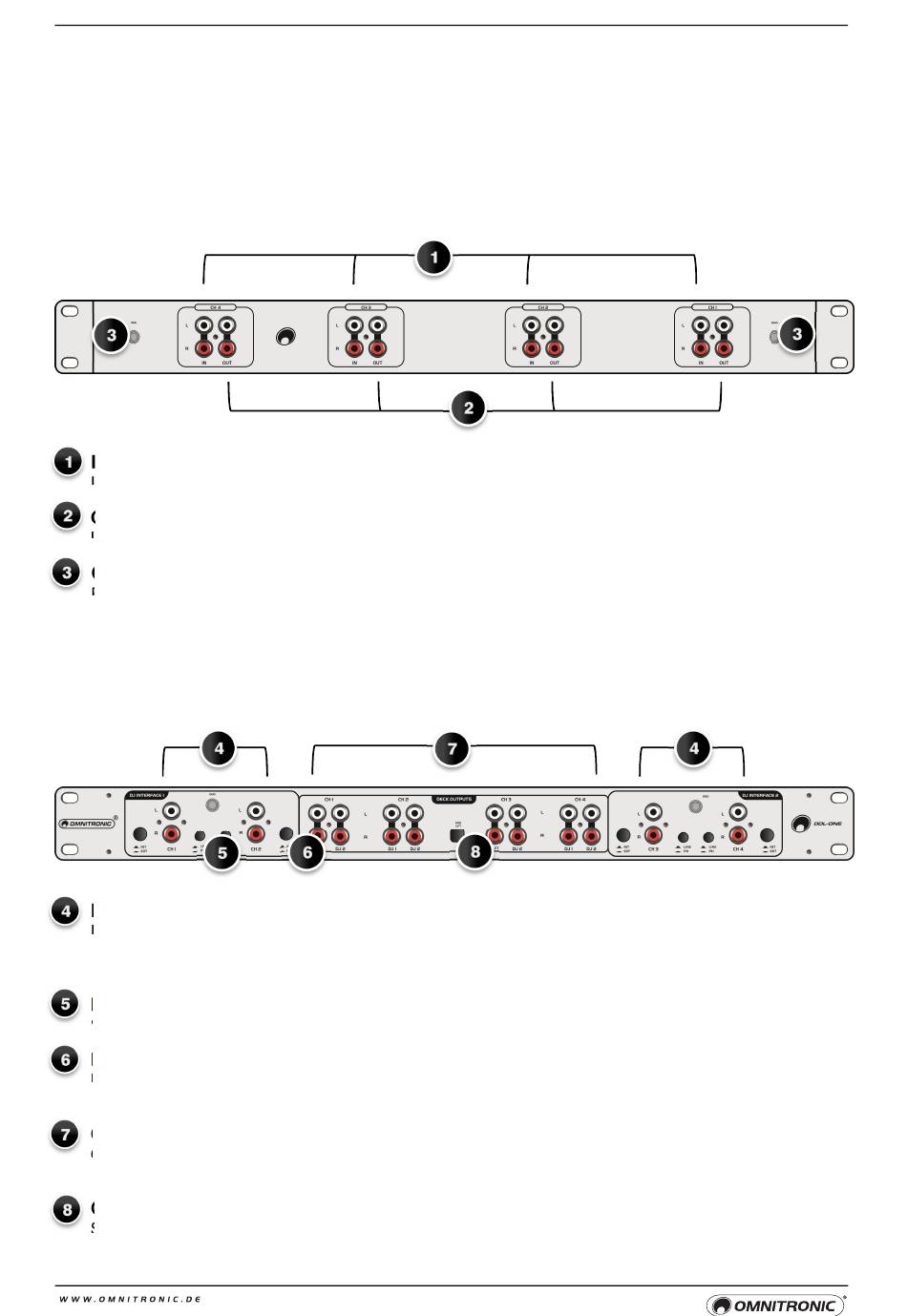

OPERATING ELEMENTS & CONNECTIONS

Rear Panel

The rear panel is provided with 4 inputs for CD players or turntables with ground lead as well as 4 outputs to the
DJ mixer.
Inputs Channel 1 to 4
Line/phono inputs for connecting line-level CD players or turntables with magnetic system.
Outputs Channel 1 to 4
Line/phono outputs for connecting the input of the DJ mixer.
Ground Terminals
For connecting the ground lead of turntables and if necessary the DJ mixer.
..............................................................................................................................................................................

Front Panel

The front panel offers inputs and outputs for 2 digital DJ interfaces or soundcards of DVS systems (Digital
Vinyl Systems) as well as selector switches for the input level and the signal routing.
Inputs Channel 1/2 and Channel 3/4
For inserting external line or phono signals into the inputs of the DJ mixer. Connect the outputs of the
DJ interfaces or soundcards here. Alternatively, the inputs can be user for other audio units such as DJ
controllers and MP3 players. Ground terminals are available here also.
Input Selector Switches
Switch the inputs between line and phono level, for each channel 1 to 4.
Routing Selector Switches
Either route the signal of the rear CD players or turntables or the signal of the DJ interfaces or
soundcards to the inputs of the DJ mixer, for each channel 1 to 4.
Outputs Channel 1 to 4
Carry the signals of the rear CD players or turntables for connecting the inputs of the DJ interfaces or
soundcards.
Groundlift Switch
Separates the ground connection between the inputs and outputs in the event of a ground loop.
