STEP 3
Using a hammer and a 14mm Drill Bit, drill the holes into the wall on the marks for
brackets.
The holes should be drilled 9 cm into the wall, ensuring that the hole goes through solid
brick or concrete.
Do not drill through mortar as this will not provide satisfactory strength to hold the wall
bolts.
USEFUL TIP
To ensure the depth of the hole is accurate, measure 9cm from the end of the Drill Bit with
a ruler and wrap some tape around the Drill Bit in this position.
When the tape marker is level with the wall, you have reached the correct depth.
INSTALLATION ONTO WOODEN HOUSES AND CHALETS
This awning can be fitted onto wooden walls and Chalets providing that the wall has
adequate strength to support the weight of the awning.
Always ensure that the wall brackets are securely fitted onto the outside of strong
wooden wall studs.
The wall bolts provided in the fitting kit will not be suitable for securing to wooden studs;
therefore, you will need to purchase coach bolts of sufficient length and diameter from your
local hardware store to replace the wall bolts provided.

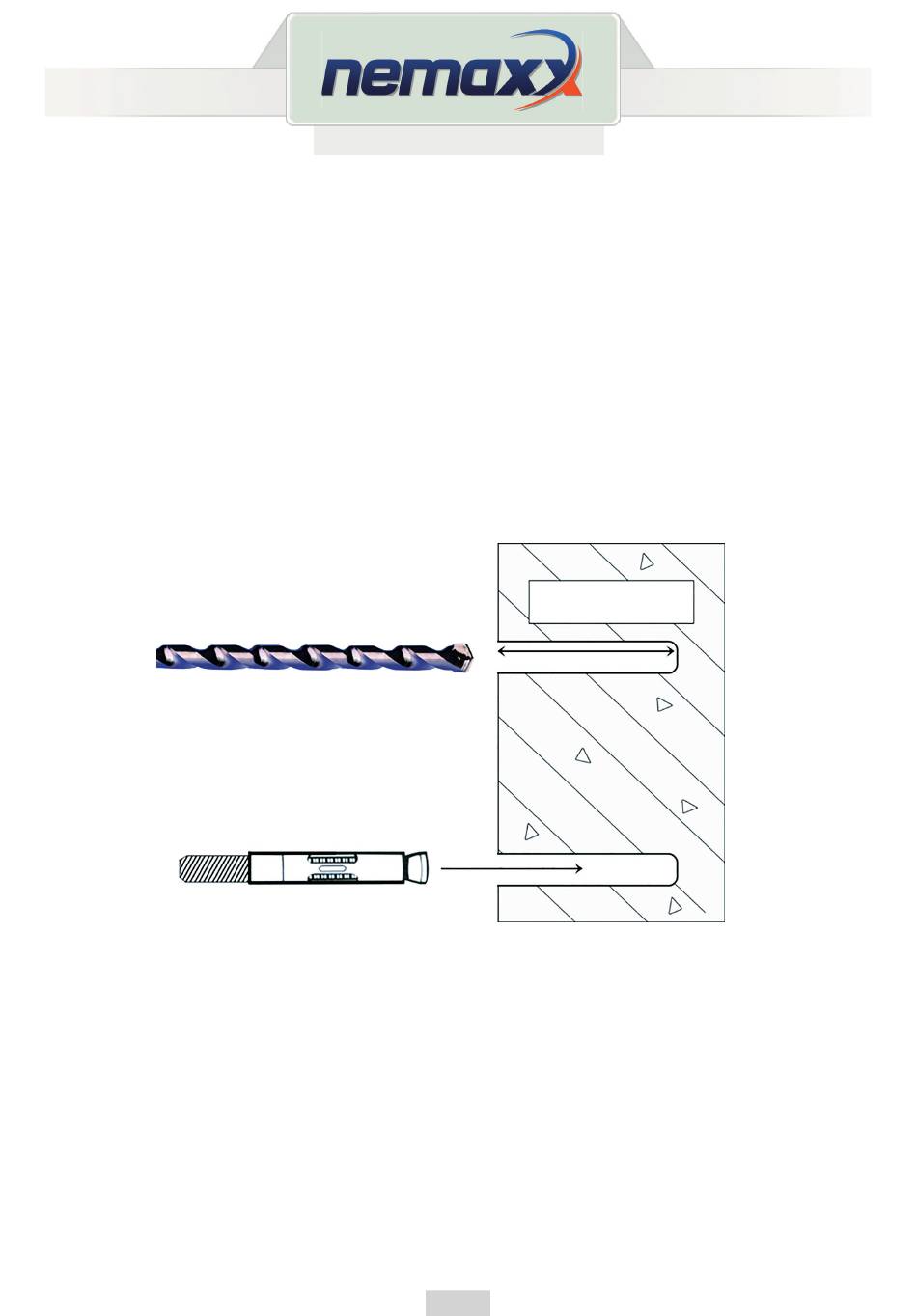

14mm masonary drill
Insert wall bolt
EN
Cross section
of wall
9 cm
