Energi Savr Node

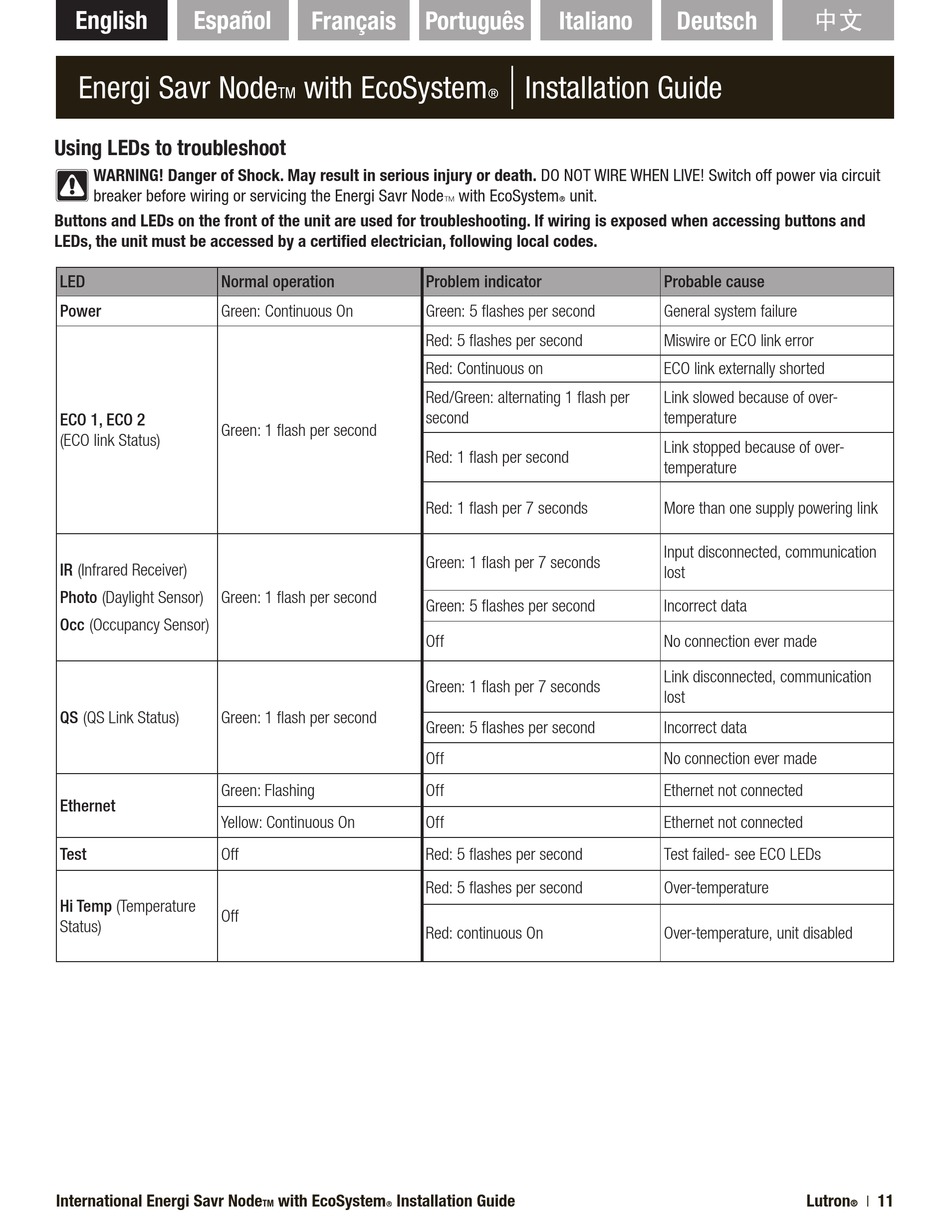

Using LEDs to troubleshoot

WARNING! Danger of Shock. May result in serious injury or death. DO NOT WIRE WHEN LIVE! Switch off power via circuit
breaker before wiring or servicing the Energi Savr NodeT with EcoSystemR unit.
Buttons and LEDs on the front of the unit are used for troubleshooting. If wiring is exposed when accessing buttons and
LEDs, the unit must be accessed by a certified electrician, following local codes.
LED Normal operation
Power
Green: Continuous On
ECO 1, ECO 2
Green: 1 flash per second
(ECO link Status)
IR (Infrared Receiver)
Photo (Daylight Sensor) Green: 1 flash per second
Occ (Occupancy Sensor)
QS (QS Link Status) Green: 1 flash per second
Green: Flashing
Ethernet
Yellow: Continuous On
Test Off
Hi Temp (Temperature
Off
Status)
International Energi Savr Node
English
Français Português
with EcoSystemR
TM
Problem indicator
Green: 5 flashes per second
Red: 5 flashes per second
Red: Continuous on
Red/Green: alternating 1 flash per
second
Red: 1 flash per second
Red: 1 flash per 7 seconds
Green: 1 flash per 7 seconds
Green: 5 flashes per second
Off
Green: 1 flash per 7 seconds
Green: 5 flashes per second
Off
Off
Off
Red: 5 flashes per second
Red: 5 flashes per second
Red: continuous On
with EcoSystemR Installation Guide
TM
Italiano Deutsch
|
Installation Guide
Probable cause
General system failure
Miswire or ECO link error
ECO link externally shorted
Link slowed because of over-
temperature
Link stopped because of over-
temperature
More than one supply powering link
Input disconnected, communication
lost
Incorrect data
No connection ever made
Link disconnected, communication
lost
Incorrect data
No connection ever made
Ethernet not connected
Ethernet not connected
Test failed- see ECO LEDs
Over-temperature
Over-temperature, unit disabled
中文
Lutron 11
|
®
