Energi Savr Node
Please read this guide before installing.
Contents
Ratings .................................................................................1
Model number overview .......................................................1
Product overview..................................................................2
Wiring overview....................................................................2
Mounting the Energi Savr NodeT with EcoSystemR unit ........3
Mains voltage wiring ............................................................4
ECO link wiring .....................................................................5
Input group wiring ................................................................6
Sample applications .............................................................6
QS link wiring .......................................................................7
Installation of programming connections ..............................9
Verifying EcoSystemR lights connected to
ECO link 1 and link 2 .....................................................10
Using LEDs to troubleshoot .................................................11
Warranty ............................................................................12
Contact information ............................................................12

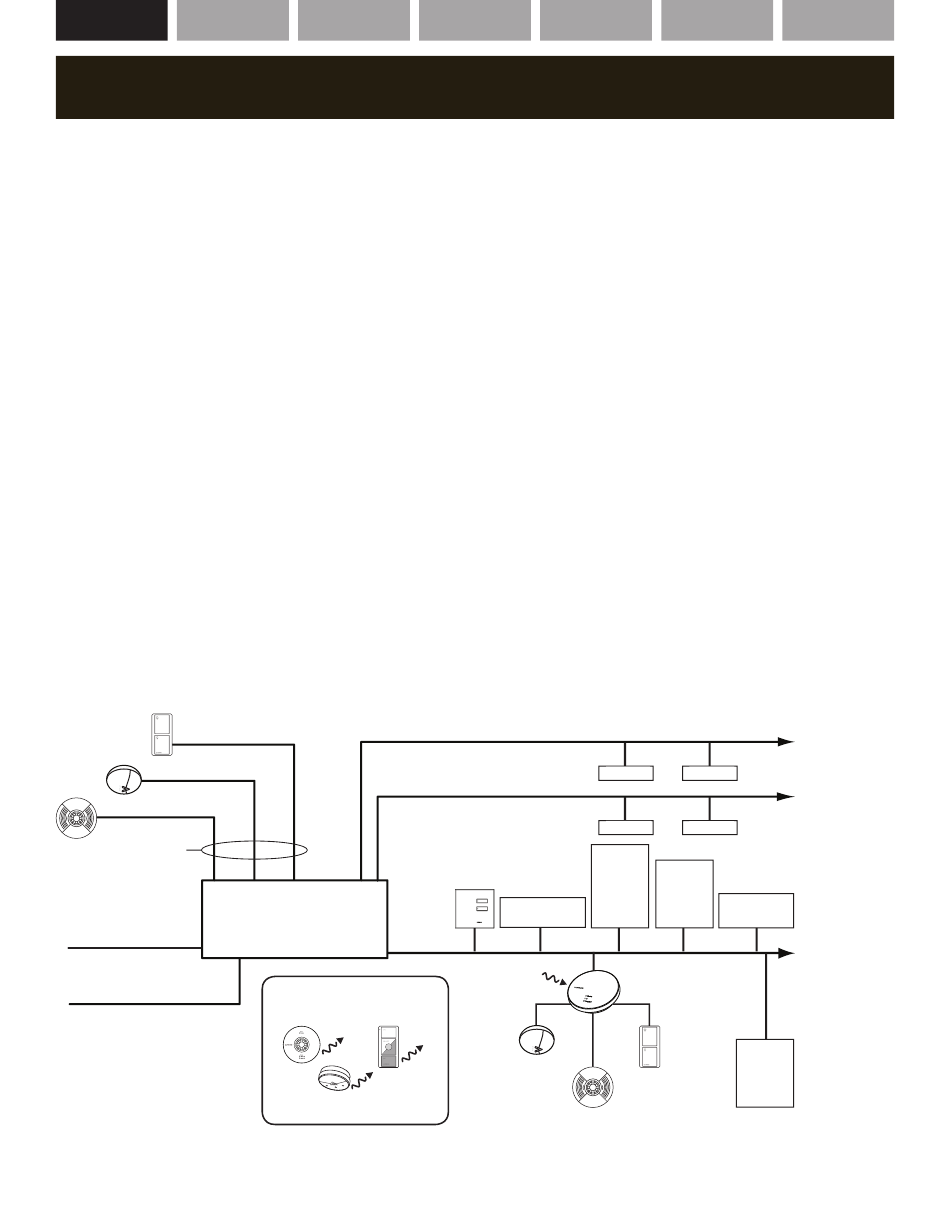

System Example
Wired PicoR Controller
Daylight Sensor
Occupancy Sensor
One input group shown;
connections available for
up to four input groups.
Energi Savr NodeT
Control Power:
with EcoSystemR
~
220-240 V
Ethernet
Programming Link
Note: Multiple QSMs can
be added to increase
the number of wireless
sensors and PicoR wireless
controllers.
International Energi Savr Node
English
Français Português
with EcoSystemR
TM
Page
ECO Link 1
ECO Link 2
seeTouchR QS
QS
Link
Radio Powr SavrT PicoR Wireless
Occupancy Sensor (up Controller (up
to 10 per QSM)
to 10 per QSM)
Radio Powr SavrT Daylight
Sensor (up to 10 per QSM)
with EcoSystemR Installation Guide
TM
Italiano
|
Installation Guide

Ratings

Control Power: 220-240 V~ 50/60 Hz 100 mA
Output: 18 V- 250 mA per ECO Link
Operating environment: 0 ˚C to 40 ˚C
Maximum humidity: 90% non-condensing
Thermal dissipation: 35 BTU/hr
Calibration point maximum: 75 ˚C
QS link: 24 V- 100 mA
3 Power Draw Units (PDUs)
Input Groups: 20 V- 65 mA per group
Standards: IEC/EN 60669-2-1

Model number overview

QSNE-2ECO-D
QSNE: Energi Savr NodeT with EcoSystemR unit
2: 2 ECO Links
ECO: EcoSystemR
D: DIN rail compatible
Ballast
Ballast
QuantumR
Wallstation
Panel
Energi Savr NodeT
with EcoSystemR
Wireless
QSM
Communication
Wired
Wired
Daylight
Occupancy
Sensors*
Sensors*
* Up to 4 wired sensors total (of any type)
Deutsch
中文
Up to 64
ballasts on
Ballast
each link
Ballast
QS
Contact
Closure
GRAFIK
Interface
EyeR QS unit
Up to 100
total QS
devices
Wired PicoR
Controller
QS Power
Supply
Lutron 1
|
®
