5. Replace the wiring diagram in the terminal box cover by the diagram sup-
plied with the module, see fig. 2.

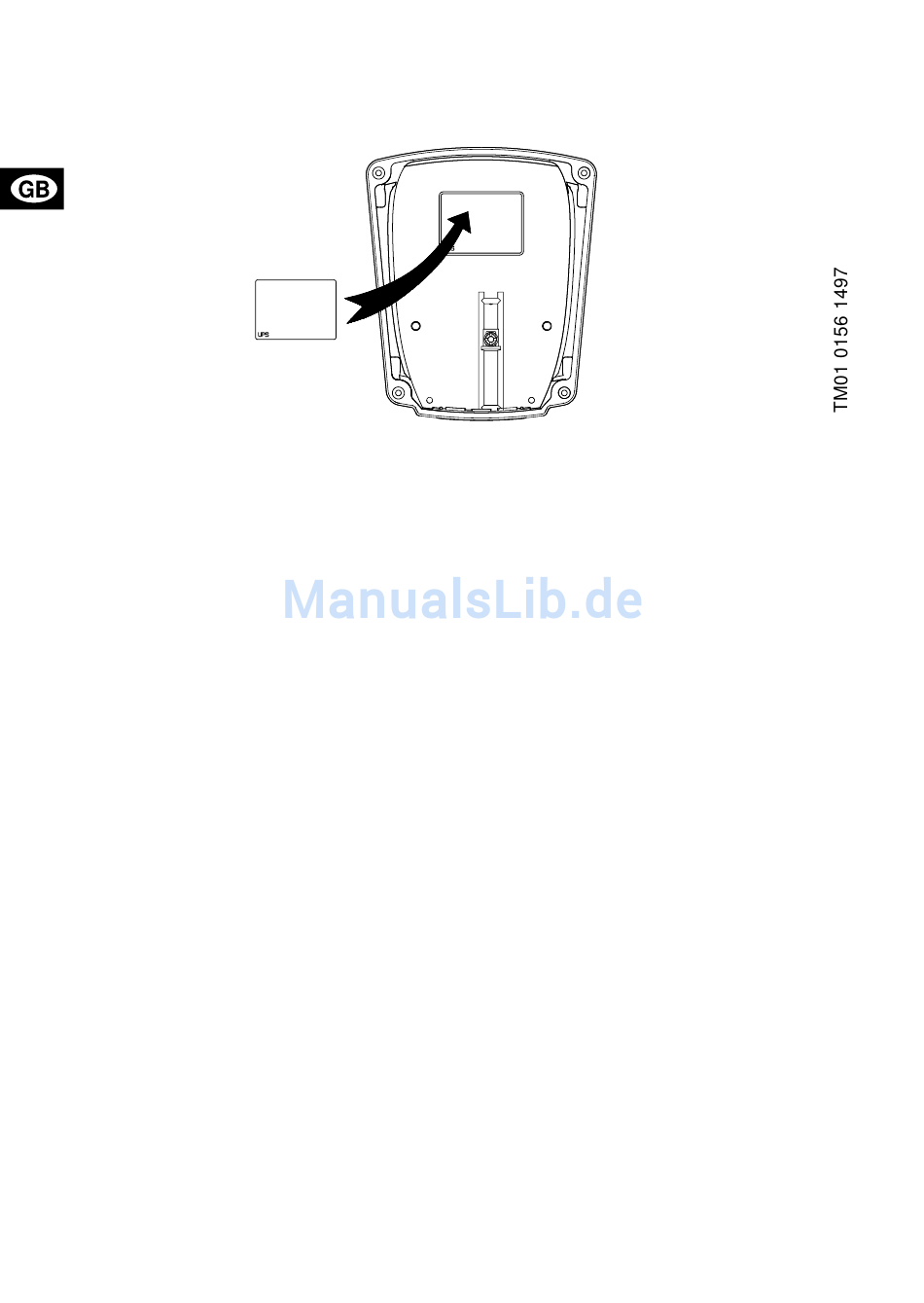

Fig. 2
6. A bus module, if required, must be fitted in accordance with the fitting in-
structions for this module.
7. Connect all wires to the terminal block, see fig. A, page 37.
8. Fit the terminal box cover.
9. Switch on the electricity supply by means of the external mains switch.

5. Technical data

Liquid temperature:
When the pump is fitted with a basic module, the maximum permissible liquid
temperature of 110°C must not be exceeded (continuous operation).
Input for start/stop (terminals 7 and 8):
External potential-free contact.
Maximum load: 250 V, 1.5 mA.
Minimum load: 100 V, 0.5 mA.
6
Subject to alterations. .
