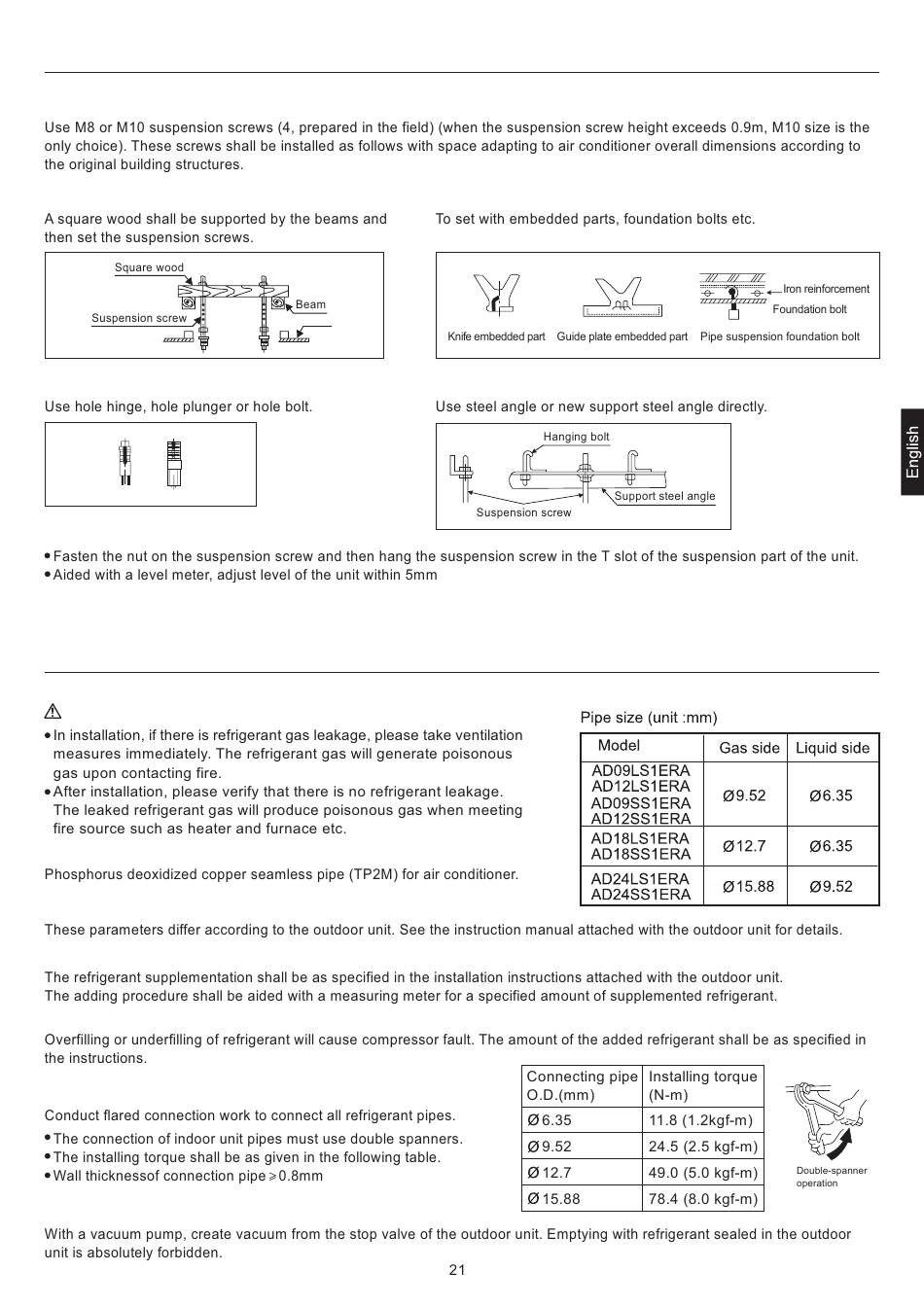

Installation Procedure
Installing the suspension screw
Wooden structure
Original concrete slad
Hanging of the indoor unit
Installation Procedure
CAUTION
Pipe material
Allowable pipe length and drop
Supplementary refrigerant
Note:
Connection of refrigerant pipe
Creating vacuum
New concrete slab
Steel reinforcement structure
Air Duct
Refrigerant Pipe
