E-Gleitschiene Boxer
5

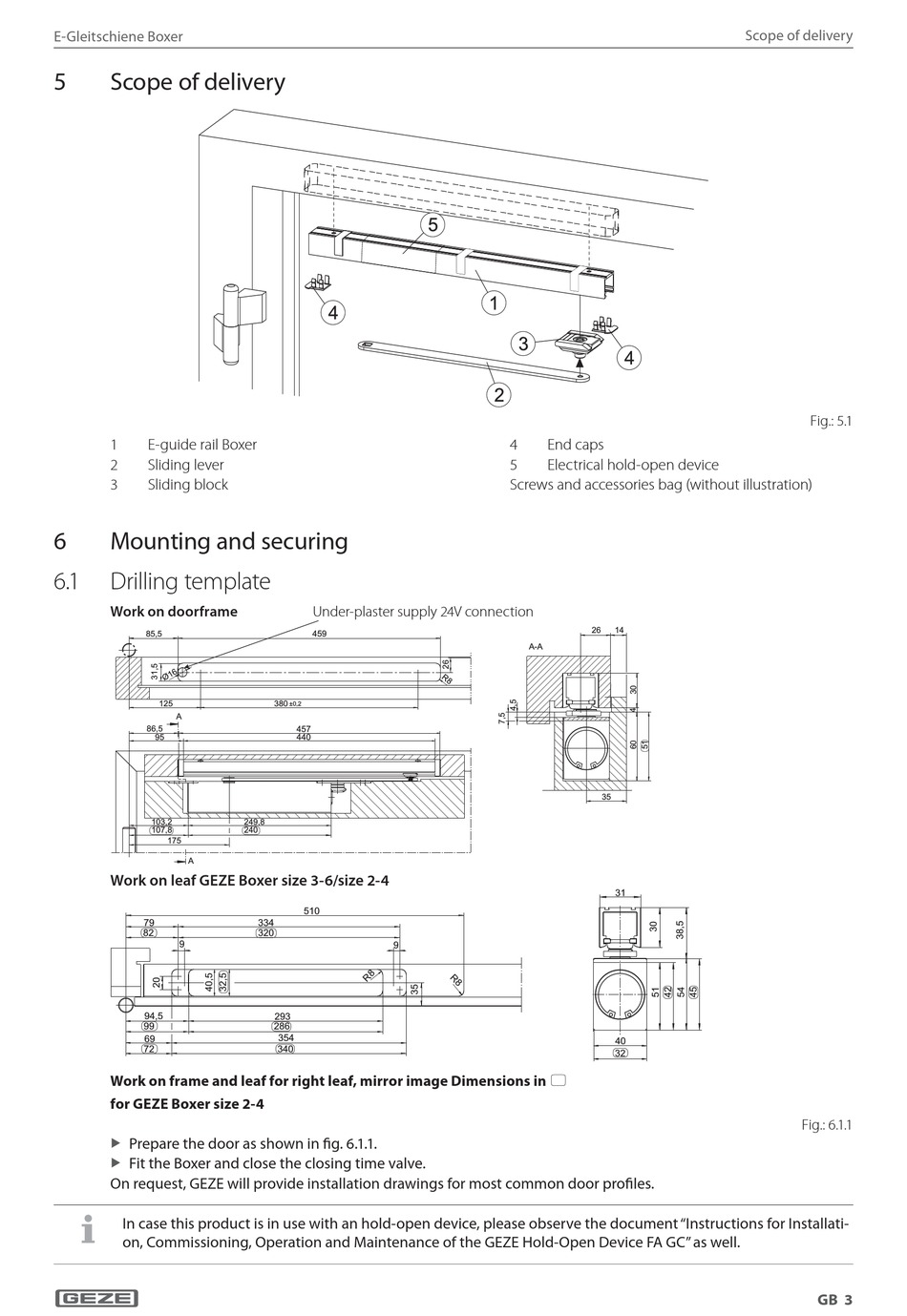

Scope of delivery

1 E-guide rail Boxer
2 Sliding lever
3 Sliding block
6 Mounting and securing
6. 1 Drilling template
Work on doorframe
85,5
125
A
86,5
95
103,2
107,8
175
A
Work on leaf GEZE Boxer size 3-6/size 2-4
79
82
9
94,5
99
69
72
Work on frame and leaf for right leaf, mirror image Dimensions in
for GEZE Boxer size 2-4
X
Prepare the door as shown in fig. 6.1.1.
X
Fit the Boxer and close the closing time valve.
On request, GEZE will provide installation drawings for most common door profiles.
In case this product is in use with an hold-open device, please observe the document "Instructions for Installati-
on, Commissioning, Operation and Maintenance of the GEZE Hold-Open Device FA GC" as well.
Under-plaster supply 24V connection
459
380
±0,2
457
440
249,8
240
510
334
320
9
293
286
354
340
4 End caps
5 Electrical hold-open device
Screws and accessories bag (without illustration)
26 14
A-A
35
31
40
32

Scope of delivery
Fig.: 5.1
Fig.: 6.1.1
