Danger of explosion if not properly grounded.

4. Machine specifications

4.1 Technical data

Dust inlet
Air flow Ø150
Air flow Ø100
Vacuum pressure
Collector bag capacity
Collector bag diameter
Mains
Output power
Reference current
Extension cord (H07RN-F)
Installation fuse protection
Protection class
Mains
Output power
Reference current
Extension cord (H07RN-F)
Installation fuse protection
Protection class
DC-1100A:
Overall (LxWxH)
Net weight
DC-1100CK:
Overall (LxWxH)
Net weight

4.2 Noise emission

Measured, in 1m distance, 1.6m above the floor, with
flexible hose connected. (inspection tolerance 4 dB).
Acoustic pressure level
(EN ISO 11202):
The specified values are emission levels and are not
necessarily to be seen as safe operating levels.
As workplace conditions vary, this information is intended
to allow the user to make a better estimation of the
hazards and risks involved only.
4.3 Content of delivery
Filter bag (DC-1100A)
Canister filter (DC-1100CK)
Mobile casters
Vortex Cone
Cone support bracket
Dust inlet 2 x 100 mm
Set of 5 collection bags
Operating manual
Parts list
Ø150mm (2xØ100mm)
1620 m³/h
1150 m³/h
1700Pa
155L
500mm
1~230V, PE, 50Hz
1,1kW (1,5HP) S1
4.8 A
3x1,5mm²
10A
I
3~400V, PE, 50Hz
1,1kW (1,5HP) S1
2 A
4x1,5mm²
10A
I
940x510x2000mm
48 kg
940x510x1830mm
71 kg
LpA 80 dB(A).

5. Assembly and start up

The machine is designed to operate in dry, enclosed
rooms and must be placed stable on firm and levelled
ground.
For mobility, the unit is equipped with 4 wheels.
You must observe the machine´s center of gravity,
otherwise the machine may tip!
For packing reasons the machine is not completely
assembled.

5.1 Assembly

If you notice transport damage while unpacking, notify
your supplier immediately. Do not operate the unit!
Dispose of the packing in an environmentally friendly
manner.
Attention:
The dust collector must be disconnected from the power
source during assembly.

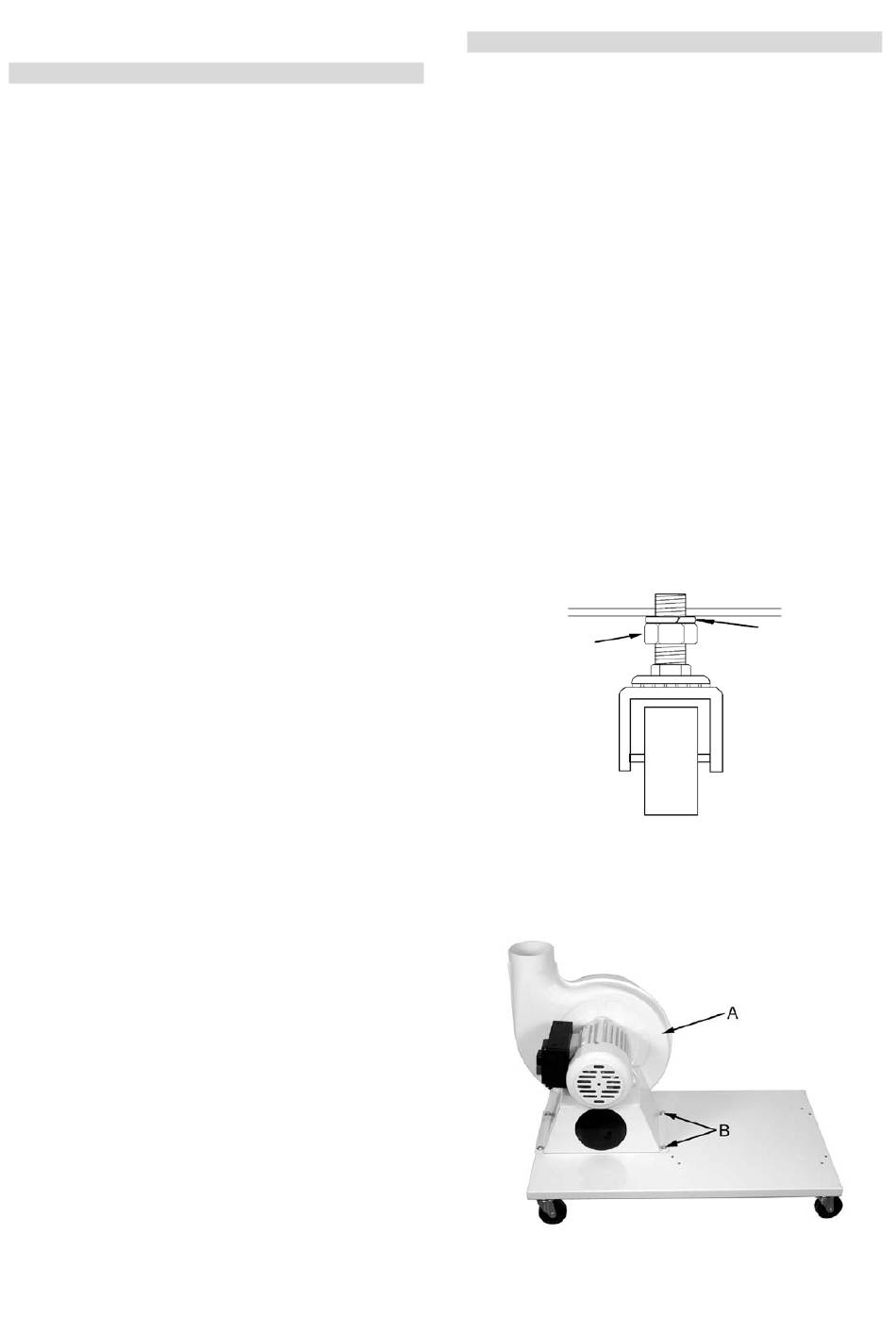

Base:
Install four casters to the under side of the base with lock
washer and nut (Fig 1)
Motor and fan assembly:
Attach the motor and fan assembly (A) to the base, using
4 hex cap screws (B) and flat washers.
Fig 1
Fig 2
