B) Camera and monitor connection
1.
Connect up to four cameras to the BNC camera inputs (23).
2.
Connect the monitor to the BNC output (22).
To connect a BNC plug securely, fi rst lightly turn the connector until it aligns with the guide pins on the socket. Then
push the connector onto the socket and turn clockwise while pushing, to lock.
To release the BNC plug, fi rst push in and then turn counter-clockwise.

C) Power adapter connection

Handle the power adapter with dry hands.
Do not unplug the power adapter through the mains cable, always unplug it with the grip area of the power
plug.
1.
Connect the low-voltage connector of the power adapter to the power receptacle (24) of the DVR.
2.
Connect the mains cable to the power adapter.
3.
Plug the power plug to a grounded mains socket. The DVR will turn on automatically.

D) Video format setting

Always ensure that the power is disconnected before opening the housing of the DVR.
Only open the housing in dry conditions. Rain water, moisture and prolonged condensation inside the
housing may cause serious damage to the DVR and disturb the picture quality when in operation.
Wait for few minutes to open the housing after operation, because:
-
The heat radiator on the PCB could be hot after operation.
-
Capacitors in the DVR could still be charged even if the device has been disconnected from voltage
source.
Ground yourself with a grounding mat or anti-static wristbands to prevent electrical static discharge (ESD)
from your body and clothes during installation. Integrated circuits are sensitive to electrical static. They can
be damaged or destroyed if ESD occurred.
1.
Remove the hard disk compartment (13) if a hard disk is installed.
2.
Remove the four rubber feet at the bottom of the housing and then unscrew the
four screws.
3.
Push the interior out gently from the back of the DVR.
4.

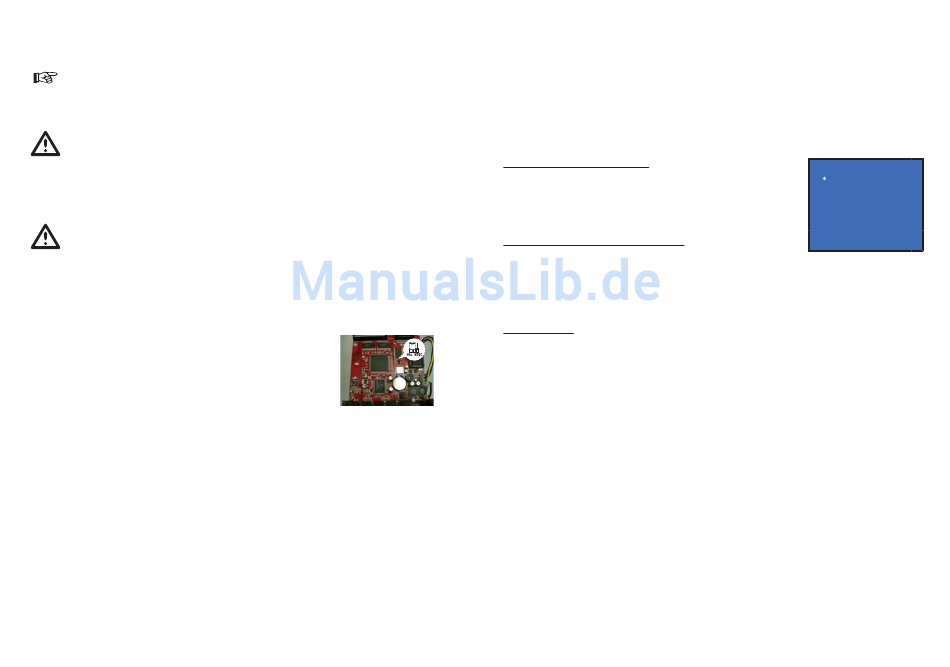

Locate the jumper, JS1, to either PAL or NTSC pins.
5.
Re-assemble the DVR.
28
11. Lecture
A) Lecture en temps réel
1.
Appuyer sur la touche «CH1» (3) pour affi cher le canal 1 en plein écran.
2.
Appuyer sur la touche «CH2» (4) pour affi cher le canal 2 en plein écran.
3.
Appuyer sur la touche «CH3» (5) pour affi cher le canal 3 en plein écran.
4.
Appuyer sur la touche «CH4» (6) pour affi cher le canal 4 en plein écran.
5.
Appuyer sur la touche «QUAD» (7) pour affi cher tous les quatre canaux en même temps.
6.
Appuyer sur la touche «QUAD» (7) pendant 3 secondes pour passer d'un canal activé à l'autre puis affi cher tous les canaux
en mode QUAD en séquence.
B) Lecture de vidéo enregistrée
Pour sélectionner le clip vidéo de la liste
1.
Appuyer sur la touche «PLAY» (18) pour jouer la vidéo enregistrée.
2.
Appuyer sur la touche «MENU» (8) pour affi cher la liste des clips vidéo enregistrés. Les
clips vidéo sont classés par ordre chronologique.
3.
Appuyer sur la touche «UP» (9) ou «DOWN» (10) pour naviguer dans le menu.
4.
Appuyer sur la touche «PLAY» (18) pour jouer le clip vidéo.
Pour jouer des clips vidéo à une heure déterminée
1.
Appuyer sur la touche «FWD» (17) pour accéder au champ de l'heure de démarrage
de la vidéo.
2.
Appuyer sur la touche «UP» (9) ou «DOWN» (10) pour choisir le chiffre que vous
souhaitez modifi er. Un astérisque «*» signale le chiffre choisi.
3.
Appuyer sur la touche «SEL» (11) pour augmenter le chiffre choisi d'un.
4.
Appuyer sur la touche «PLAY» (18) pour jouer le clip vidéo choisi.
En cours de lecture
1.
Appuyer sur la touche «CH1» (3), «CH2» (4), «CH3» (5) ou «CH4» (6) pour affi cher le
canal approprié de la caméra.
2.
Appuyer sur la touche «QUAD» (7) pour affi cher tous les quatre canaux en même
temps.
3.
Appuyer sur la touche «FWD» (17) pour avancer rapidement, appuyer deux fois sur
la touche pour multiplier la vitesse par deux, et trois fois pour multiplier la vitesse par
trois.
4.
Appuyer sur la touche «REW» (20) pour rembobiner.
5.
Appuyer sur la touche «PAUSE» (19) pour suspendre la lecture.
6.
Appuyer sur la touche «STOP» (16) pour arrêter la lecture.
28%
SEARCH TIME
07/07/07 18:30:21 - 07/07/07 18:31:15
>
01
TIME
2007/07/07
18:30:21
02
TIME
2007/07/07
15:20:11
03
MOTION
2007/07/06
20:45:35
04
MOTION
2007/07/06
17:08:01
05
MOTION
2007/07/06
12:01:10
06
MOTION
2007/07/06
09:50:55
07
MOTION
2007/07/05
06:19:48
(UP,DOWN) MOVE (PLAY) PLAY (MENU)
EXIT
(FEW) SELECT MODE (SEL) CHANGE
53
