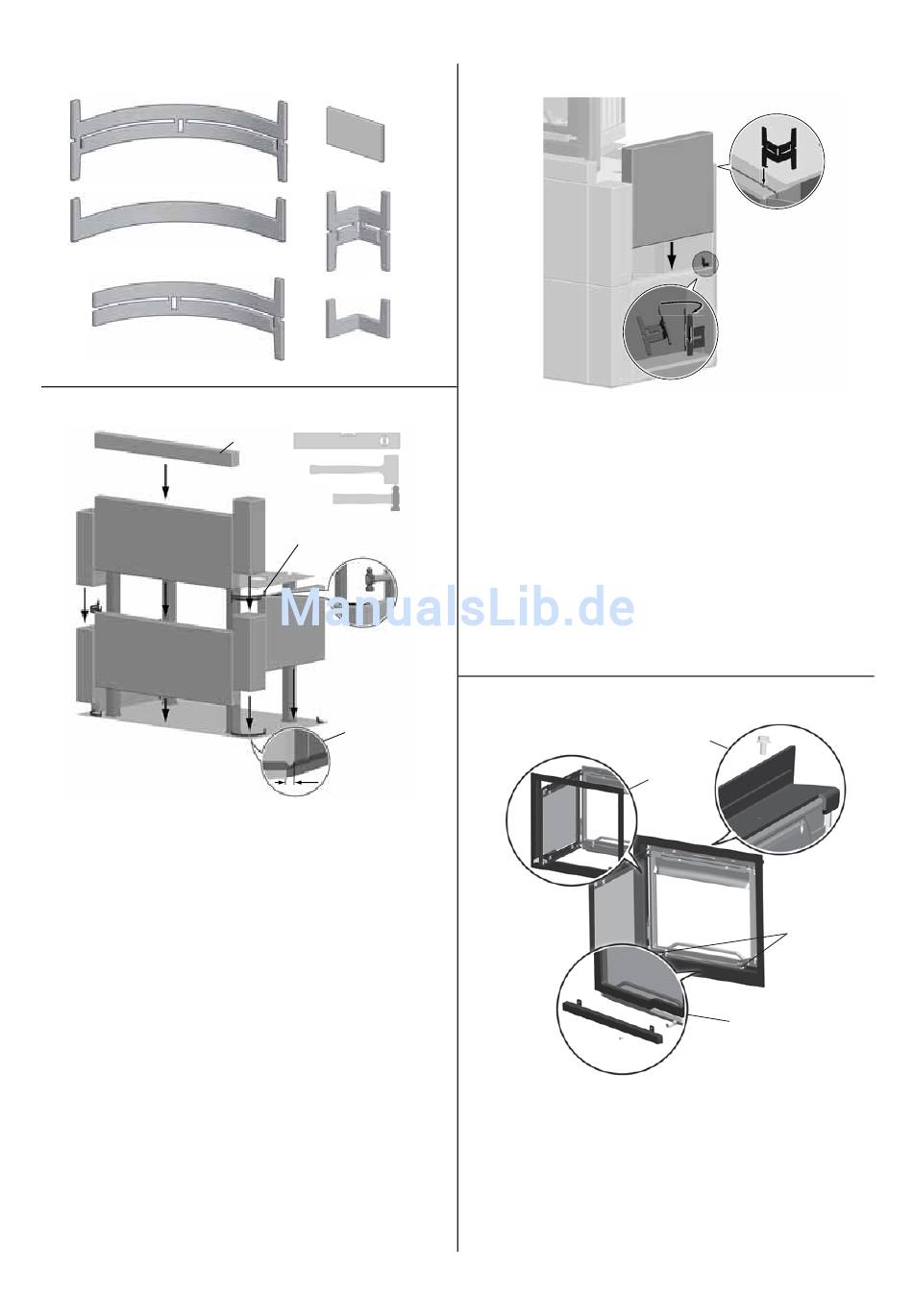

Fig. 9
Bracket 1
Bracket 4
Bracket 5
Fig. 10
1. Put layer no. 1 of the soap stone on the bottom plate. Use
bracket 4 and bracket 6 to keep them together at the lower
edge.
NB!: Do not use corner stones marked 223628 until layer 4. See
fig. 15.
2. Make sure that the layer is level and correctly positioned on
the bottom plate (Fig. 10 A). Use a rubber mallet to adjust
the stone.
3. Put the front stone and the corner stones on layer no. 2 and
use bracket 1 (Fig. 10 B) to join them together with layer no. 1.
Bracket 2 Bracket 2
Bracket 3
Bracket 6
C
B
A
3mm
Fig. 11
1. Lift the insert up onto the console. Be careful – the insert
is heavy!
2. Replace the heat shield.
Fasten the rear plate to bracket 6 which is underneath layer
3.
no. 1.
Push bracket 3 in from inside and through the rear plate
4.
(Fig. 11 A). Use a hammer and carefully tap it down into the
soap stone.
5. Fit the side stone for layer no. 2 between the corner stones
and the rear plate. Attach with bracket 3 (Fig. 11 B).
6. Make sure all the parts are level and flush with one another.
Fig. 12
Remove the lower cover (Fig.12 A).
1.
2. Fit the decorative frame over the door and hook it over the
front (Fig. 12 B).
3. Attach the trim panel with the same screws as those used
for the lower cover (Fig. 12 C).
Remove the M8 screw provided (Fig. 12 D).
4.
ENGLISH
D
B
C
A
