6 HOW COMPEX WIRELESS WORKS

It is highly recommended that you read the contraindications and safety measures described at the beginning of this manual in chapter 2 prior
to using your device.

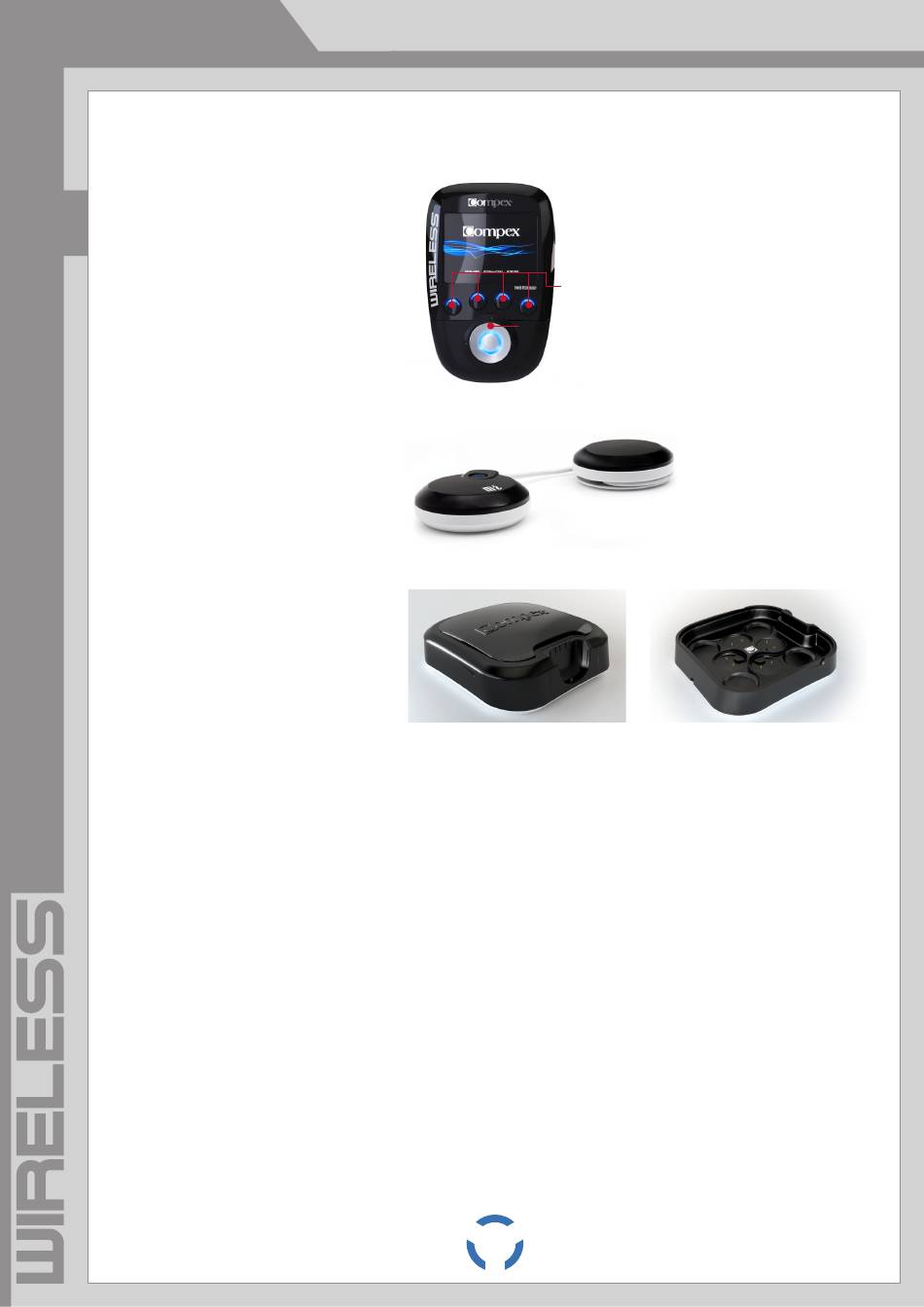

1 DESCRIPTION OF THE DEVICE

EN
REMOTE CONTROL
A On/Off button (press briefly to switch on but press
and hold longer than 2 seconds to switch off)
B 4 multi-function buttons:
• Functions associated with the icons shown on
the screen (e.g. info, main menu, electrode
placement, etc.)
• Selection of stimulation channel to increase or
decrease stimulation energy level
C Multi-directional pad (up-down-left-right) to
select items
D Validation button
E Port for USB cable or docking station connector
MODULE
A On/Off button (press briefly to switch on but press
and hold longer than 2 seconds to switch off)
• LED blinking green: ready for use
• LED blinking yellow: stimulating
B Groove to wind up the cable
DOCKING STATION
A Connector for charging the remote control
B Notch for opening the top of the docking station
C Slot for positioning the modules to be recharged
D
Socket for the AC adaptor
