Press the "Function" button until "H512" is displayed. Use the "UP" and "DOWN" keys to increase or decrease
the value H001 - min, H512 - max Press the "Function" key until "F512" is displayed. Use the "UP" and "DOWN"
buttons to increase or decrease the value F001 - min, F512 max
DMX Controls:
Channel assignment:
Channel
1
2
DMX is the abbreviation for digital multiplex and allows the digital control of several DMX devices via a common
control cable.
Connect the DMX input of the unit to the DMX output of a DMX controller or other DMX device. Connect the output
of the first DMX device to the input of the second and so on to form a series circuit

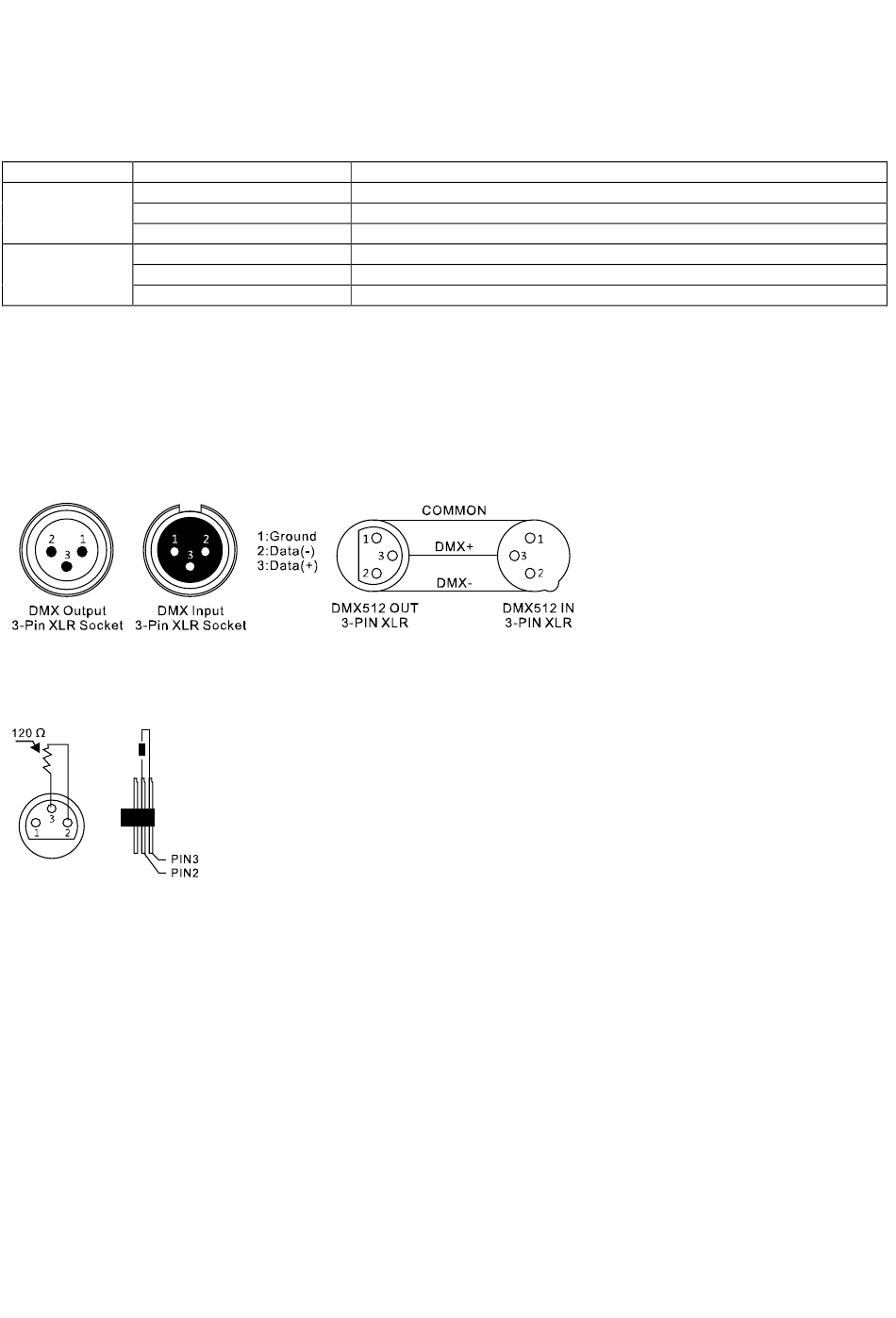

DMX connectors:
A three-pin XLR socket serves as a DMX output, a three-pin XLR connector serves as a DMX input.
For installations with very long DMX cable paths or high electrical interference, such as in a discotheque, it is
recommended to use a DMX terminator. The DMX terminator is connected in an XLR connector as a 120 Ω resistor
between pins 2 and 3 which is plugged into the last output socket of the DMX line.
Value
0 - 5
6 - 249
250 - 255
0 - 5
6 - 249
250 - 255
Function
No function
Fog amount (5 - 95%)
Max ejaculation (100%)
No function
Fan speed (5 - 95%)
Max speed (100%)
