Installationshandbuch | VLT® Control Panel LCP 601 und Fern-
Einbausatz
1 Frontplatte
2 Schraube
3 Bundschraube
4 Unterlegscheibe
5 Federscheibe
6 Sechskantmutter
7 VLT® Control Panel LCP 601
8 Dichtung
9 Display
10 Kabel

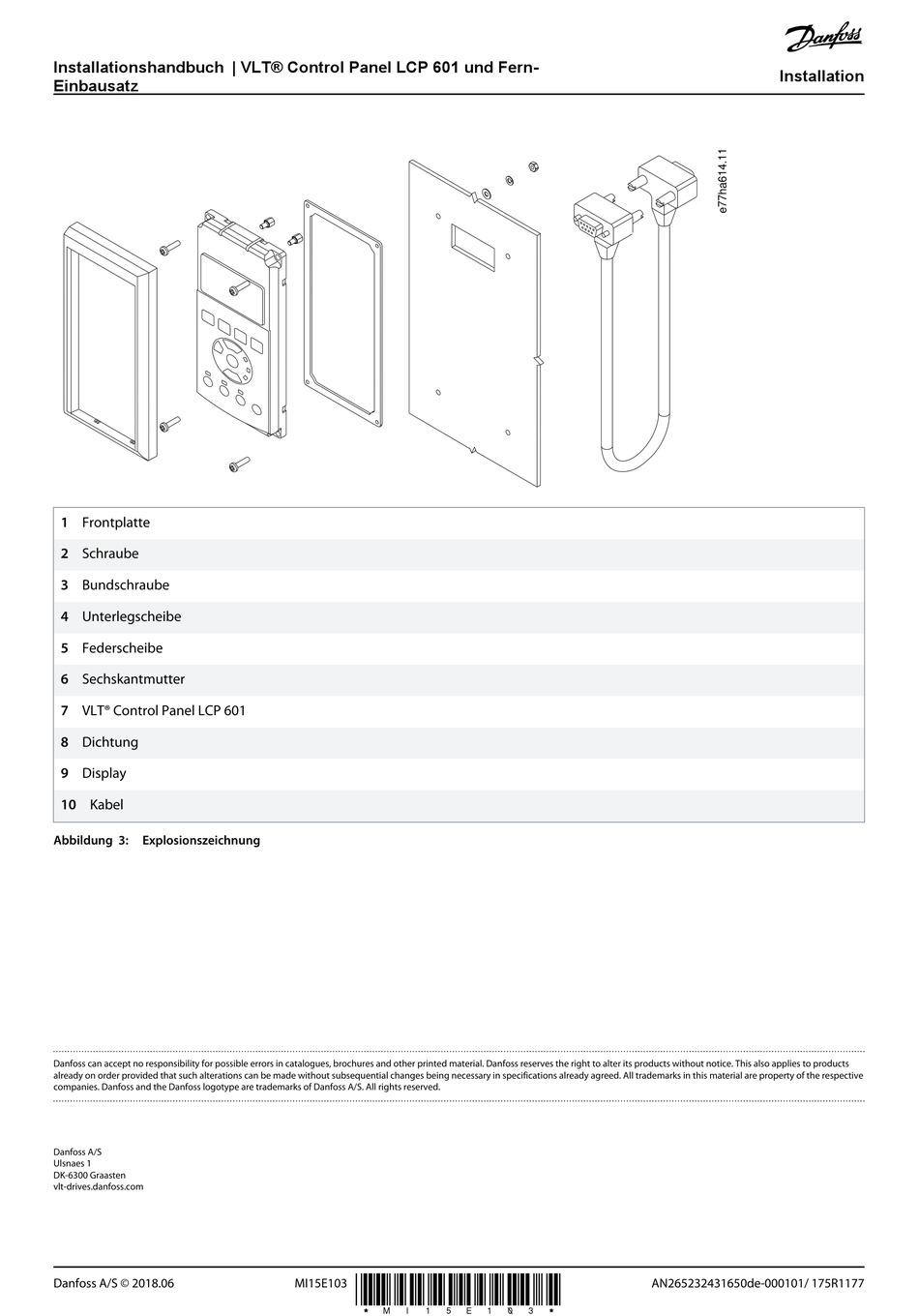

Abbildung 3:
Explosionszeichnung
