Flow upper alarm limit: 9.90 L/min
■
Flow lower alarm limit: -0.10 L/min
■
Pressure 1 upper alarm limit: 650 mm Hg
■
Pressure 1 lower alarm limit: -10 mm Hg
■
Pressure 2 upper alarm limit: 650 mm Hg
■
Pressure 2 lower alarm limit: -10 mm Hg
■
Level sensor alarms: off
■
Bubble detector alarms: off
■
AutoClamp: off
■
Setup
Note: The Bio-Console 560 maintains the flow and pressure alarm limits through power cycles.
Case Preparation
Installing the Affinity™ CP Centrifugal Blood Pump
1. Slide the Affinity CP centrifugal blood pump into the External Drive Motor 560A (Figure 1) until the
thumb latch pin engages.
Note: Whenever possible, install the pump at the lowest point in the circuit, directly below the reservoir.
2. Prime the centrifugal blood pump according to the procedures described in this manual.
Caution: Operating the centrifugal blood pump without being primed will cause damage to the
centrifugal blood pump.
3. Turn the rpm knob to the clicked-OFF position. As the knob is turned to zero, slight pressure can be
felt and a click is heard. The black button on the knob serves as the pointer to the rpm settings.
Caution: Installing the centrifugal blood pump with the motor revolving may harm the pump.
Warning: Use of the Affinity CP centrifugal blood pump beyond the labeled recommendations may
result in failure of the centrifugal blood pump, reduced pumping capacity, leaks, excessive blood
trauma, or degradation or corrosion of blood contact materials that may pass through the blood to the
patient.

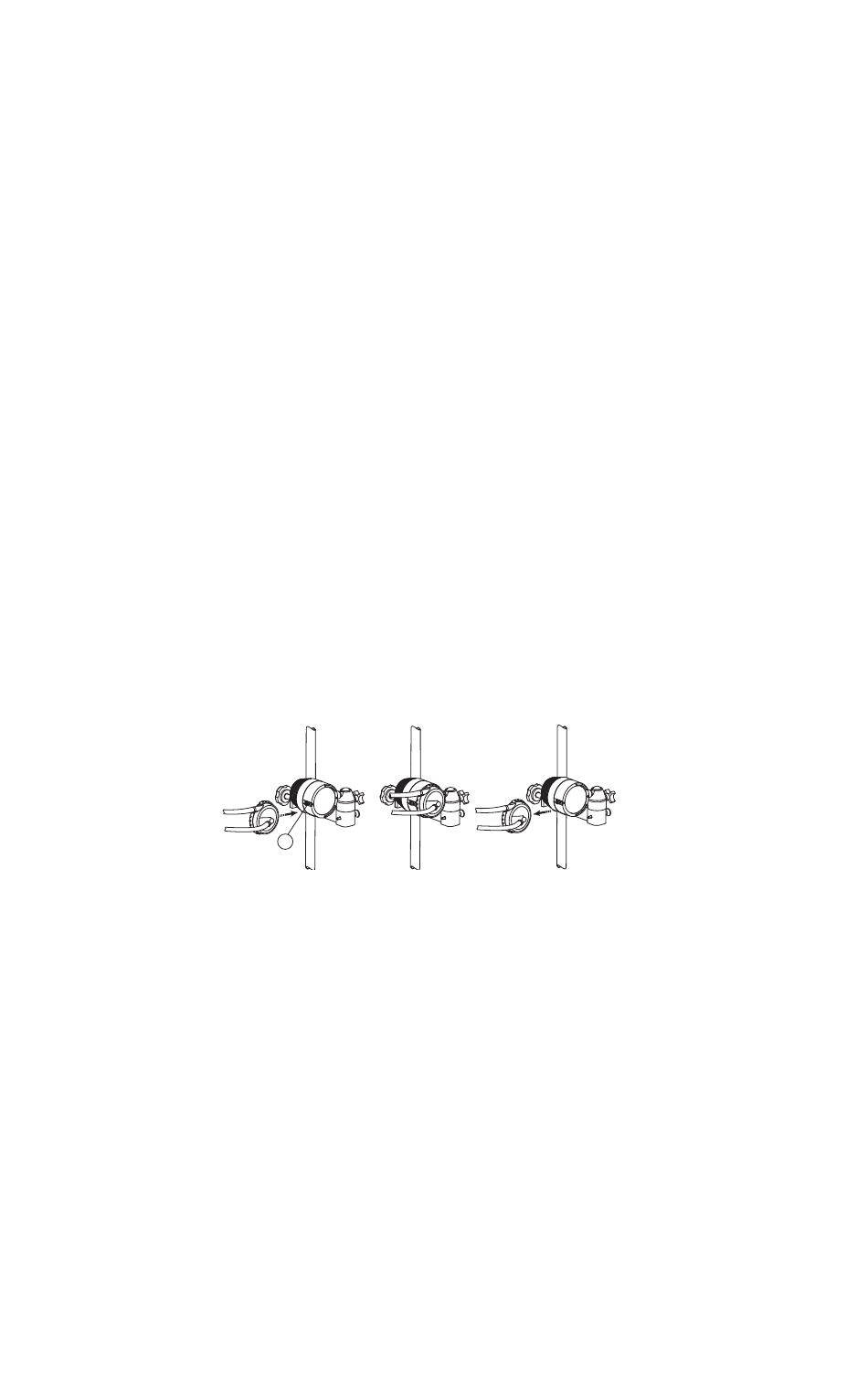

Figure 1. Installing and Removing the Affinity CP Centrifugal Blood Pump
1. Thumb latch with locking pin on External Drive Motor 560A
Removing the Affinity™ CP Centrifugal Blood Pump
Remove and discard the pump after each procedure. Discard the pump according to local and hospital
protocols.
1. Push the pump motor thumb latch to release the centrifugal blood pump (Figure 1).
2. Slide the centrifugal blood pump out of the pump motor receptacle (Figure 1).
On-Pump Operation
Stopping Flow: Taking a Patient off Cardiopulmonary Bypass
Note: After stopping flow, perform the Shutdown Procedure.
Shutdown Procedure
1. Ensure the RPM is set to zero.
2. Press the Power On/Standby switch to the Standby position.
3. Remove the disposable tubing set and discard it in an approved biohazard container.
Digital Output
Overview
Note: The printer or computer data acquisition device attached to the communication port must comply with
IEC 950.
