3. Technical Description

3.1. Technical Description
1 2

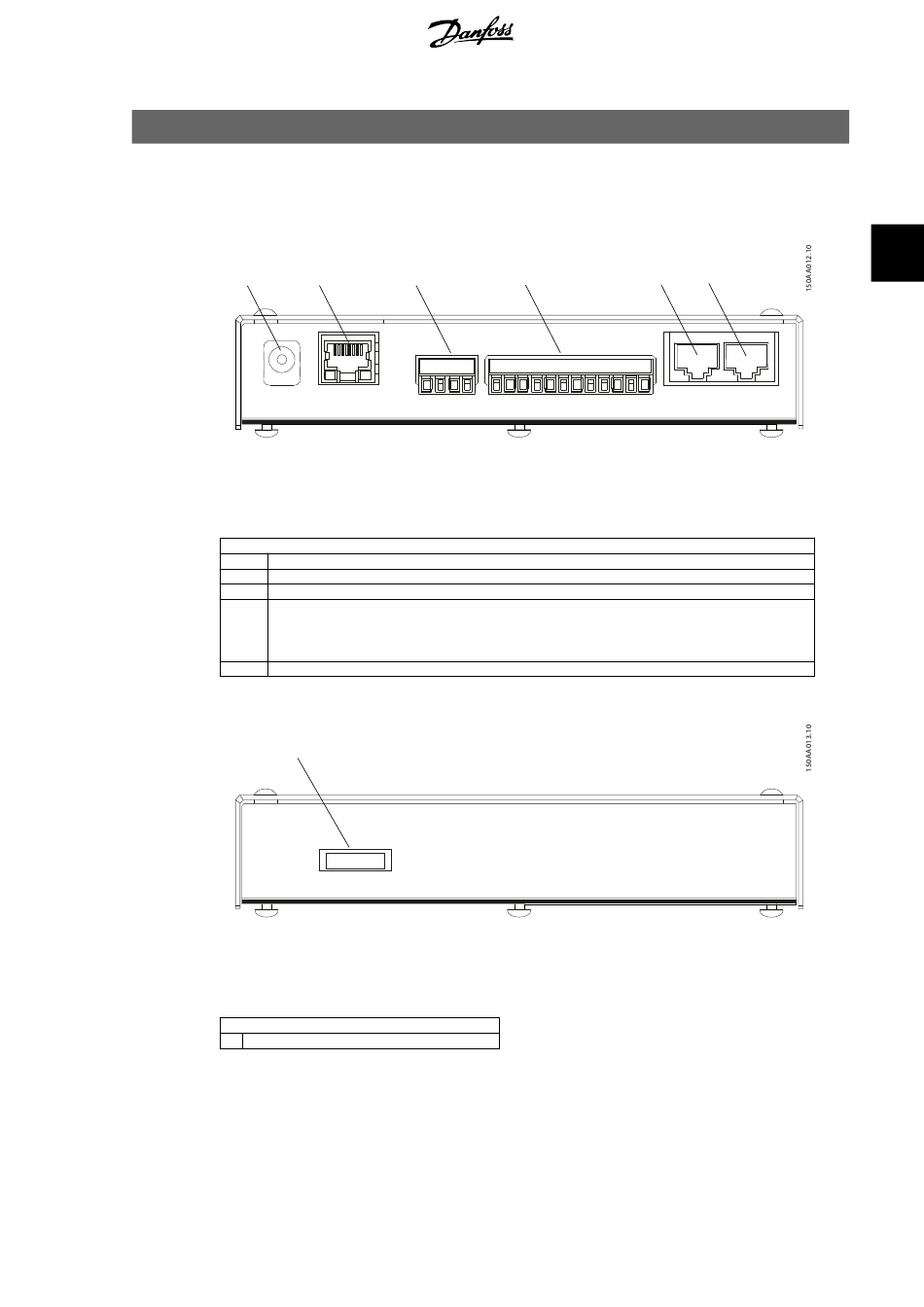

Illustration 3.1: CLX GM Connectors (Bottom)
Legend
1 Power supply with circular connector (12–30 VDC, 1 W)
2 Ethernet port for LAN
3 Not used
4 Input terminals, 12 lines:
2 x voltage (+)
6 x relay input (S01, S02, S03, S04, S05
4 x analog input 20 mA (A1+, A1-, A2+, A2-)
5 & 6 Not used
*) Not used.
7
Illustration 3.2: CLX GM Connectors (Top)
Legend
7 Micro SD slot: not used
3 4
*) *)
, S06 )
*)
L00410637-01_5b
3. Technical Description
5 6
3
7
