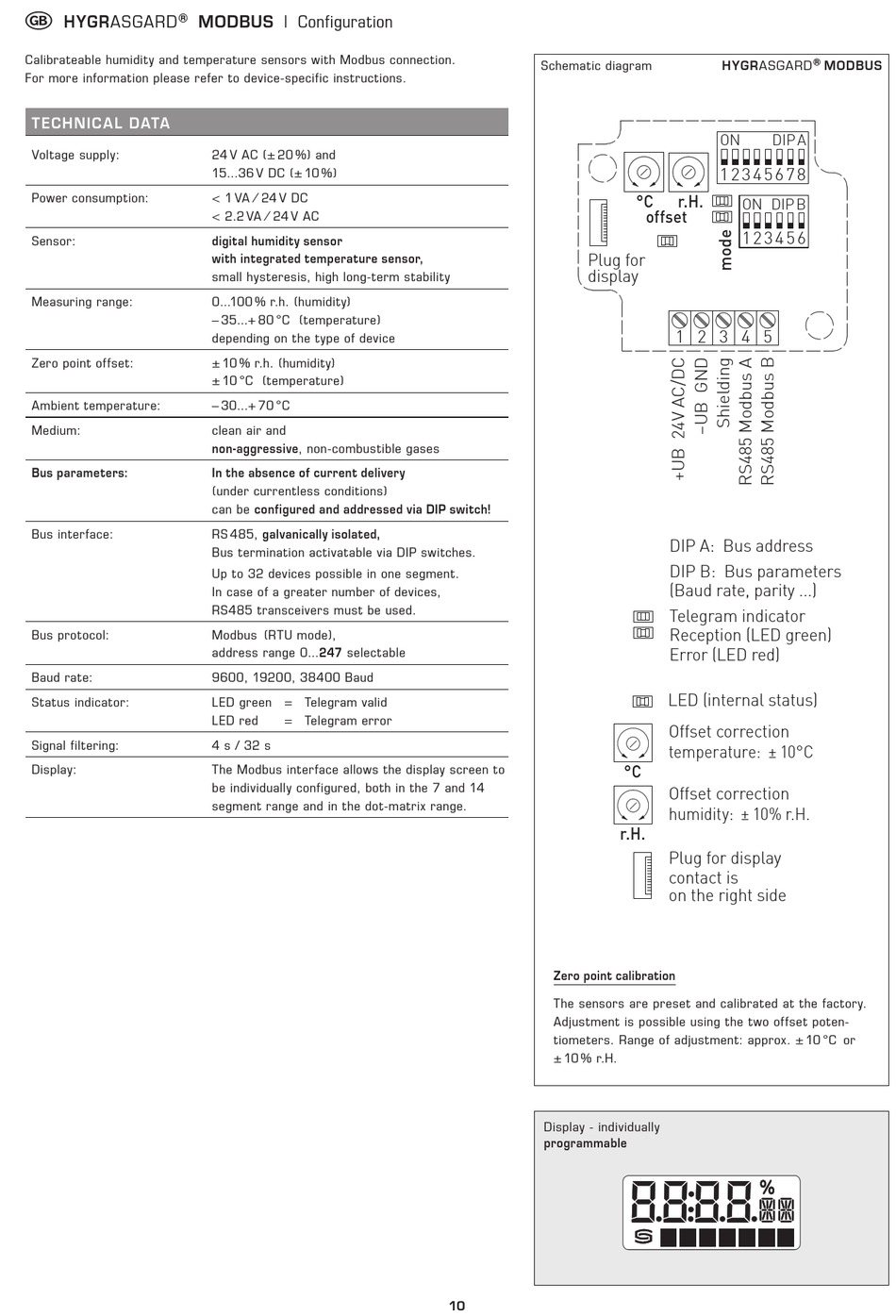

Technical Data - S+S REGELTECHNIK HYGRASGARD MODBUS Bedienungs- Und Montageanleitung

G
®
HYGRASGARD
Calibrateable humidity and temperature sensors with Modbus connection.
For more information please refer to device-specific instructions.

TECHNICAL DATA

Voltage supply:
Power consumption:
Sensor:
Measuring range:
Zero point offset:
Ambient temperature:
Medium:
Bus parameters:
Bus interface:
Bus protocol:
Baud rate:
Status indicator:
Signal filtering:
Display:
MODBUS | Configuration
24 V AC (± 20 %) and
15...36 V DC (± 10 %)
< 1 VA ⁄ 24 V DC
< 2.2 VA ⁄ 24 V AC
digital humidity sensor
with integrated temperature sensor,
small hysteresis, high long-term stability
0...100 % r.h. (humidity)
– 35...+ 80 °C (temperature)
depending on the type of device
± 10 % r.h. (humidity)
± 10 °C (temperature)
– 30...+ 70 °C
clean air and
non-aggressive, non-combustible gases
In the absence of current delivery
(under currentless conditions)
can be configured and addressed via DIP switch!
RS 485, galvanically isolated,
Bus termination activatable via DIP switches.
Up to 32 devices possible in one segment.
In case of a greater number of devices,
RS485 transceivers must be used. °C
Modbus (RTU mode),
address range 0...247 selectable
Plug for
9600, 19200, 38400 Baud
display
LED green = Telegram valid
LED red = Telegram error
4 s / 32 s
The Modbus interface allows the display screen to
be individually configured, both in the 7 and 14
segment range and in the dot-matrix range.
Schematic diagram
ON DIP A
1 2 3 4 5 6 7 8
r.H.
ON DIP B
offset
1 2 3 4 5 6
1 2 3 4 5
Display - individually
programmable
10
HYGRASGARD
ON
1 2 3 4 5 6 7 8
°C r.H.
offset
Plug for
display
1 2 3 4 5
DIP A: Bus address
DIP B: Bus parameters
(Baud rate, parity ...)
Telegram indicator
Reception (LED green)
Error (LED red)
LED (internal status)
Offset correction
temperature: ± 10°C
°C
Offset correction
humidity: ± 10% r.H.
r.H.
Plug for display
contact is
on the right side
Zero point calibration
The sensors are preset and calibrated at the factory.
Adjustment is possible using the two offset poten-
tiometers. Range of adjustment: approx. ± 10 °C or
± 10 % r.H.
®
MODBUS
DIP A
ON DIP B
1 2 3 4 5 6
°C
r.H.
