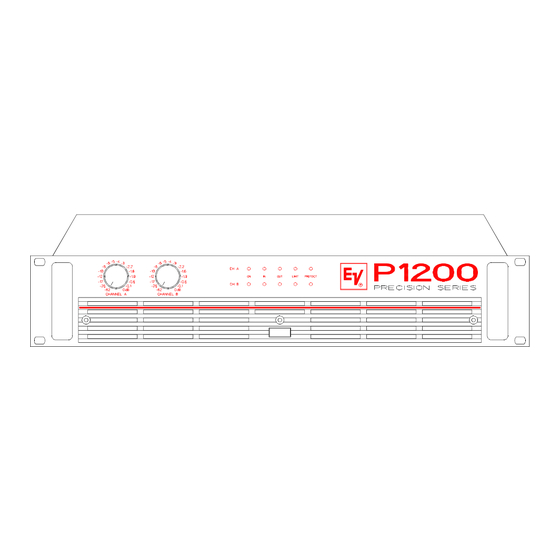

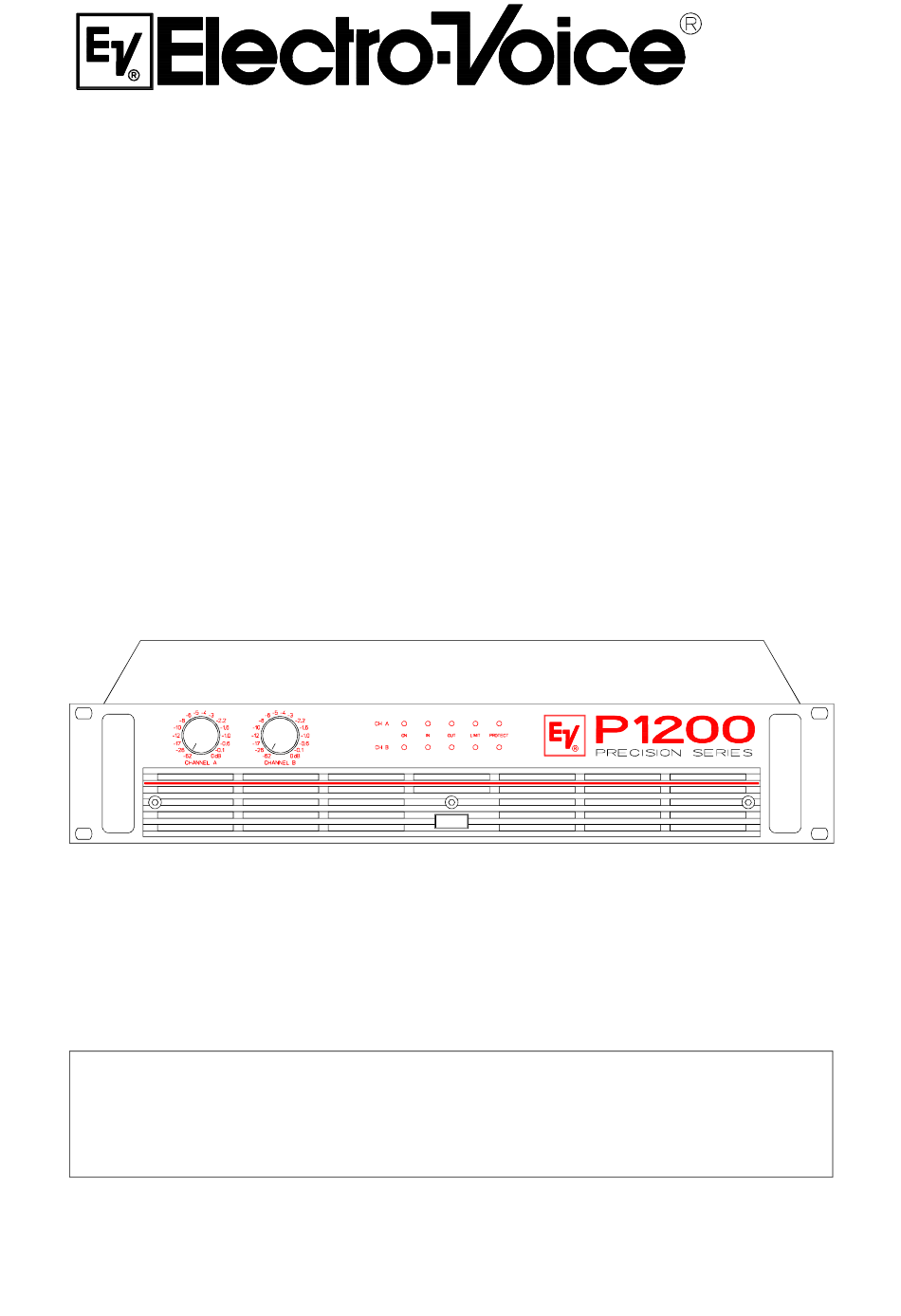

- Seite 1 SERVICE MANUAL P1200 PRECISION SERIES...
-
Seite 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol, within an equi- lateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintance (servicing) instructions in the... - Seite 3 Seite 1/1 Service department Josef Stadler Service Information December 1999 Product: P1200 Title: Selfoscillation of the amp using very long loudspeaker cables ( bundled ) Solution: Please replace the following parts: pc board Parts Value 81303 C5 & C105 220p replaced with 47p 84154 C5 &...
- Seite 4 Seite 1/1 Service department Josef Stadler Service Information December 1999 Product: P1200 Title: Selfoscillation of the amp using very long loudspeaker cables ( bundled ) Solution: Please replace the following parts: pc board Parts Value 81303 C5 & C105 220p replaced with 47p 84154 C5 &...
- Seite 10 Page 1 / 10 Ersatzteilliste - Bill of Materials 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description Zubehör Accessories & packing material 341341 STECKER-SPEAKON 4POL speakon-connector 4-pole 351209 OWNER'S MANUAL P 1200 owner's manual 349522 FILTER-LÜFTER L 1000...
- Seite 11 Page 2 / 10 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description CN007 343516 FL.STECKER 4.8/0.5 connector 4.8mm faston CN008 341937 MESSERLST. 4POL connector male 4-pin CN009 341937 MESSERLST. 4POL connector male 4-pin C0001 342937 KO-FOL...
- Seite 12 Page 3 / 10 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description J0456 340681 STIFTLEISTE 2X 3POL connector male 2x3-pin Q0001 335763 TRANS 2N 3904 transistor 2N 3904 Q0002 307150 TRANS BC 337-25 TO 92 transistor BC 337-25 Q0003...
- Seite 13 Page 4 / 10 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description C0028 329021 KO-KER 0.10MF 100V 20% cap ceramic 100nF C0029 329021 KO-KER 0.10MF 100V 20% cap ceramic 100nF C0030 341714 KO-SO 0.10MF 275V 20% safety cap 100nF/275V C0034...
- Seite 14 Page 5 / 10 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description D0309 307916 DIODZ BZX 55C 7V5 0.50W diode zener 7V5 D0310 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D0312 301254 DIODE 1N 4148 AXIAL...
- Seite 15 Page 6 / 10 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description Q0033 331658 TRANS MJ 15023 transistor MJ 15023 Q0034 331657 TRANS MJ 15022 transistor MJ 15022 Q0035 331658 TRANS MJ 15023 transistor MJ 15023 Q0036 331657...
- Seite 16 Page 7 / 10 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description Q0337 331658 TRANS MJ 15023 transistor MJ 15023 Q0338 331657 TRANS MJ 15022 transistor MJ 15022 Q0339 331658 TRANS MJ 15023 transistor MJ 15023 Q0342 348422...
- Seite 17 Page 8 / 10 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description R0435 348590 WI-DR 8.20 OHM 4.00W 5% resistor 8.20 Ohm 4watt R0438 348593 WI-SO NTC K 164/2.2K safety component NTC R0439 348593 WI-SO NTC K 164/2.2K...
- Seite 18 Page 9 / 10 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description D0029 301254 DIODE 1N 4148 AXIAL diode 1N 4148 D0030 304360 DIODE 1N 4007 GEGURTET diode 1N 4002 D0031 304360 DIODE 1N 4007 GEGURTET diode 1N 4002...
- Seite 19 Page 10 / 10 170015 P 1200 US 120V POWER-AMP Pos. Nr. Best. Nr. Ref. No. Part No. Bezeichnung Description 00070 348853 SICHER T 20 A 250V fuse 20A slow blow 00090 302582 SICHER T 1 A 250V fuse 1A slow blow...
