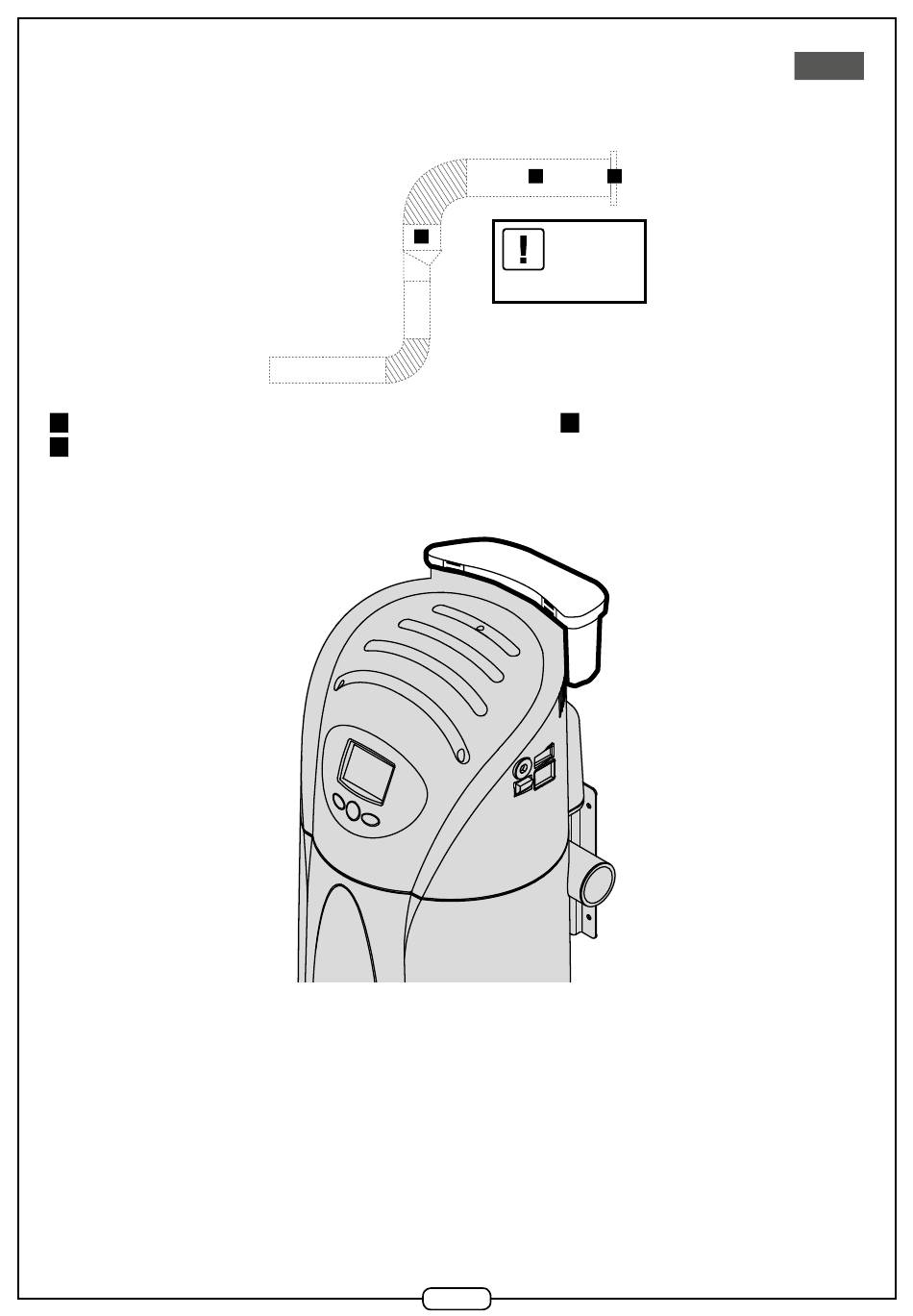

2.3. Connection to the exhaust ductwork
Whenever possible (type of unit and accommodation confi guration), we advise discharging the suction air outside the dwelling.
2 Diameter 100 mm passage on minimum 0.5 m in front of the grille using a reducing plug
3
Grille characteristics on façade: minimum 100 mm diameter with minimum air passage of 78 cm2
Please use the exhaust unit if the air cannot be discharged outside.
2.4. Electrical connection and commissioning
• Make sure that the tank is empty before commissioning.
• Plug the power lead into the 230V socket.
• Connect the 24 V lead to the suction inlets in the dwelling and/or on the suction plinth.
• Move the run button to ON.
• The machine is ready to use.
2
1
2 90° elbows max. 2 coudes 90° Max.
1
