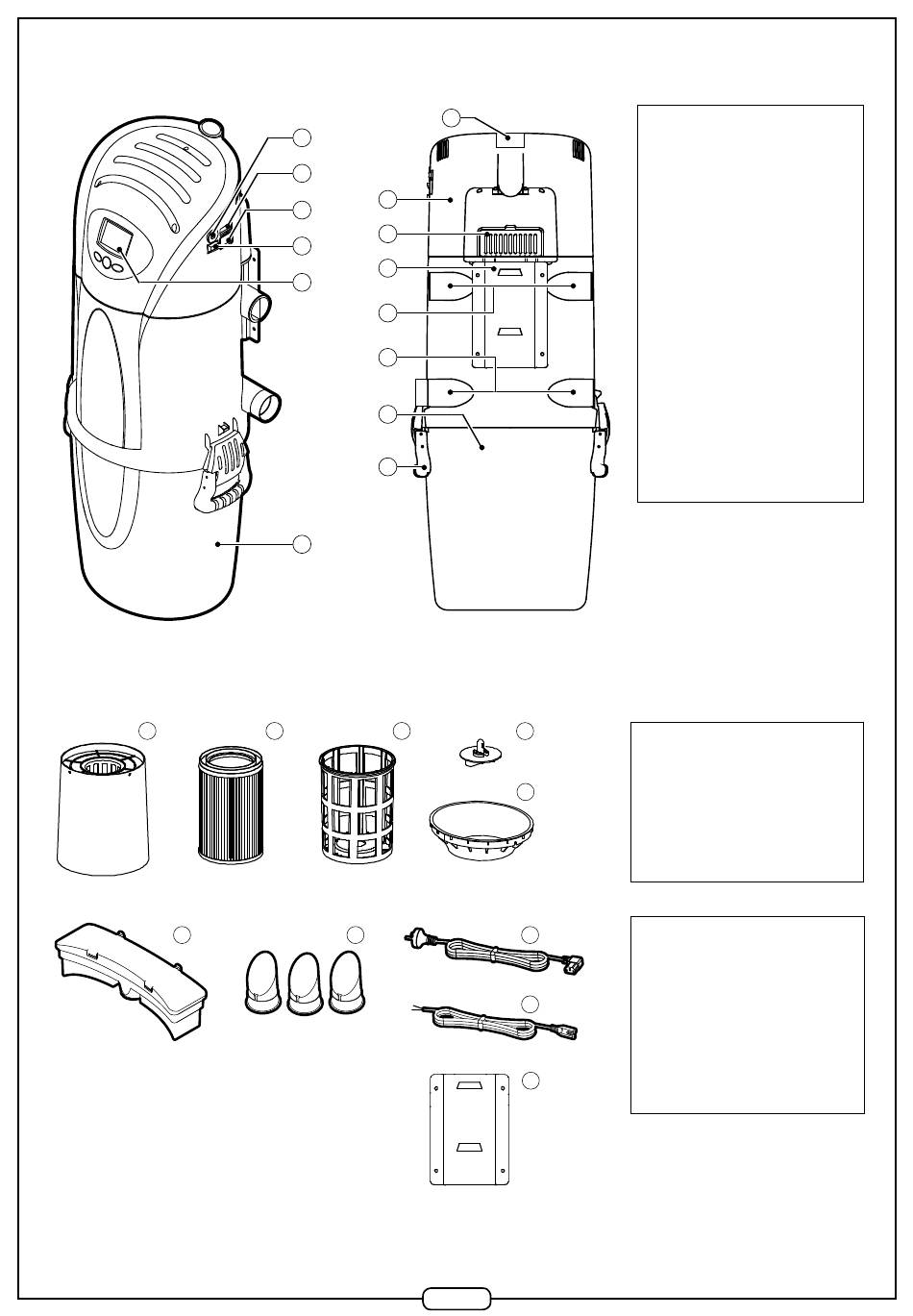

1.2. Product exploded view

1.3. Components and accessories

14
19
(1)
Only use if discharging to the outside is impossible.
(2)
To be inserted in unused air inlets.
1
2
8
3
9
4
10
5
11a
11b
12
13
6
15 16
20
7
17
18
21
22
23
14
CENTRALISED VACUUM
CLEANER
1. Circuit breaker
2. Power lead connection
3. Low voltage cable connection
4. Start/stop button
5. LCD (C.Axpir Digital) or LED
(C.Axpir Dynamic) control
panel
6. Tank
7. Exhaust air outlet
8. Motor chamber
9. Motor charcoal fi lter
10. Wall bracket
11a. Air inlets for cyclonic suction
11b. Air inlets for suction with bag
(bag system not supplied)
12. Cone for cyclonic suction
13. Tank handle
CYCLONIC FILTRATION
14. Filter cartridge bracket
15. HEPA F7 fi lter
16. PRO-TECTA fi lter
17. Filter holding cap
18. Cyclonic suction cone
ACCESSORIES
19. Exhaust unit with fi lters (1)
(2)
20. Air inlet plugs
21. 230 V power supply cable
22. 24 V power supply cable
(for connection to suction inlets
and to a crumb collection plinth)
23. Wall plate to hook the wall
bracket fi xed to the unit
