Electrical Connection

• Connect the hood to the mains through a
two-pole switch having a contact gap of at
least 3 mm.
• Remove the grease filters (see paragraph
Maintenance) being sure that the connec-
tor of the feeding cable is correctly inserted
in the socket placed on the side of the fan.

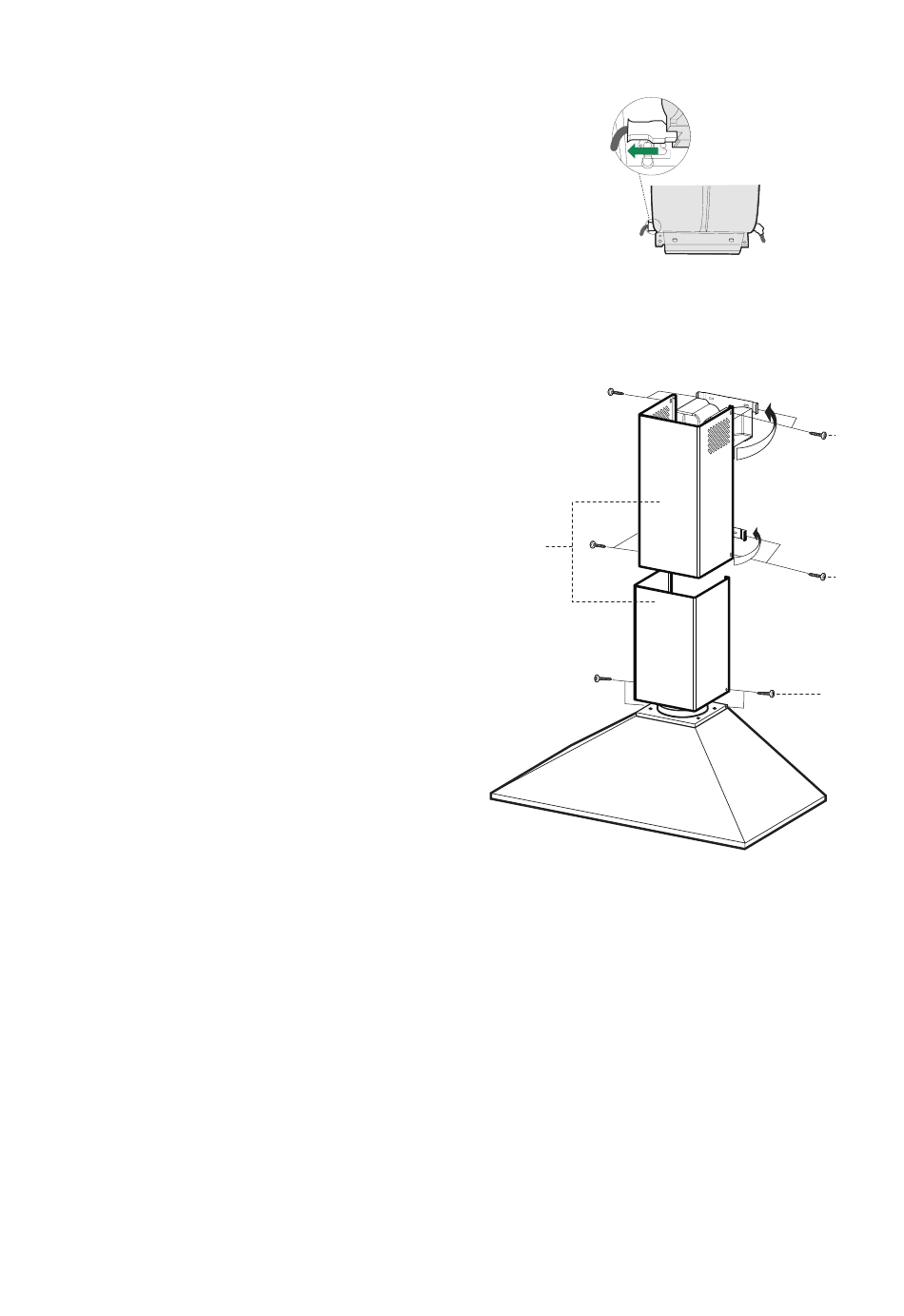

Chimney assembly
Upper Chimney
• Slightly widen the two sides of the upper
flue and hook them behind the brackets
7.3 and 7.2.1, making sure that they are
well seated.
• Secure the sides to the brackets using the
4 screws 12c (2,9 x 9,5) supplied.
• Make sure that the air outlet connection is
aligned with the chimney outlets.
Lower exhaust flue
• Slightly widen the two sides of the flue and
hook them between the upper flue and the
wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body
using the 2 screws 12c (2,9 x 9,5) sup-
plied.
2.1
2
2.2
ENGLISH 11
12c
12c
12c
