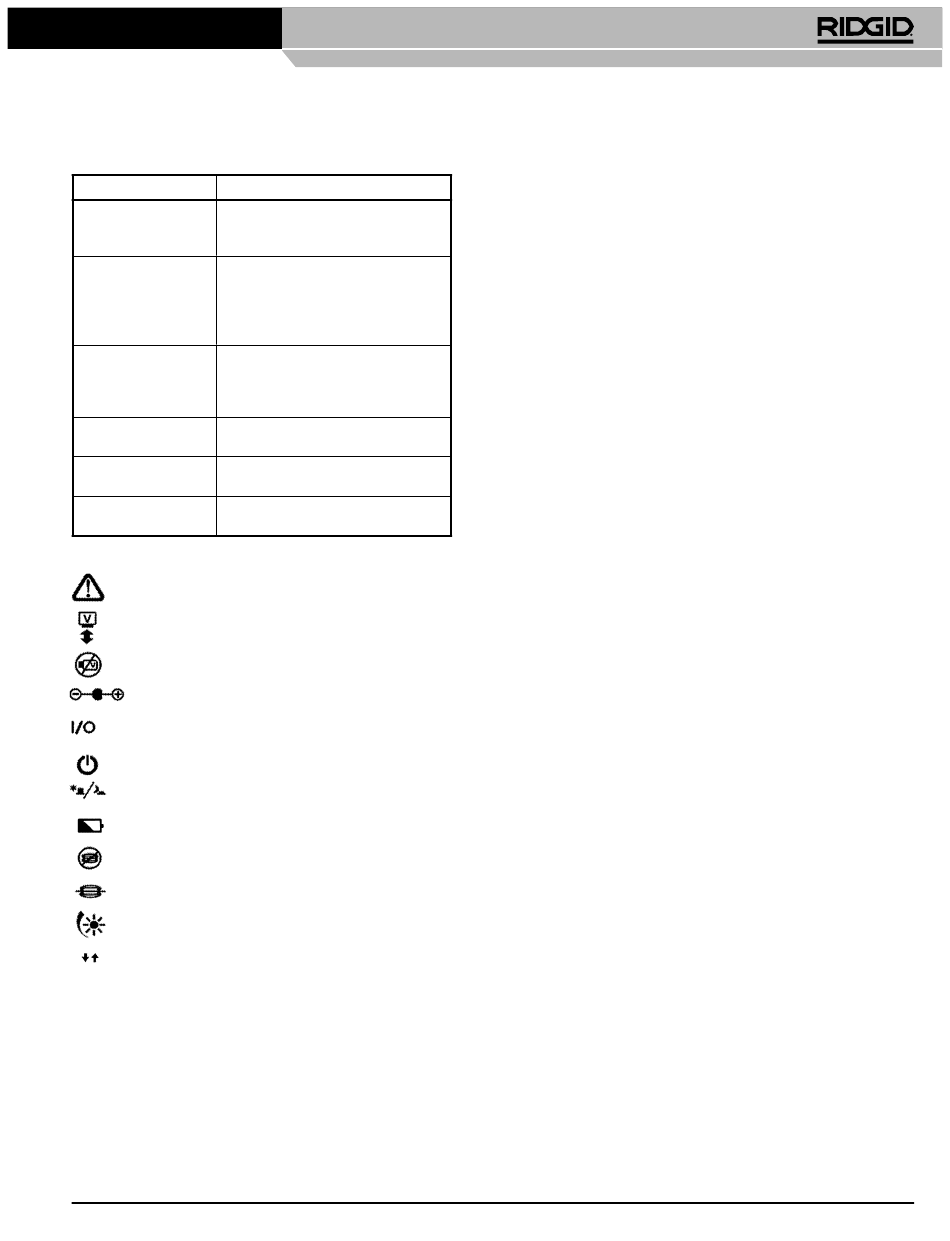

TROUBLESHOOTING

PROBLEM PROBABLE FAULT LOCATION
Garbled or jumbled video Fault within camera, cables, or CCU
SeeSnake Interconnect Cable connected
when playing back VCR
Lights, but no video Monitor's contrast and/or brightness turned
down
Break in video carrying conductor (pin/
socket 3) between Camera and CCU
Fault within camera or CCU
No video, no lights CCU or monitor screen not turned on
SeeSnake Interconnect Cable not fully
plugged in or loose connection in system
Fault in any sub-assembly
Video, but no lights Dimmer turned down
Fault within camera head, LED section
White screen Camera exposed to excessive light
Contrast/brightness improperly set
Noisy picture – vertical Camera head overheated
stripes on monitor screen
Icon Legend
Caution Symbol
Video In/Out Connector
No Video Signal
External Power Jack (14-16 VDC)
Power On/Off
Power On Led
Day/Night Switch
Battery Status
Transmitter De-activated
Transmitter Activated (LED)
Dimmer Status
Monitor Image Invert
SeeSnake Flatpack/Compact
Ridge Tool Company
5
