ANNEX B. User Interface mounting instructions

ANNEX B. User Interface mounting instructions
26

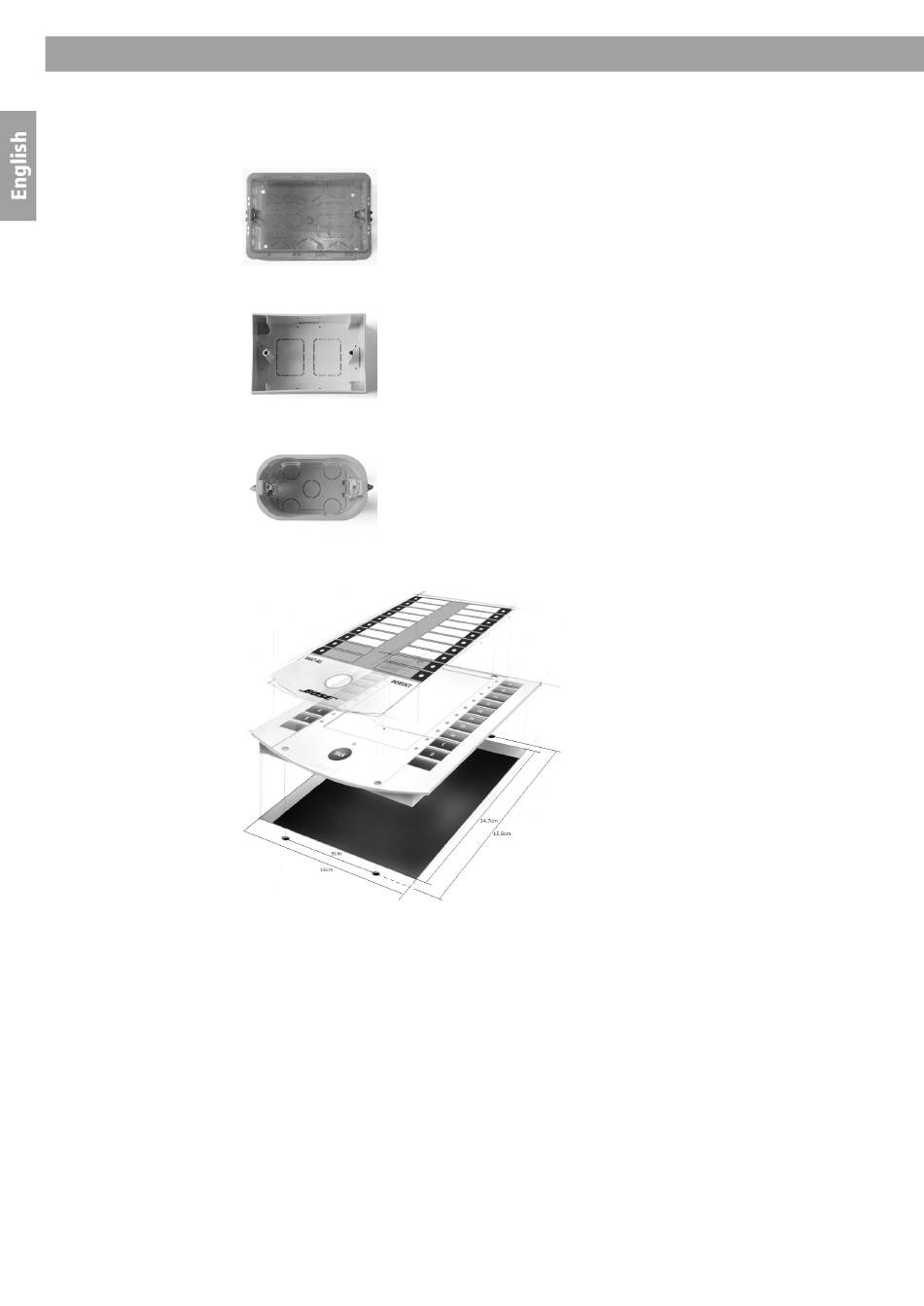

Flush mount box
The flush mount box is suitable for in-wall mounting of the ControlSpace
wall controller and ControlSpace AMS-8 local input module.
Dimensions (HxWxD): 7,1 x 10,6 x 5,2 cm
Surface mount box
The surface mount box is suitable for on-wall mounting of the ControlSpace
AMS-8 wall controller and ControlSpace AMS-8 local input module.
Dimensions (HxWxD): 8,0 x 11,4 x 4,6 cm
Dry lining box for plasterboard walls
Dry lining box for hollow or plasterboards walls for in-wall mounting of the
ControlSpace AMS-8 wall controller and ControlSpace
™
Dimensions (HxWxD): 6,6 x 12,4 x 5,2 cm
AMS-8 local input module.
™
Paging panel
Use these dimensions to mount the paging
panel into a desk or other. Mount a separate
XLR-connector (female) next to the paging panel,
which needs to be connected to the microphone
connection inside the paging panel. In order
to avoid any short circuit, remove the power
connection before mounting the paging panel.
AMS-8
™
™
