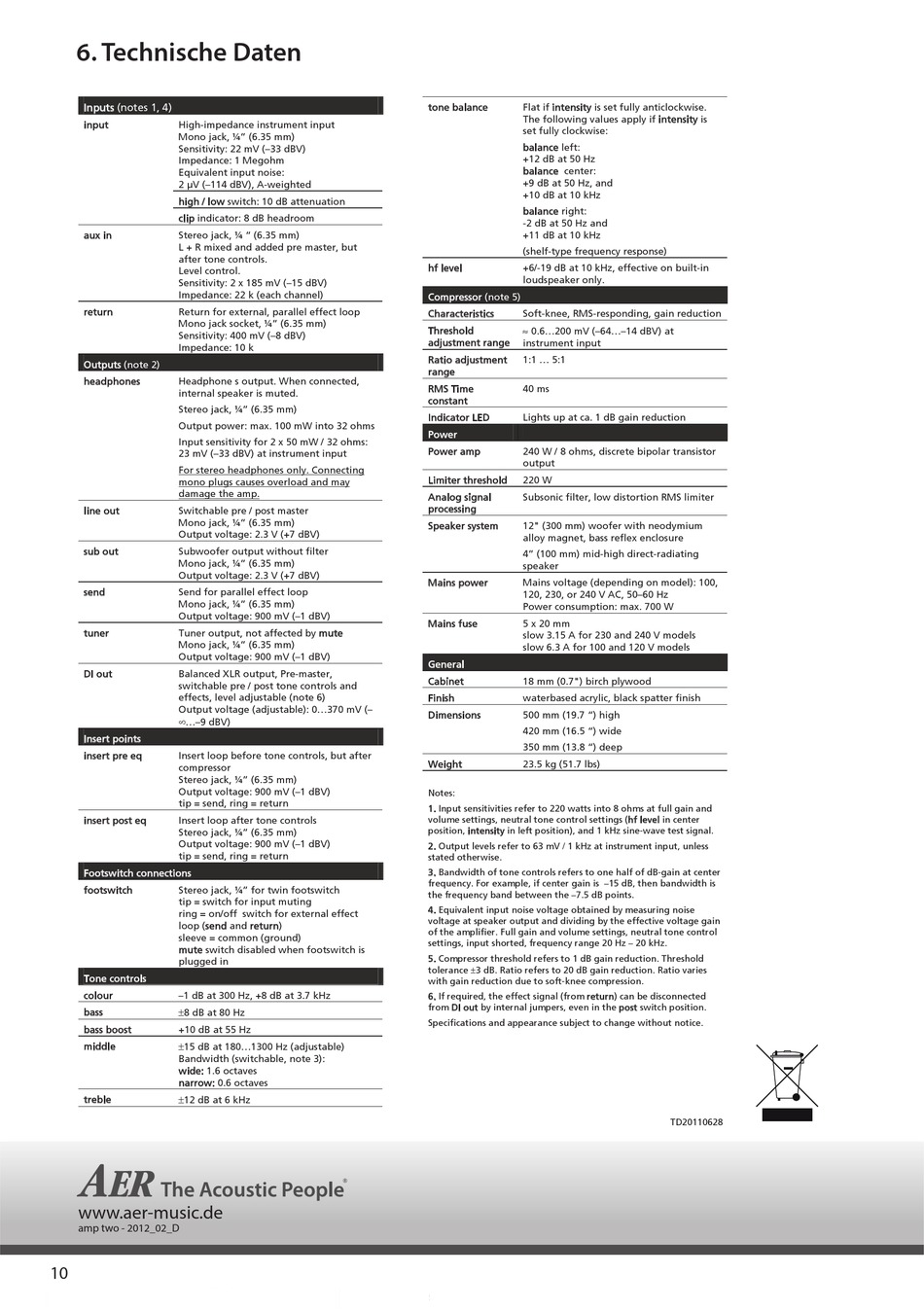

6. Technische Daten

Technical data
Inputs (notes 1, 4)
input High-impedance instrument input
Mono jack, ¼" (6.35 mm)
Sensitivity: 22 mV (–33 dBV)
Impedance: 1 Megohm
Equivalent input noise:
2 μV (–114 dBV), A-weighted
high / low switch: 10 dB attenuation
clip indicator: 8 dB headroom
aux in Stereo jack, ¼ " (6.35 mm)
L + R mixed and added pre master, but
after tone controls.
Level control.
Sensitivity: 2 x 185 mV (–15 dBV)
Impedance: 22 k (each channel)
return Return for external, parallel effect loop
Mono jack socket, ¼" (6.35 mm)
Sensitivity: 400 mV (–8 dBV)
Impedance: 10 k
Outputs (note 2)
headphones Headphone s output. When connected,
internal speaker is muted.
Stereo jack, ¼" (6.35 mm)
Output power: max. 100 mW into 32 ohms
Input sensitivity for 2 x 50 mW / 32 ohms:
23 mV (–33 dBV) at instrument input
For stereo headphones only. Connecting
mono plugs causes overload and may
damage the amp.
line out Switchable pre / post master
Mono jack, ¼" (6.35 mm)
Output voltage: 2.3 V (+7 dBV)
sub out Subwoofer output without filter
Mono jack, ¼" (6.35 mm)
Output voltage: 2.3 V (+7 dBV)
send Send for parallel effect loop
Mono jack, ¼" (6.35 mm)
Output voltage: 900 mV (–1 dBV)
tuner Tuner output, not affected by mute
Mono jack, ¼" (6.35 mm)
Output voltage: 900 mV (–1 dBV)
DI out Balanced XLR output, Pre-master,
switchable pre / post tone controls and
effects, level adjustable (note 6)
Output voltage (adjustable): 0...370 mV (–
...–9 dBV)
Insert points
insert pre eq Insert loop before tone controls, but after
compressor
Stereo jack, ¼" (6.35 mm)
Output voltage: 900 mV (–1 dBV)
tip = send, ring = return
insert post eq Insert loop after tone controls
Stereo jack, ¼" (6.35 mm)
Output voltage: 900 mV (–1 dBV)
tip = send, ring = return
Footswitch connections
footswitch Stereo jack, ¼" for twin footswitch
tip = switch for input muting
ring = on/off switch for external effect
loop (send and return)
sleeve = common (ground)
mute switch disabled when footswitch is
plugged in
Tone controls
colour –1 dB at 300 Hz, +8 dB at 3.7 kHz
8 dB at 80 Hz
bass
bass boost +10 dB at 55 Hz
15 dB at 180...1300 Hz (adjustable)
middle
Bandwidth (switchable, note 3):
wide: 1.6 octaves
narrow: 0.6 octaves
treble 12 dB at 6 kHz
www.aer-music.de
amp two - 2012_02_D
10
tone balance Flat if intensity is set fully anticlockwise.
The following values apply if intensity is
set fully clockwise:
balance left:
+12 dB at 50 Hz
balance center:
+9 dB at 50 Hz, and
+10 dB at 10 kHz
balance right:
-2 dB at 50 Hz and
+11 dB at 10 kHz
(shelf-type frequency response)
hf level +6/-19 dB at 10 kHz, effective on built-in
loudspeaker only.
Compressor (note 5)
Characteristics Soft-knee, RMS-responding, gain reduction
 0.6...200 mV (–64...–14 dBV) at
Threshold
adjustment range instrument input
Ratio adjustment 1:1 ... 5:1
range
RMS Time 40 ms
constant
Indicator LED Lights up at ca. 1 dB gain reduction
Power
Power amp 240 W / 8 ohms, discrete bipolar transistor
output
Limiter threshold 220 W
Analog signal Subsonic filter, low distortion RMS limiter
processing
Speaker system 12" (300 mm) woofer with neodymium
alloy magnet, bass reflex enclosure
4" (100 mm) mid-high direct-radiating
speaker
Mains power Mains voltage (depending on model): 100,
120, 230, or 240 V AC, 50–60 Hz
Power consumption: max. 700 W
Mains fuse 5 x 20 mm
slow 3.15 A for 230 and 240 V models
slow 6.3 A for 100 and 120 V models
General
Cabinet 18 mm (0.7") birch plywood
Finish waterbased acrylic, black spatter finish
Dimensions 500 mm (19.7 ") high
420 mm (16.5 ") wide
350 mm (13.8 ") deep
Weight 23.5 kg (51.7 lbs)
Notes:
1. Input sensitivities refer to 220 watts into 8 ohms at full gain and
volume settings, neutral tone control settings (hf level in center
position, intensity in left position), and 1 kHz sine-wave test signal.
2. Output levels refer to 63 mV / 1 kHz at instrument input, unless
stated otherwise.
3. Bandwidth of tone controls refers to one half of dB-gain at center
frequency. For example, if center gain is –15 dB, then bandwidth is
the frequency band between the –7.5 dB points.
4. Equivalent input noise voltage obtained by measuring noise
voltage at speaker output and dividing by the effective voltage gain
of the amplifier. Full gain and volume settings, neutral tone control
settings, input shorted, frequency range 20 Hz – 20 kHz.
5. Compressor threshold refers to 1 dB gain reduction. Threshold
tolerance 3 dB. Ratio refers to 20 dB gain reduction. Ratio varies
with gain reduction due to soft-knee compression.
6. If required, the effect signal (from return) can be disconnected
from DI out by internal jumpers, even in the post switch position.
Specifications and appearance subject to change without notice.
TD20110628
