General information

• All KaWe examination lights are delivered with all of the parts re-
quired for assembly and connection.
• In order to reduce the packaging volume, the five-footed base of the
floor stand comes disassembled. The stand post is always assembled
as one piece and must only be attached to the base with its lower
fastening screw.
• The KaWe examination light (stand post or cross arm) is equipped
with an integrated power cord and safety plug.
• The electrical outlet used must be installed according to IEC and VDE
0107 regulations.
• Check to see if there is a Schuko electrical outlet within the operating
range of the light.

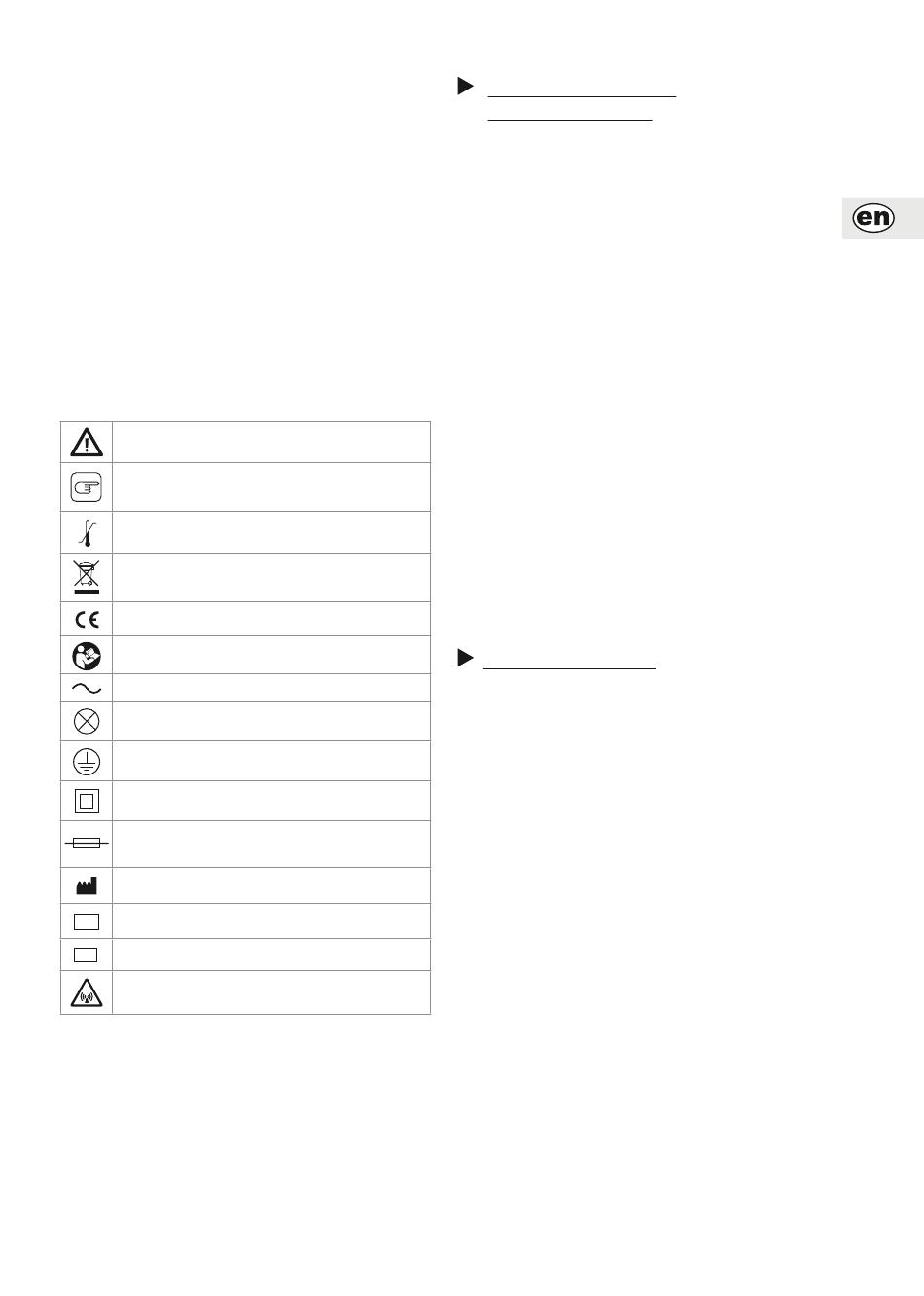

Symbol key:
Caution!
This symbol informs of important assembly instructions,
useful information and user's tips
Temperature limit
Separate disposal of electric
and electronic devices
Complies with relevant EU guidelines
Heed the User's Manual
Alternating current
Bulb
Protective earth connection
Protection class II
Fuse
Manufacturer
Series number
SN
Product reference number
REF
Non-ionizing radiation
2. SHORT DESCRIPTION OF THE
KaWe EXAMINATION LIGHT
Information about intended use: The KaWe examination lights
were developed to illuminate the area of the patient's body being
examined during medical examinations in hospitals and doctors'
practices.
Main function: The KaWe examination light serves to illuminate
an area of a patient's body that is to be examined with high-power,
shadow-free light.

General product description

• This is a KaWe examination light as described in EN 60601-2-41,
which as individual luminaries, are not failsafe.
• The KaWe examination light is intended to aid in treatment and di-
agnosis.
• The KaWe examination light is used in areas used for medical rea-
sons (group 0, 1 and 2 according to DIN VDE 0100-710 and HD
60364-7-710).
• The lights are mounted on a stand.
• The KaWe examination lights are to be serviced every 2 years.
• The light is powered via an electrical cord and plug

3. ASSEMBLY INSTRUCTIONS

Parts included:

• 1x Stand mounting block
• 2x Foot piece with lockable castors
• 3x Foot pieces without lockable castors
• 1x Stand post
• 1x Stand cap
• 1x Fillister head screw M8 with washer
• 1x Flat spanner wrench
• Light body with arm
• User's manual for the MASTERLIGHT® Examination Lamp LED, 7W
13
