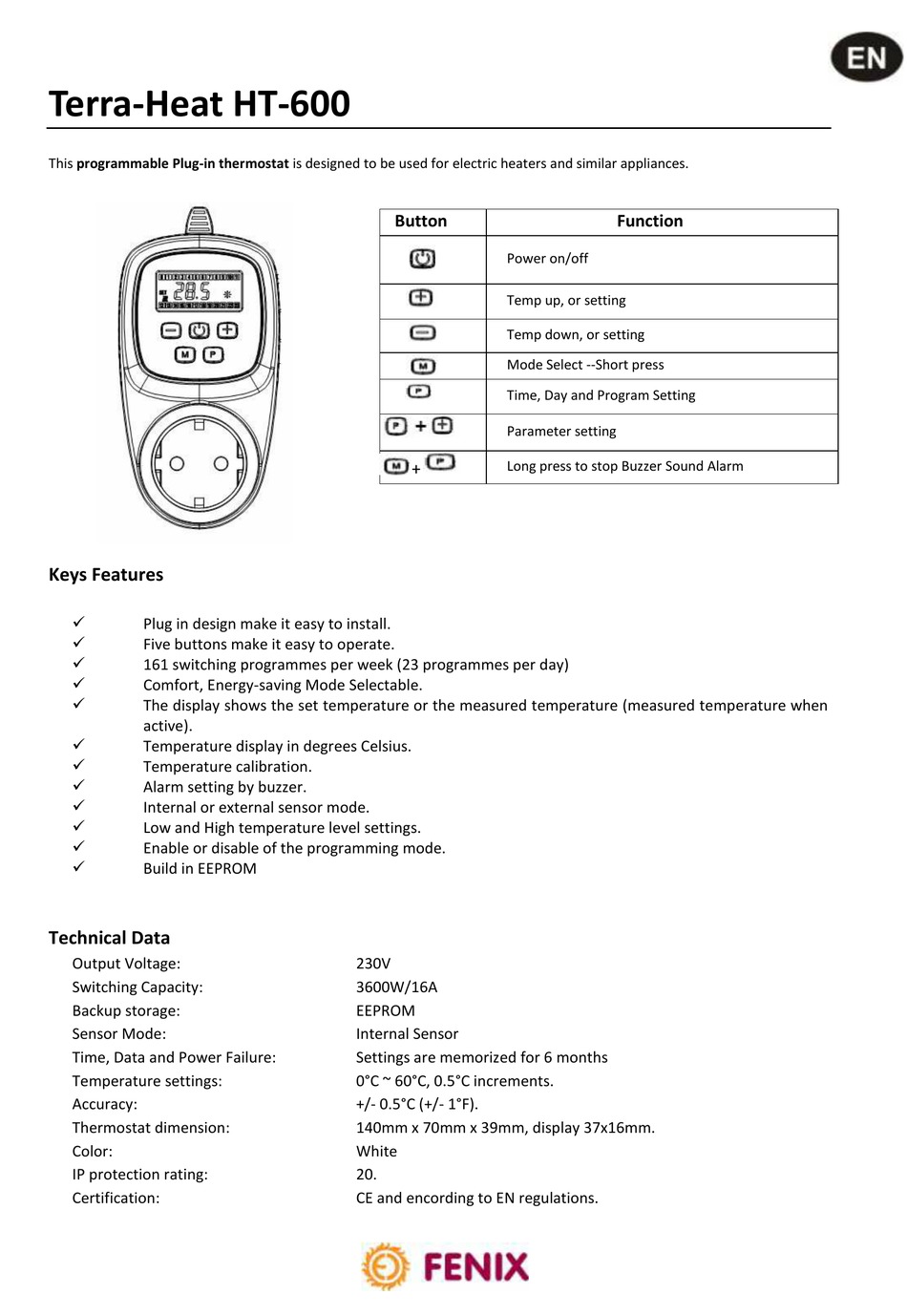

Terra-Heat HT-600
This programmable Plug-in thermostat is designed to be used for electric heaters and similar appliances.
Keys Features

Plug in design make it easy to install.

Five buttons make it easy to operate.

161 switching programmes per week (23 programmes per day)

Comfort, Energy-saving Mode Selectable.

The display shows the set temperature or the measured temperature (measured temperature when
active).

Temperature display in degrees Celsius.

Temperature calibration.

Alarm setting by buzzer.

Internal or external sensor mode.

Low and High temperature level settings.

Enable or disable of the programming mode.

Build in EEPROM

Technical Data

Output Voltage:
Switching Capacity:
Backup storage:
Sensor Mode:
Time, Data and Power Failure:
Temperature settings:
Accuracy:
Thermostat dimension:
Color:
IP protection rating:
Certification:
Button
Power on/off
Temp up, or setting
Temp down, or setting
Mode Select --Short press
Time, Day and Program Setting
Parameter setting
Long press to stop Buzzer Sound Alarm
+
230V
3600W/16A
EEPROM
Internal Sensor
Settings are memorized for 6 months
0°C ~ 60°C, 0.5°C increments.
+/- 0.5°C (+/- 1°F).
140mm x 70mm x 39mm, display 37x16mm.
White
20.
CE and encording to EN regulations.
Function
