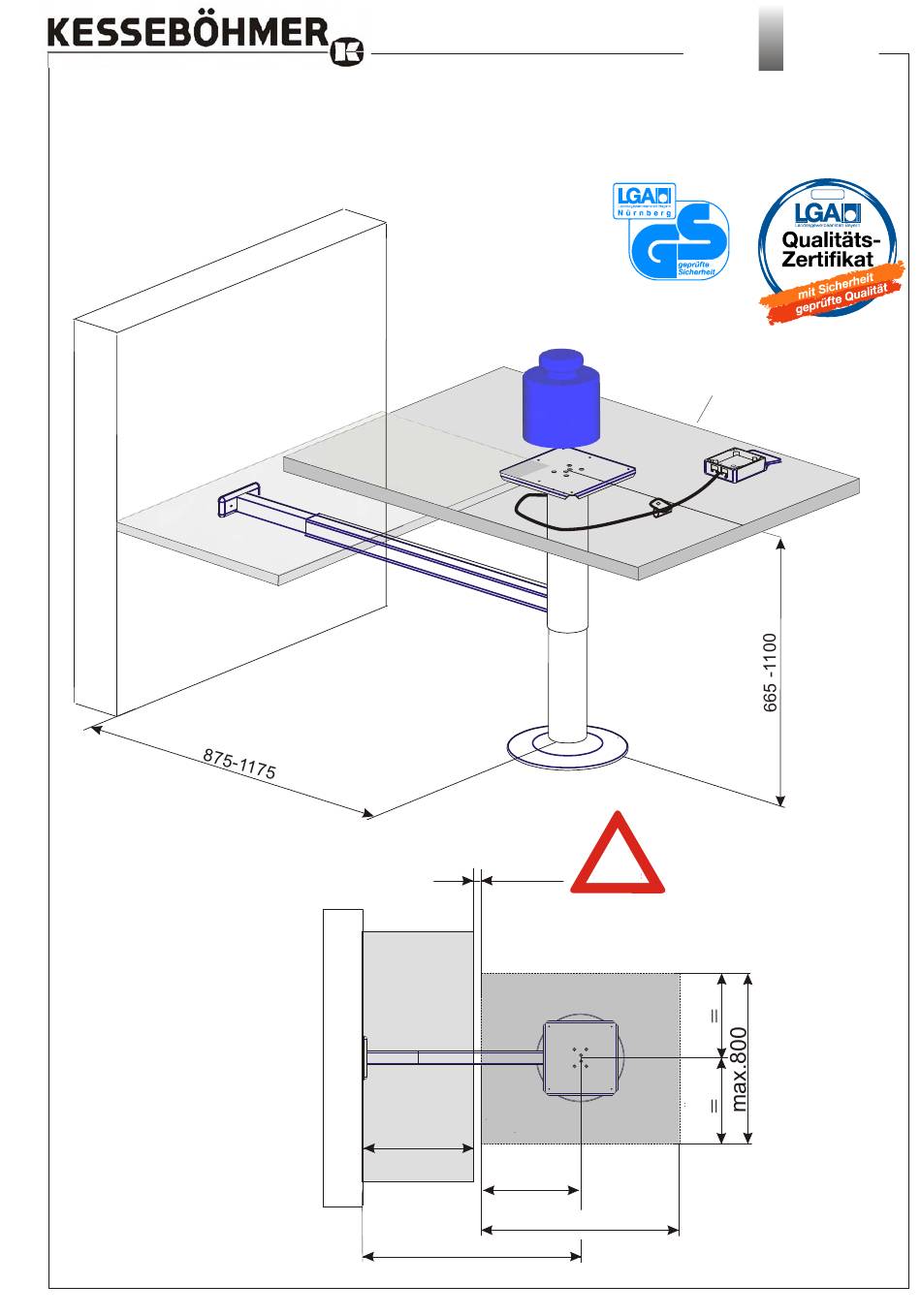

TOP-MOTION Montageanleitung für den Steh-Sitz-Tisch “TOP MOTION” mit teleskopierbarer Traverse Mounting Instruction for sit-/stand table with telescopic tie bar 18-25 kg Plattengewicht weight of worktop max. 30kg > _ Hinweis sollte nach längerem Gebrauch die Säule nicht mehr ganz einfahren, muß...
Seite 2
TOP-MOTION M8x20 sw 5 M8x30 sw 5 M8x30 M8x20 MA 401185 0000 / 749005102 S.2 von 9 06.04.2005...
Seite 3
TOP-MOTION Montage darf nur an festen Wänden mit ausreichender Stabilität erfolgen Installation is only recommended to walls with sufficient stability X=(A+ +25) MA 401185 0000 / 749005102 S.3 von 9 06.04.2005...
Seite 4
TOP-MOTION ACHTUNG: Schrauben und Dübel müssen nach Wandbeschaffenheit ausgewählt werden (nicht im Lieferumfang)! Attention: Choose screws and dowels suitable to the condition of wall (are not included) 30sec M6x6 Ø140 sw 4 MA 401185 0000 / 749005102 S.4 von 9...
Seite 5
TOP-MOTION Ø150 sw 5 sw 5 MA 401185 0000 / 749005102 S.5 von 9 06.04.2005...
Seite 6
TOP-MOTION M8x12 M8x12 M8x12 sw 5 M6x10 sw 4 MA 401185 0000 / 749005102 S.6 von 9 06.04.2005...
Seite 7
TOP-MOTION M6x6 M5x50 M6x6 sw 4 Transportsicherung entfernen ! transportation lock - please remove after assembly ! fermeture de transport doit etre enlevée après l`assemblage ! MA 401185 0000 / 749005102 S.7 von 9 06.04.2005...
Seite 8
TOP-MOTION MA 401185 0000 / 749005102 S.8 von 9 06.04.2005...
Seite 9
TOP-MOTION MA 401185 0000 / 749005102 S.9 von 9 06.04.2005...
